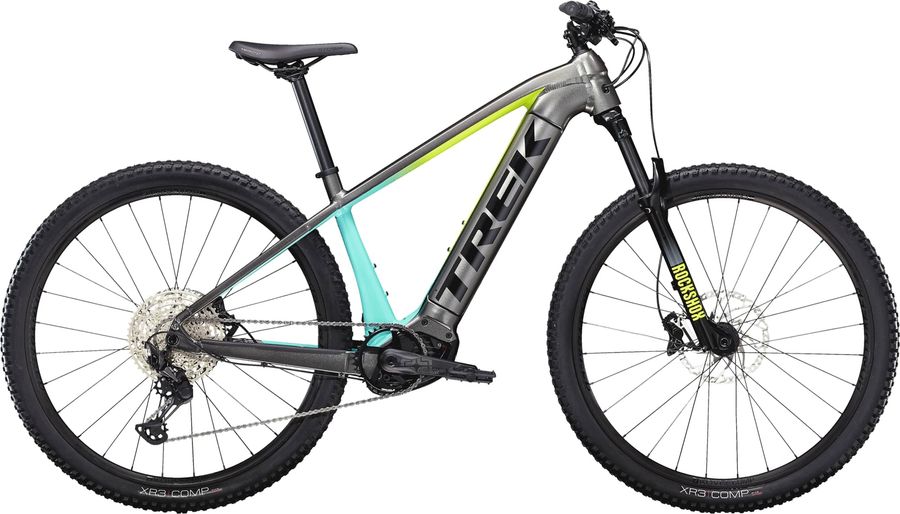

Trek Powerfly 5 2022

E-Bike

MTB Cross Country

Groupset

Shimano XT

Frame material

Alloy

Wheel size

27,5" / 29"

Suspension type

Hardtail

Weight

22,94 kg

Front travel

80mm

About the Trek Powerfly 5 2022

The Trek Powerfly 5 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 22,94 kg.

Features

The Trek Powerfly 5 2022 has 7 features listed below.

Internal routing More info

Boost 110 More info

Boost 148 More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Components
Steam	Size: XS, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length; Size: S, M, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length; Size: L, XL, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Saddle	Bontrager Commuter Comp
Seatpost	Size: XS, S, Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length; Size: M, Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length; Size: L, XL, Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar	Size: XS, S, Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width; Size: M, L, XL, Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Discs	Size: XS, S, Shimano RT66, 6-bolt, 180mm; Size: XS, S, M, L, XL, Shimano RT66, 6-bolt, 203 mm
Brakes	Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black (SHIMANO logo) Hose joint Straight J-Kit spec for OEM Model BR-MT410 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Piston 2 Piston material Resin Recommended disc brake rotor SM-RT30* SM-RT54* SM-RT56*

Drivetrain
Crankset	Ethirteen Espec Plus, 34T, 165 mm length
Shifter	Shimano Deore M6100, 12-speed
Rear derailleur	Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g) 284 B axle hollow B axle material Stainless steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG 12-speed Lower pulley max 51T Lower pulley min 51T Model RD-M8100-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 12 Upper pulley max 10T Upper pulley min 10T Total capacity 41T
Chain	Shimano CN-M6100 252 g
Average weight (g) 252 Chromizing treatment roller link pin Model CN-M6100 Pin link plate Gray Roller link plate Brown Type HG 12-speed
Cassette	Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish Painted Aluminum spider arm pieces 1 Combination names 10-51T Compatible chain HG 12-speed Lock ring finish Plated Lock ring material Steel Model CS-M6100-12 Steel gear finish Plated Steel gear pieces 12 Type HYPERGLIDE+

Frameset
Frame	Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148
Front suspension	RockShox Recon Silver RL Solo Air
Color Diffusion Black, Gloss Black Damper type Motion Control fork offset 37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29") Max tire width (mm) 62, 81 Maximum rotor size 220mm Minimum rotor size 160mm Model FS-RCNS-RL-D1 Name Recon Silver RL Spring Solo Air Travel (mm) 100mm, 120mm, 130mm, 140mm, 150mm Upper tube type 32mm straight wall steel Wheel size 27.5", 29"

Wheels
Rims	Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires	Bontrager XR3 Comp, wire bead, 30 tpi, 29x2.30"
Rear hub	Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Front hub	Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 12

Crank: 34T

Cassette: 10-51T

Speeds: 12s

Gearing

Average

0,67

Average

3,4

Compared to similar bikes, the Trek Powerfly 5 2022 has a good uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	13.5"	15.5"	17.5"	19.5"	21.5"
a Seat tube length	363,0	394,0	419,0	470,0	521,0
b Seat tube angle	70,0º	71,5º	71,7º	71,7º	71,7º
c Top tube length	576,0	595,0	614,0	638,0	669,0
d Head tube length	120,0	130,0	130,0	140,0	160,0
e Head tube angle	65,0º	67,6º	67,7º	67,7º	67,7º
f Rake	52,0	43,0	51,0	51,0	51,0
g Trail	114,0	101,0	98,0	98,0	98,0
h Wheelbase	1132,0	1122,0	1152,0	1177,0	1209,0
i Chainstay length	452,0	452,0	452,0	452,0	452,0
j Bottom bracket drop	37,0	49,0	49,0	50,0	50,0
k Stack height	618,0	620,0	636,0	645,0	664,0
l Reach	349,0	387,0	403,0	424,0	449,0
m Standover height	703,0	718,0	791,0	813,0	815,0
x Bottom bracket height	328,0	307,0	324,0	324,0	324,0
y Front center	683,0	674,0	704,0	729,0	761,0
