Trek Powerfly 7 FS Plus 2018

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,16 kg
Front travel
130mm
Rear travel
130mm

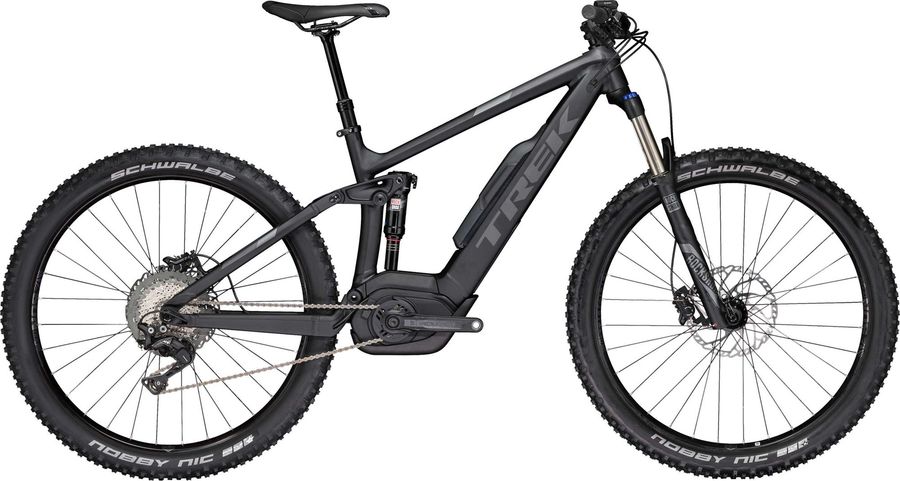

Trek Powerfly 7 FS Plus 2018

About the Trek Powerfly 7 FS Plus 2018

The Trek Powerfly 7 FS Plus 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 23,16 kg.

Features

The Trek Powerfly 7 FS Plus 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Bontrager Race Lite, lock-on
Pedals
Wellgo nylon platform
Components
Steam
Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 degree, 60mm length
Saddle
Bontrager Evoke 2, chromoly rails
Battery
Bosch Powerpack Performance 500 downtube
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8˝ top, 1.5˝ bottom
Seatpost
Dropper post, Bontrager lever, 31.6mm, internal routing
Handlebar
Bontrager alloy, 31.8mm, 5mm rise, 750mm width
Brake lever
Shimano Deore M6000
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Crankset
Race Aeffect, 15T w/chainguard
Motor
Bosch Performance CX, 250 watt, 75Nm
Shifter
Shimano SLX M7000, 11 speed
Chain guide
Race Face
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Alpha Platinum Aluminum, ABP, EVO link, E2 tapered head tube, Knock Block, internal derailleur & dropper post routing, integrated battery, G2 Geometry, Boost148, 130mm travel
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
SUNringlé Duroc 40 SL 32-hole, tubeless strips and valves included
Tires
Schwalbe Nobby Nic Performance w/Addix compound, Tubeless, 27.5x2.80˝
Rear hub
Bontrager sealed bearing alloy axle, Boost148
Front hub
Bontrager sealed bearing, alloy axle, Boost110

Geometry

Size 15.5" 17.5" 18.5" 19.5" 21.5"
a
Seat tube length
368,0
419,0
445,0
470,0
521,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
572,0
602,0
622,0
636,0
664,0
d
Head tube length
100,0
100,0
105,0
110,0
125,0
e
Head tube angle
66,9º
66,9º
66,9º
66,9º
66,9º
f
Rake
51,0
51,0
52,0
52,0
53,0
g
Trail
88,0
89,0
89,0
89,0
89,0
h
Wheelbase
1179,0
1209,0
1230,0
1245,0
1275,0
i
Chainstay length
476,0
476,0
476,0
476,0
476,0
j
Bottom bracket drop
24,0
24,0
24,0
24,0
24,0
k
Stack height
596,0
595,0
600,0
604,0
618,0
l
Reach
407,0
437,0
455,0
468,0
492,0
m
Standover height
762,0
742,0
737,0
732,0
742,0
x
Bottom bracket height
332,0
332,0
332,0
332,0
332,0
y
Front center
704,0
734,0
755,0
770,0
800,0
