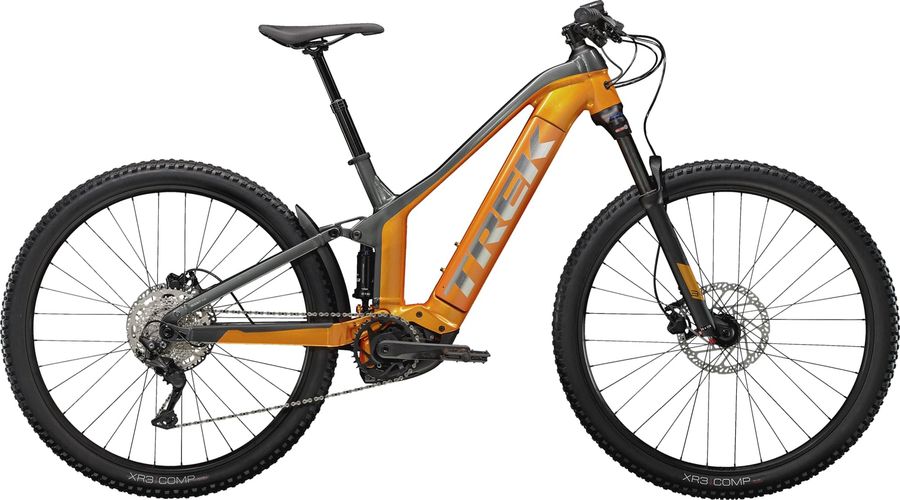

Trek Powerfly FS 4 2022

E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
24,83 kg
Front travel
100mm
Rear travel
100mm
Price
$3,999.99
Trek Powerfly FS 4 2022

About the Trek Powerfly FS 4 2022

The Trek Powerfly FS 4 2022 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 24,83 kg.


Features

The Trek Powerfly FS 4 2022 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Bontrager XR Trail Comp, nylon lock-on
Components
Steam
Size: XS, S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, L, XL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
Saddle
Bontrager Arvada, steel rails, 138mm width
Battery
Bosch PowerTube 500
Charger
Bosch compact 2A (100-240V) charger
Seatpost
Size: XS, S, M, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Discs
Tektro, 6-bolt, 203mm
Brakes
Tektro HD-M275
Drivetrain
Crankset
FSA Bosch CK-220, 36T ring, 165mm length
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
Shifter
Shimano Deore M4100, 10 speed
Bottom bracket
Bosch, press-fit
Chain
KMC X10
Rear derailleur
Shimano Deore RD-M5120 SGS 11/10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Lower pulley max
46T (1x11/1x10-speed)
42T (2x11/2x10-speed)
Lower pulley min
42T
Model
RD-M5120-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
11/10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armor, magnesium rocker link, rack and fender mount, ABP, Boost148, 100mm travel
Rear suspension
SR Suntour Edge R
Front suspension
SR Suntour XCR 34 AIR
Wheels
Rims
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
Tires
Size: XS, S, Bontrager XR3 Comp, wire bead, 30tpi, 27.5x2.35''; Size: M, L, XL, Bontrager XR3 Comp, wire bead, 30tpi, 29x2.30''
Spokes
14g stainless steel
Rear hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle
Front hub
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

Geometry

Size 14.5" 15.5" 17.5" 19.5" 21.5"
a
Seat tube length
368,0
395,0
420,0
450,0
500,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
76,0º
c
Top tube length
556,0
566,0
591,0
623,0
648,0
d
Head tube length
140,0
140,0
130,0
140,0
140,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
107,0
107,0
114,0
114,0
114,0
h
Wheelbase
1172,0
1182,0
1208,0
1242,0
1267,0
i
Chainstay length
470,0
470,0
472,0
472,0
472,0
j
Bottom bracket drop
24,0
24,0
39,0
39,0
39,0
k
Stack height
601,0
601,0
639,0
648,0
648,0
l
Reach
407,0
417,0
432,0
462,0
487,0
m
Standover height
693,0
693,0
714,0
718,0
715,0
x
Bottom bracket height
332,0
332,0
335,0
335,0
335,0
y
Front center
703,0
713,0
739,0
773,0
798,0
