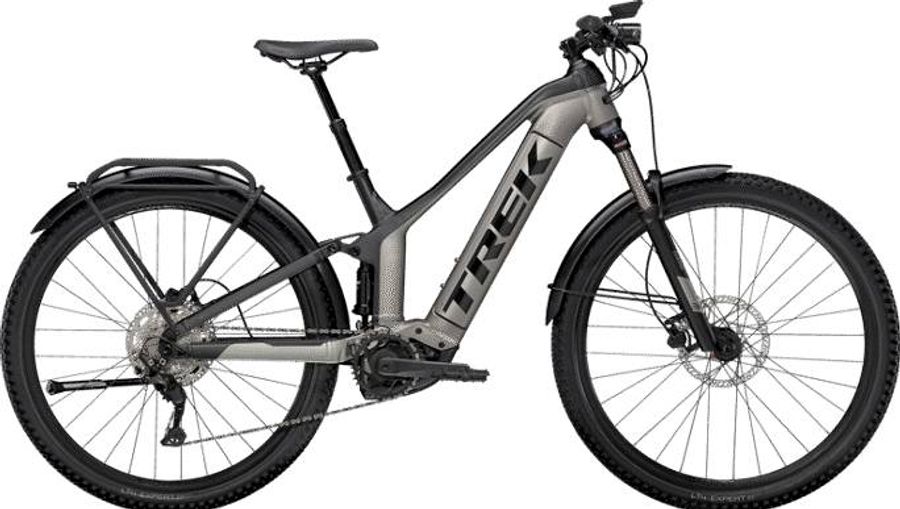

Trek Powerfly FS 4 Equipped 2021
The Trek Powerfly FS 4 Equipped 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
27,22 kg
Front travel
120mm
Rear travel
100mm
About the Trek Powerfly FS 4 Equipped 2021
The Trek Powerfly FS 4 Equipped 2021 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 27,22 kg.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Bontrager XR Endurance Comp, lock-on
|
|---|---|
|
Pedals
|
VP-536 nylon platform
|
|
Steam
|
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree
|
|---|---|
|
Saddle
|
Bontrager Commuter Comp, 165mm width
|
|
Battery
|
Bosch PowerTube 625
|
|
Seatpost
|
TranzX JD-YSP18 dropper, internal routing, 31.6mm
|
|
Handlebar
|
Bontrager alloy, 31.8mm, 15mm rise
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
FSA Bosch CK-220, 36T ring
|
|---|---|
|
Motor
|
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25km/h
|
|
Shifter
|
Shimano Deore M4100, 10 speed
|
|
Chain
|
KMC X10
|
|
Rear derailleur
|
Shimano Deore RD-M5120
SGS
11/10s
|
|
42T (2x11/2x10-speed) |
|
|
Cassette
|
Shimano Deore CS-M4100-10
HG
|
|
11-46T |
|
|
Frame
|
Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Knock Block, internal routing, Motor Armor, magnesium rocker link, rack and fender mount, ABP, Boost148, 100mm travel
|
|---|---|
|
Front suspension
|
SR Suntour XCR 34 AIR
|
|
Rims
|
Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve
|
|---|---|
|
Tires
|
Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40"
|
|
Rear hub
|
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle
|
|
Front hub
|
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
|
Geometry
| Size | 14.5" | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
395,0
|
420,0
|
450,0
|
500,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
556,0
|
566,0
|
591,0
|
623,0
|
648,0
|
|
d
Head tube length
|
140,0
|
140,0
|
130,0
|
140,0
|
140,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
107,0
|
107,0
|
114,0
|
114,0
|
114,0
|
|
h
Wheelbase
|
1172,0
|
1182,0
|
1208,0
|
1242,0
|
1267,0
|
|
i
Chainstay length
|
470,0
|
470,0
|
472,0
|
472,0
|
472,0
|
|
j
Bottom bracket drop
|
24,0
|
24,0
|
39,0
|
39,0
|
39,0
|
|
k
Stack height
|
601,0
|
601,0
|
639,0
|
648,0
|
648,0
|
|
l
Reach
|
407,0
|
417,0
|
432,0
|
462,0
|
487,0
|
|
m
Standover height
|
693,0
|
693,0
|
714,0
|
718,0
|
715,0
|
|
x
Bottom bracket height
|
332,0
|
332,0
|
335,0
|
335,0
|
335,0
|
|
y
Front center
|
703,0
|
713,0
|
739,0
|
773,0
|
798,0
|
