BikeWise

Trek Powerfly FS 4 G2 2020

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

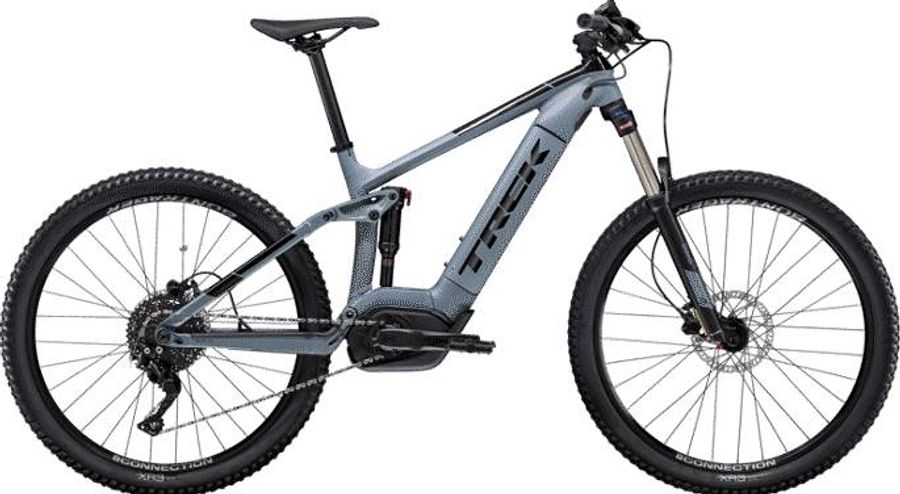

Trek Powerfly FS 4 G2 2020

About the Trek Powerfly FS 4 G2 2020

The Trek Powerfly FS 4 G2 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, boost 110 , and boost 148.

Features

The Trek Powerfly FS 4 G2 2020 has 6 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Bontrager XR Trail Comp, nylon lock-on
Components
Steam
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length
Saddle
Bontrager Arvada, steel rails, 138 mm width
Battery
Bosch PowerTube, vertical, 500 wh
Charger
Bosch compact 2A (100-240 V) charger
Seatpost
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Discs
Tektro, 180 mm, 6-bolt
Brakes
Tektro HD-M275
Drivetrain
Crankset
FSA 310, 15T w/chain guard, 170 mm length
Motor
Bosch Performance CX, 250 Watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Shifter
Shimano Deore M6000, 10-speed
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Sunrace MS3 11-42T 10-speed
Frameset
Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, Motor Armor, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Front suspension
SR Suntour XCR-34
Wheels
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.35"
Spokes
NA
Rear hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Front hub
Formula DC-511, 6-bolt, Boost110, 15 mm thru axle

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
368,0
368,0
419,0
419,0
445,0
445,0
470,0
470,0
521,0
521,0
b
Seat tube angle
74,9º
74,4º
74,8º
74,4º
74,8º
74,4º
74,8º
74,3º
74,8º
74,3º
c
Top tube length
572,0
572,0
602,0
602,0
622,0
622,0
636,0
636,0
664,0
664,0
d
Head tube length
100,0
100,0
100,0
100,0
105,0
105,0
110,0
110,0
125,0
125,0
e
Head tube angle
67,4º
66,9º
67,4º
66,9º
67,4º
66,9º
67,4º
66,9º
67,4º
66,9º
f
Rake
61,0
51,0
56,0
51,0
49,0
52,0
52,0
52,0
51,0
53,0
g
Trail
93,0
96,0
93,0
96,0
93,0
96,0
93,0
96,0
93,0
96,0
h
Wheelbase
1178,0
1179,0
1209,0
1209,0
1229,0
1230,0
1244,0
1245,0
1274,0
1275,0
i
Chainstay length
476,0
476,0
476,0
476,0
476,0
476,0
476,0
476,0
476,0
476,0
j
Bottom bracket drop
18,0
24,0
18,0
24,0
18,0
24,0
18,0
24,0
18,0
24,0
k
Stack height
591,0
596,0
590,0
595,0
594,0
600,0
594,0
604,0
611,0
618,0
l
Reach
401,0
407,0
437,0
437,0
463,0
455,0
475,0
468,0
499,0
492,0
m
Standover height
772,0
767,0
762,0
757,0
750,0
745,0
748,0
743,0
760,0
755,0
x
Bottom bracket height
333,0
327,0
333,0
327,0
333,0
327,0
333,0
327,0
333,0
327,0
y
Front center
703,0
704,0
734,0
734,0
754,0
755,0
769,0
770,0
799,0
800,0
