Trek Powerfly FS 7 2022

E-Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
24,37 kg
Front travel
100mm
Rear travel
100mm

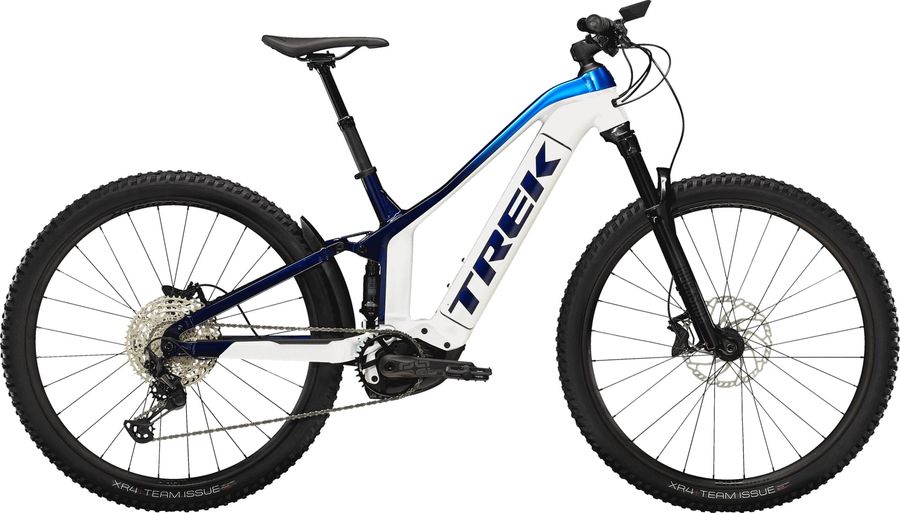

Trek Powerfly FS 7 2022

About the Trek Powerfly FS 7 2022

The Trek Powerfly FS 7 2022 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 24,37 kg.

Features

The Trek Powerfly FS 7 2022 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Comp, nylon lock-on
Components
Steam
Size: XS, S, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length; Size: M, L, XL, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Saddle
Bontrager Arvada, steel rails, 138 mm width
Battery
Bosch PowerTube 625
Charger
Bosch standard 4A (220-240 V) charger
Seatpost
Size: XS, S, M, TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length; Size: L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Discs
Shimano RT66, 6-bolt, 203 mm
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
E*thirteen E*spec Plus, 34T, 165 mm length
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armour, magnesium rocker link, rack and mudguard mount, ABP, Boost148, 100 mm travel
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
Bontrager Line 30, Tubeless Ready, 28-hole, Presta valve
Spokes
DT Swiss Champion, J-Bend, Black
Rear hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Geometry

Size 14.5" 15.5" 17.5" 19.5" 21.5"
a
Seat tube length
368,0
395,0
420,0
450,0
500,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
76,0º
c
Top tube length
556,0
566,0
591,0
623,0
648,0
d
Head tube length
140,0
140,0
130,0
140,0
140,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
107,0
107,0
114,0
114,0
114,0
h
Wheelbase
1172,0
1182,0
1208,0
1242,0
1267,0
i
Chainstay length
470,0
470,0
472,0
472,0
472,0
j
Bottom bracket drop
24,0
24,0
39,0
39,0
39,0
k
Stack height
601,0
601,0
639,0
648,0
648,0
l
Reach
407,0
417,0
432,0
462,0
487,0
m
Standover height
693,0
693,0
714,0
718,0
715,0
x
Bottom bracket height
332,0
332,0
335,0
335,0
335,0
y
Front center
703,0
713,0
739,0
773,0
798,0
