Trek Powerfly FS 9 Equipped 2022

E-Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29" / 29"
Suspension type
Full suspension
Weight
27,05 kg
Front travel
120mm
Rear travel
100mm
Price
$5,999.99

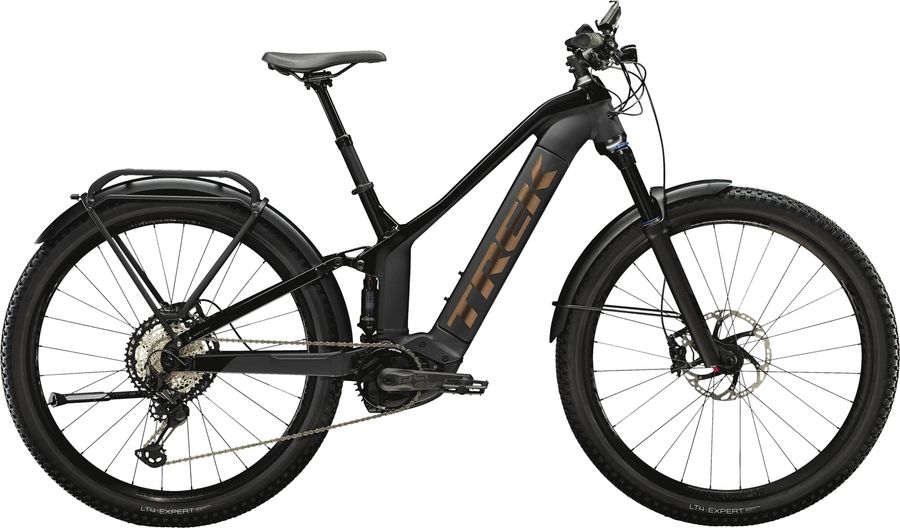

Trek Powerfly FS 9 Equipped 2022

About the Trek Powerfly FS 9 Equipped 2022

The Trek Powerfly FS 9 Equipped 2022 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 27,05 kg.

Features

The Trek Powerfly FS 9 Equipped 2022 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Endurance Comp, lock-on
Components
Steam
Bontrager Elite, 31.8mm, Blendr light mount, 7 degree rise, 70mm length
Saddle
Bontrager Commuter Comp
Battery
Bosch PowerTube 625
Charger
Bosch standard 4A (100-240V) charger
Seatpost
Size: M, Bontrager Line Dropper, 100mm travel, internal routing, 31.6mm, 345mm length; Size: L, XL, Bontrager Line Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Discs
Shimano RT76, 6-bolt, 203mm
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
E*thirteen E*spec Plus, 34T, 165mm length
Motor
Bosch PowerTube 625
Shifter
Shimano XT M8100, 12 speed
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armor, magnesium rocker link, rack and fender mount, ABP, Boost148, 100mm travel
Front suspension
SR Suntour Zeron 35
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tires
Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40''
Rear hub
Size: M, L, XL, Bontrager alloy, sealed bearing, alloy, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle; Size: M, L, XL, Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

Geometry

Size 17.5" 19.5" 21.5"
a
Seat tube length
420,0
450,0
500,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
592,0
624,0
649,0
d
Head tube length
130,0
140,0
140,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
g
Trail
114,0
114,0
114,0
h
Wheelbase
1209,0
1243,0
1268,0
i
Chainstay length
473,0
473,0
473,0
j
Bottom bracket drop
39,0
39,0
39,0
k
Stack height
640,0
649,0
649,0
l
Reach
433,0
463,0
488,0
m
Standover height
715,0
719,0
716,0
x
Bottom bracket height
335,0
335,0
335,0
y
Front center
739,0
773,0
798,0
