Trek Procaliber 8 2018

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
11,79 kg
Front travel
100mm

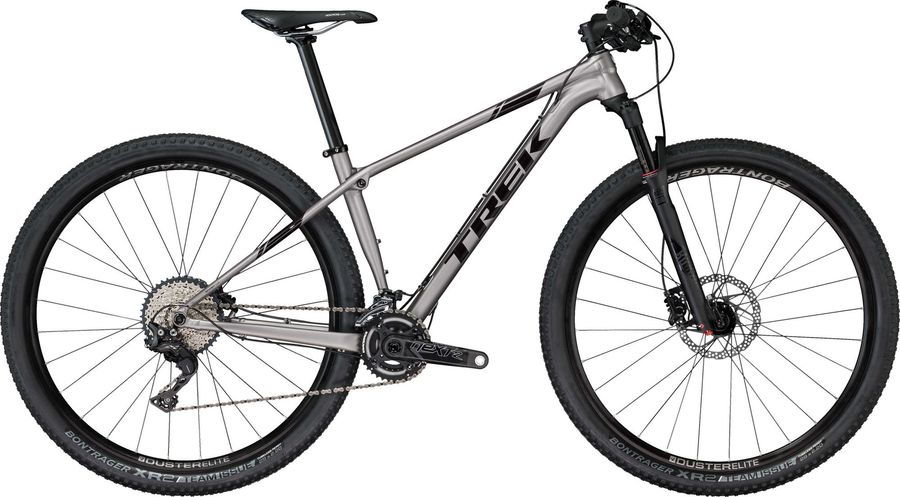

Trek Procaliber 8 2018

About the Trek Procaliber 8 2018

The Trek Procaliber 8 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 11,79 kg.

Features

The Trek Procaliber 8 2018 has 6 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager Race Lite, lock-on
Pedals
Not included
Components
Steam
Bontrager Elite, 31.8mm, 7 degree
Saddle
Bontrager Montrose Comp, chromoly rails
Headset
FSA IS-2, 1-1/8˝ top, 1.5˝ bottom
Seatpost
Bontrager Pro, OCLV Carbon, 31.6mm, 5mm offset
Handlebar
Bontrager Race Lite, 31.8mm, 5mm rise, 720mm width
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Next R, 36/26
Shifter
Shimano SLX M7000, 11 speed
Bottom bracket
PF92
Front derailleur
Shimano SLX M7020
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Alpha Platinum Aluminum, IsoSpeed, E2 tapered head tube, internal derailleur routing, balanced post mount brake, PF92, Boost148, G2 Geometry on 29ers
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
Bontrager Duster Elite 23, Tubeless Ready, Boost110 front, Boost148 rear, tubeless strips included, valves sold separately
Tires
Bontrager XR2 Team Issue, Tubeless Ready, 120 tpi, aramid bead, 29x2.20˝ (13.5 & 15.5: 27.5x2.20˝)

Geometry

Size 15.5" 17.5" 18.5" 19.5" 21.5"
a
Seat tube length
368,0
419,0
444,0
470,0
521,0
b
Seat tube angle
73,0º
72,5º
72,3º
72,0º
72,0º
c
Top tube length
560,0
601,0
619,0
640,0
661,0
d
Head tube length
100,0
90,0
90,0
100,0
120,0
e
Head tube angle
69,3º
69,5º
69,5º
69,5º
69,5º
f
Rake
51,0
51,0
51,0
51,0
49,0
g
Trail
85,0
83,0
83,0
83,0
83,0
h
Wheelbase
1055,0
1,1e3
1115,0
1134,0
1156,0
i
Chainstay length
427,0
437,0
437,0
437,0
437,0
j
Bottom bracket drop
48,0
58,0
58,0
58,0
58,0
k
Stack height
565,0
597,0
597,0
606,0
630,0
l
Reach
384,0
414,0
429,0
444,0
459,0
m
Standover height
755,0
752,0
766,0
780,0
818,0
x
Bottom bracket height
302,0
311,0
311,0
311,0
311,0
y
Front center
633,0
669,0
684,0
703,0
725,0
