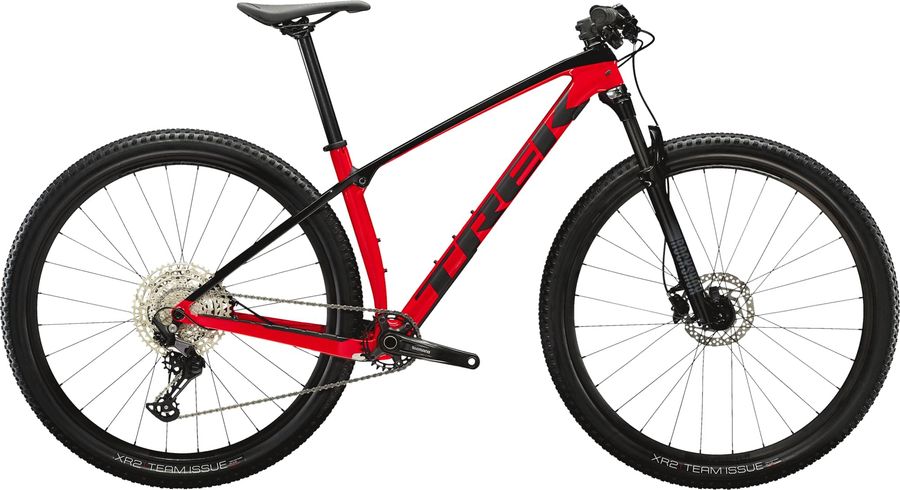

Trek Procaliber 9.5 2022
Groupset
Shimano Deore
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
11,64 kg
Front travel
100mm
Price
$1,844.10
About the Trek Procaliber 9.5 2022
The Trek Procaliber 9.5 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 11,64 kg.
Features
Internal routing
More info
Internal routing
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Bontrager XR Trail Comp, nylon lock-on
|
|---|
|
Steam
|
Size: S, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 60mm length; Size: M, M/L, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 70mm length; Size: L, XL, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 80mm length
|
|---|---|
|
Saddle
|
Bontrager Arvada, steel rails, 138mm width
|
|
Headset
|
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
|
|
Seatpost
|
Size: S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: M/L, L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
|
|
Handlebar
|
Size: S, M, M/L, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: L, XL, Bontrager Comp, alloy, 31.8mm, 15mm rise, 750mm width
|
|
Discs
|
Size: S, M, M/L, L, XL, Shimano RT26, 6-bolt,160mm; Size: L, XL, Shimano RT26, 6-bolt,180mm
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Size: S, M, Shimano MT511, 30T steel ring, Boost (52mm chainline), 170mm length; Size: M/L, L, XL, Shimano MT511, 30T steel ring, Boost (52mm chainline), 175mm length
|
|---|---|
|
Shifter
|
Shimano Deore M6100, 12 speed
|
|
Bottom bracket
|
Shimano MT500, 92mm, PressFit
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano Deore CS-M6100-12
HYPERGLIDE+
|
|
|
|
|
Rear derailleur
|
Shimano Deore RD-M6100
SGS
12s
|
|
|
|
|
Frame
|
OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148
|
|---|---|
|
Front suspension
|
RockShox Judy SL
|
|
Rims
|
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve
|
|---|---|
|
Tires
|
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
|
|
Spokes
|
15g stainless steel
|
|
Rear hub
|
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
|
|
Front hub
|
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
|
Geometry
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
|
a
Seat tube length
|
393,0
|
419,0
|
444,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
73,8º
|
73,8º
|
73,8º
|
73,8º
|
73,8º
|
|
c
Top tube length
|
563,0
|
588,0
|
603,0
|
618,0
|
652,0
|
|
d
Head tube length
|
90,0
|
90,0
|
90,0
|
90,0
|
105,0
|
|
e
Head tube angle
|
68,8º
|
68,8º
|
68,8º
|
68,8º
|
68,8º
|
|
f
Rake
|
43,0
|
43,0
|
43,0
|
43,0
|
42,0
|
|
g
Trail
|
100,0
|
100,0
|
100,0
|
100,0
|
100,0
|
|
h
Wheelbase
|
1071,0
|
1096,0
|
1111,0
|
1126,0
|
1161,0
|
|
i
Chainstay length
|
425,0
|
425,0
|
425,0
|
425,0
|
425,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
593,0
|
593,0
|
593,0
|
593,0
|
607,0
|
|
l
Reach
|
388,0
|
413,0
|
428,0
|
443,0
|
473,0
|
|
m
Standover height
|
708,0
|
748,0
|
758,0
|
777,0
|
807,0
|
|
x
Bottom bracket height
|
313,0
|
313,0
|
313,0
|
313,0
|
313,0
|
|
y
Front center
|
653,0
|
678,0
|
693,0
|
708,0
|
743,0
|
