Trek Procaliber 9.6 2022

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
11,37 kg
Front travel
100mm
Price
$2,391.63

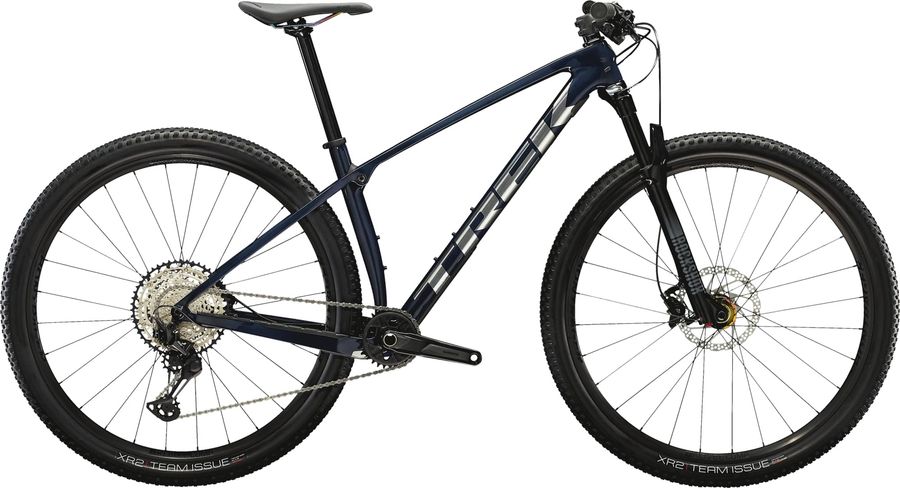

Trek Procaliber 9.6 2022

About the Trek Procaliber 9.6 2022

The Trek Procaliber 9.6 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 11,37 kg.

Features

The Trek Procaliber 9.6 2022 has 7 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Herrmans Clik
Components
Steam
Size: S, M, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 60mm length; Size: ML, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 70mm length; Size: L, XL, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 80mm length; Size: XXL, Bontrager Elite, 35mm, 0 degree, 90mm length
Saddle
Bontrager Arvada, hollow chromoly rails, 138mm width
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seatpost
Size: S, Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length; Size: M, ML, L, XL, XXL, Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length
Handlebar
Size: S, M, ML, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: L, XL, Bontrager Comp, alloy, 31.8mm, 15mm rise, 750mm width; Size: XXL, Bontrager Line, alloy, 35mm, 15mm rise, 750mm width
Discs
Size: S, M, ML, L, XL, XXL, Shimano RT56, 6-bolt, 180mm; Size: S, M, ML, L, XL, XXL, Shimano RT56, 6-bolt, 160mm
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Size: S, Shimano MT611, 30T steel ring, alloy spider, Boost (52mm chainline), 170mm length; Size: M, ML, L, XL, XXL, Shimano MT611, 30T steel ring, alloy spider, Boost (52mm chainline), 175mm length
Shifter
Shimano SLX M7100, 12 speed
Bottom bracket
Shimano MT500, 92mm, PressFit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148
Front suspension
RockShox Recon Gold RL Solo Air
Color
Diffusion Black, Gloss Black
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNG-RL-A5
Name
Recon Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tires
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''

Geometry

Size 15.5" 17.5" 18.5" 19.5" 21.5" 23"
a
Seat tube length
393,0
419,0
444,0
470,0
510,0
545,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
73,8º
73,8º
c
Top tube length
563,0
588,0
603,0
618,0
652,0
676,0
d
Head tube length
90,0
90,0
90,0
90,0
105,0
120,0
e
Head tube angle
68,8º
68,8º
68,8º
68,8º
68,8º
68,8º
f
Rake
43,0
43,0
43,0
43,0
42,0
45,0
g
Trail
100,0
100,0
100,0
100,0
100,0
100,0
h
Wheelbase
1071,0
1096,0
1111,0
1126,0
1161,0
1187,0
i
Chainstay length
425,0
425,0
425,0
425,0
425,0
425,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
60,0
k
Stack height
593,0
593,0
593,0
593,0
607,0
616,0
l
Reach
388,0
413,0
428,0
443,0
473,0
493,0
m
Standover height
708,0
748,0
758,0
777,0
807,0
834,0
x
Bottom bracket height
313,0
313,0
313,0
313,0
313,0
313,0
y
Front center
653,0
678,0
693,0
708,0
743,0
769,0
