Trek Procaliber 9.8 SL 2018

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
10,02 kg
Front travel
100mm

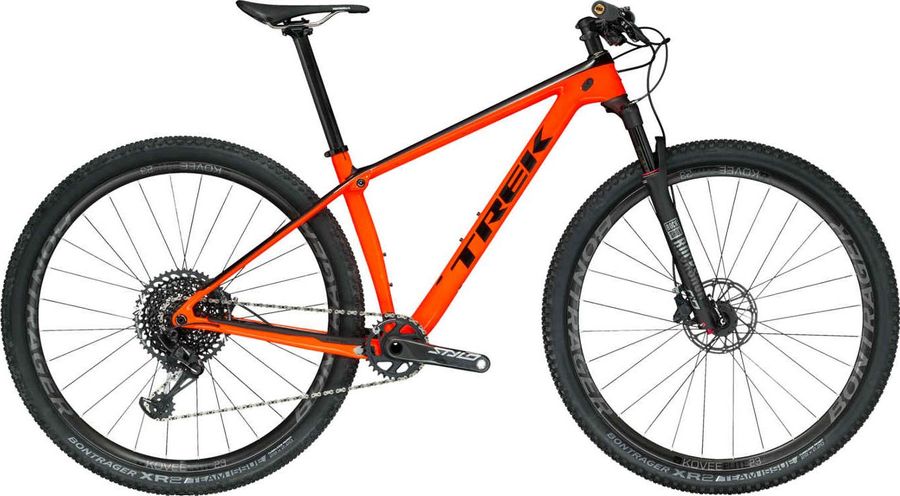

Trek Procaliber 9.8 SL 2018

About the Trek Procaliber 9.8 SL 2018

The Trek Procaliber 9.8 SL 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 10,02 kg.

Features

The Trek Procaliber 9.8 SL 2018 has 7 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ESI Chunky
Pedals
Not included
Components
Steam
Bontrager Pro, 31.8mm, 7 degree
Saddle
Bontrager Montrose Elite, hollow titanium rails
Headset
FSA IS-2, 1-1/8˝ top, 1.5˝ bottom
Seatpost
Bontrager Pro, OCLV Carbon, 31.6mm, 5mm offset
Handlebar
Bontrager Race X Lite, OCLV Carbon, 31.8mm, 5mm rise, 720mm width
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM Stylo Carbon Eagle, 32T
Shifter
SRAM GX Eagle, 12 speed
Bottom bracket
PF92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Super Light OCLV Mountain Carbon, IsoSpeed, E2 tapered head tube, MicroTruss, Control Freak internal routing, balanced post mount brake, PF92, Boost148 & G2 Geometry on 17.5˝ and larger sizes
Front suspension
RockShox SID RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RL-B2
Name
SID RL
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Wheels
Rims
Bontrager Kovee Elite 23, Tubeless Ready, 54T Rapid Drive, Boost110 front, Boost148 rear (15.5˝: 142x12 rear), tubeless strips included, valves sold separately
Tires
Bontrager XR2 Team Issue, Tubeless Ready, 120 tpi, aramid bead, 29x2.20˝ (15.5: 27.5x2.20˝)

Geometry

Size 15.5" 17.5" 18.5" 19.5" 21.5"
a
Seat tube length
368,0
419,0
444,0
470,0
521,0
b
Seat tube angle
73,0º
72,5º
72,0º
72,0º
72,0º
c
Top tube length
566,0
601,0
619,0
640,0
661,0
d
Head tube length
100,0
90,0
90,0
100,0
120,0
e
Head tube angle
69,3º
69,5º
69,5º
69,5º
69,5º
f
Rake
44,0
51,0
51,0
51,0
51,0
g
Trail
83,0
83,0
83,0
83,0
83,0
h
Wheelbase
1055,0
1,1e3
1115,0
1134,0
1156,0
i
Chainstay length
427,0
437,0
437,0
437,0
437,0
j
Bottom bracket drop
48,0
58,0
58,0
58,0
58,0
k
Stack height
585,0
597,0
597,0
606,0
625,0
l
Reach
384,0
414,0
429,0
444,0
459,0
m
Standover height
729,0
749,0
763,0
779,0
816,0
x
Bottom bracket height
302,0
311,0
311,0
311,0
311,0
y
Front center
633,0
669,0
684,0
703,0
725,0
