Trek Rail 9.5 2021

E-Bike
MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
22,76 kg
Front travel
160mm
Rear travel
150mm

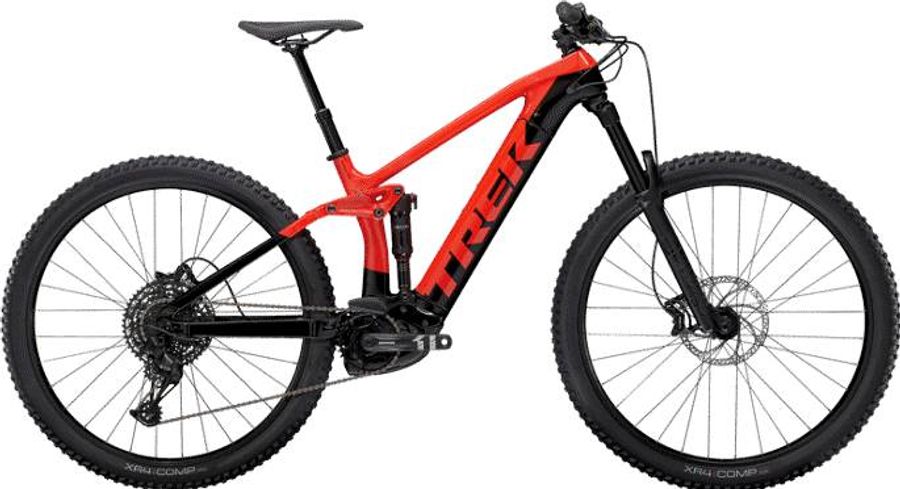

Trek Rail 9.5 2021

About the Trek Rail 9.5 2021

The Trek Rail 9.5 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 22,76 kg.

Features

The Trek Rail 9.5 2021 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Comp, nylon lock-on
Components
Steam
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Saddle
Bontrager Arvada, steel rails, 138 mm width
Battery
Bosch PowerTube 625
Charger
Bosch compact 2A (100-240 V) charger
Seatpost
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Discs
Tektro, 203 mm, 6-bolt
Brakes
Tektro HD-M745
Drivetrain
Crankset
SRAM X1 1000, 34T, 165 mm length
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Shifter
SRAM SX Eagle single-click, 12-speed
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Alex MD35, Tubeless Ready, 32-hole, 35 mm width, Presta valve
Tires
Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Spokes
NA
Rear hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Front hub
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
410,0
410,0
420,0
420,0
450,0
450,0
500,0
500,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
580,0
581,0
604,0
606,0
626,0
627,0
658,0
659,0
d
Head tube length
105,0
105,0
105,0
105,0
110,0
110,0
120,0
120,0
e
Head tube angle
64,9º
64,5º
64,9º
64,5º
64,9º
64,5º
64,9º
64,5º
f
Rake
41,0
43,0
42,0
43,0
42,0
43,0
43,0
43,0
g
Trail
127,0
131,0
127,0
131,0
127,0
131,0
127,0
131,0
h
Wheelbase
1188,0
1189,0
1213,0
1214,0
1236,0
1236,0
1270,0
1270,0
i
Chainstay length
440,0
441,0
440,0
441,0
440,0
441,0
440,0
441,0
j
Bottom bracket drop
29,0
35,0
29,0
35,0
29,0
35,0
29,0
35,0
k
Stack height
616,0
619,0
615,0
619,0
620,0
623,0
629,0
632,0
l
Reach
418,0
413,0
443,0
438,0
463,0
458,0
492,0
488,0
m
Standover height
751,0
746,0
763,0
758,0
760,0
755,0
758,0
753,0
x
Bottom bracket height
344,0
339,0
344,0
339,0
344,0
339,0
344,0
339,0
y
Front center
750,0
750,0
774,0
775,0
797,0
797,0
831,0
831,0
