Trek Remedy 7 2021

MTB Enduro
Groupset
SRAM NX Eagle
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,01 kg
Front travel
160mm
Rear travel
150mm

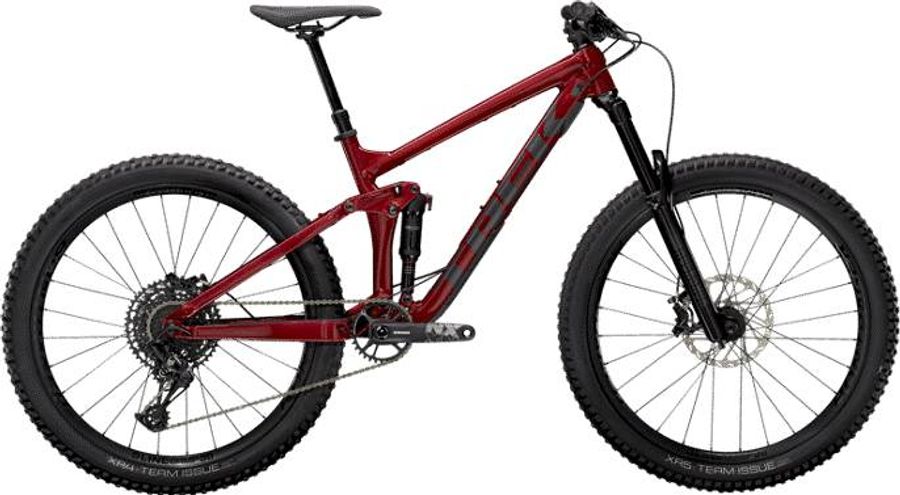

Trek Remedy 7 2021

About the Trek Remedy 7 2021

The Trek Remedy 7 2021 is a Full suspension Enduro Mountain Bike. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and e-thru axle. The bike weighs approximately 15,01 kg.

Features

The Trek Remedy 7 2021 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Comp, nylon lock-on
Components
Steam
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 445 mm length
Handlebar
Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width
Discs
Avid G2 Cleansweep, 180 mm, 6-bolt
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM NX Eagle, DUB, 32T steel ring, Boost, 175 mm length
Shifter
SRAM NX Eagle, 12-speed
Bottom bracket
SRAM DUB, 92 mm, PressFit
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Tires
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60"
Spokes
DT Swiss Champion, J-Bend, Black
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
394,0
394,0
419,0
419,0
470,0
470,0
521,0
521,0
b
Seat tube angle
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
c
Top tube length
554,0
556,0
580,0
582,0
618,0
619,0
642,0
643,0
d
Head tube length
95,0
95,0
100,0
100,0
110,0
110,0
125,0
125,0
e
Head tube angle
66,1º
65,5º
66,1º
65,6º
66,1º
65,6º
66,1º
65,6º
f
Rake
90,0
46,0
90,0
46,0
90,0
46,0
90,0
46,0
g
Trail
112,0
115,0
112,0
115,0
112,0
115,0
112,0
115,0
h
Wheelbase
1133,0
1134,0
1160,0
1161,0
1199,0
1,2e3
1225,0
1226,0
i
Chainstay length
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
j
Bottom bracket drop
94,0
16,0
94,0
16,0
94,0
16,0
94,0
16,0
k
Stack height
577,0
581,0
582,0
586,0
591,0
595,0
604,0
609,0
l
Reach
395,0
389,0
420,0
414,0
455,0
449,0
475,0
469,0
m
Standover height
733,0
728,0
765,0
760,0
764,0
759,0
769,0
763,0
x
Bottom bracket height
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
y
Front center
722,0
705,0
749,0
732,0
788,0
771,0
814,0
797,0
