Trek Remedy 8 2022

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

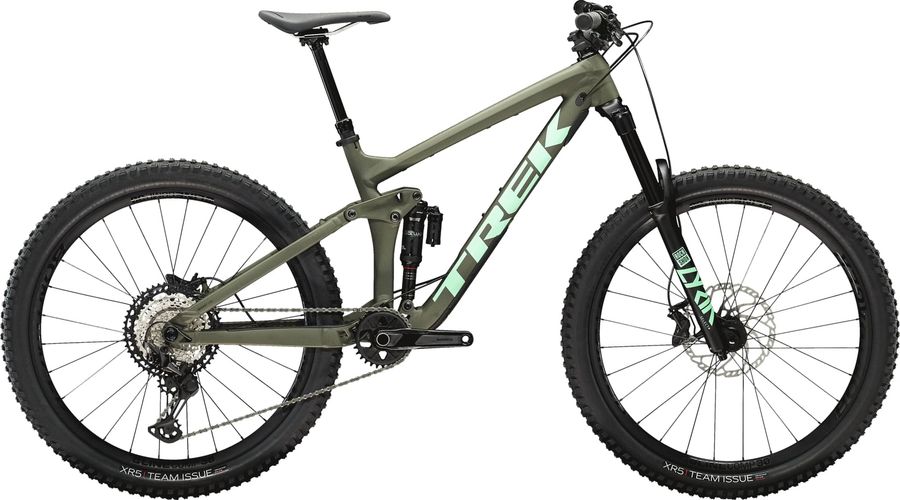

Trek Remedy 8 2022

About the Trek Remedy 8 2022

The Trek Remedy 8 2022 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Trek Remedy 8 2022 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Pro, alloy lock-on
Components
Steam
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Size: S, Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length; Size: M, M/L, L, XL, Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 820 mm width
Discs
Size: S, M, M/L, L, XL, Shimano RT66, 6-bolt, 180mm; Size: S, M, M/L, L, XL, Shimano RT66, 6-bolt, 203 mm
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Size: S, M, M/L, L, XL, Shimano MT611, 32T steel ring, alloy spider, Boost, 170 mm length; Size: S, M, M/L, L, XL, Shimano MT611, 30T steel ring, alloy spider, Boost, 170 mm length
Shifter
Shimano XT M8100, 12-speed
Bottom bracket
Shimano MT500, 92 mm, PressFit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 150 mm travel
Front suspension
RockShox Lyrik Select+ DebonAir 2003 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SELP-C2
Name
Lyrik Select+
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
Bontrager Line 30, Tubeless Ready, 28-hole, Presta valve
Tires
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 27.5x2.50"
Rear hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
394,0
394,0
419,0
419,0
445,0
445,0
470,0
470,0
521,0
521,0
b
Seat tube angle
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
c
Top tube length
554,0
556,0
580,0
582,0
597,0
598,0
618,0
619,0
642,0
643,0
d
Head tube length
95,0
95,0
100,0
100,0
105,0
105,0
110,0
110,0
125,0
125,0
e
Head tube angle
66,1º
65,5º
66,1º
65,6º
66,1º
65,6º
66,1º
65,6º
66,1º
65,6º
f
Rake
90,0
46,0
90,0
46,0
90,0
47,0
90,0
46,0
90,0
46,0
g
Trail
112,0
115,0
112,0
115,0
112,0
115,0
112,0
115,0
112,0
115,0
h
Wheelbase
1133,0
1134,0
1160,0
1161,0
1177,0
1178,0
1199,0
1,2e3
1225,0
1226,0
i
Chainstay length
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
j
Bottom bracket drop
94,0
16,0
94,0
16,0
94,0
16,0
94,0
16,0
94,0
16,0
k
Stack height
577,0
581,0
582,0
586,0
586,0
590,0
591,0
595,0
604,0
609,0
l
Reach
395,0
389,0
420,0
414,0
435,0
429,0
455,0
449,0
475,0
469,0
m
Standover height
733,0
728,0
765,0
760,0
767,0
762,0
764,0
759,0
769,0
763,0
x
Bottom bracket height
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
y
Front center
722,0
705,0
749,0
732,0
766,0
749,0
788,0
771,0
814,0
797,0
