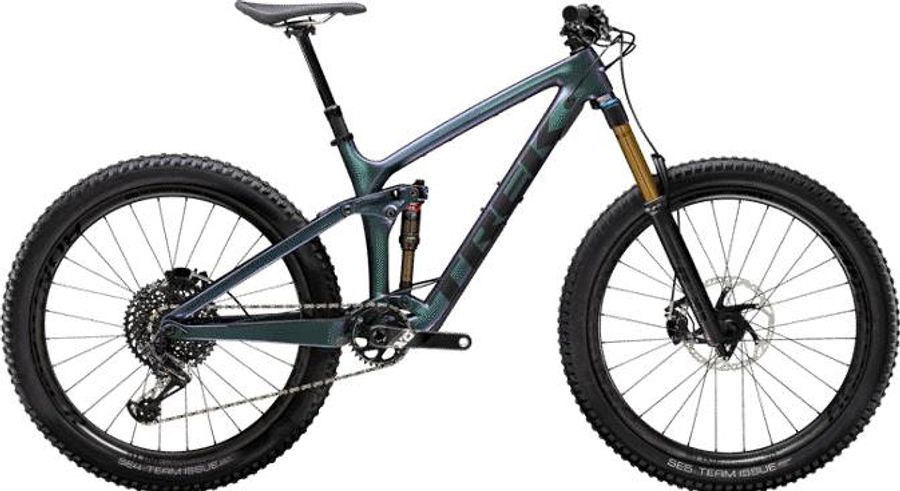

Trek Remedy 9.9 27.5 2020

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,91 kg
Front travel
160mm
Rear travel
150mm
Trek Remedy 9.9 27.5 2020

About the Trek Remedy 9.9 27.5 2020

The Trek Remedy 9.9 27.5 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 12,91 kg.

Features

The Trek Remedy 9.9 27.5 2020 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Elite, alloy lock-on
Components
Steam
Bontrager Line Pro, 35mm, Knock Block, 0 degree
Saddle
Bontrager Arvada, austenite rails
Seatpost
Bontrager Line Elite Dropper, internal routing, 31.6mm
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
SRAM X01 Eagle Carbon, DUB, 32T alloy ring, Boost
Shifter
SRAM X01 Eagle, 12 speed
Bottom bracket
SRAM DUB, 92mm, PressFit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
OCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 150mm travel
Front suspension
Fox 36 Float Factory
Wheels
Rims
Bontrager Line Carbon 30, Tubeless Ready, 6-bolt, Boost110 front, Boost148 rear
Tires
Bontrager SE5 front, SE4 rear, Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 27.5x2.60"

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
394,0
394,0
419,0
419,0
445,0
445,0
470,0
470,0
521,0
521,0
b
Seat tube angle
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
74,7º
74,2º
c
Top tube length
554,0
556,0
580,0
582,0
597,0
598,0
618,0
619,0
642,0
643,0
d
Head tube length
95,0
95,0
100,0
100,0
105,0
105,0
110,0
110,0
125,0
125,0
e
Head tube angle
66,1º
65,5º
66,1º
65,6º
66,1º
65,6º
66,1º
65,6º
66,1º
65,6º
f
Rake
90,0
46,0
90,0
46,0
90,0
47,0
90,0
46,0
90,0
46,0
g
Trail
112,0
115,0
112,0
115,0
112,0
115,0
112,0
115,0
112,0
115,0
h
Wheelbase
1133,0
1134,0
1160,0
1161,0
1177,0
1178,0
1199,0
1,2e3
1225,0
1226,0
i
Chainstay length
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
j
Bottom bracket drop
94,0
16,0
94,0
16,0
94,0
16,0
94,0
16,0
94,0
16,0
k
Stack height
577,0
581,0
582,0
586,0
586,0
590,0
591,0
595,0
604,0
609,0
l
Reach
395,0
389,0
420,0
414,0
435,0
429,0
455,0
449,0
475,0
469,0
m
Standover height
737,0
732,0
765,0
760,0
767,0
762,0
764,0
759,0
776,0
770,0
x
Bottom bracket height
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
356,0
349,0
y
Front center
722,0
705,0
749,0
732,0
766,0
749,0
788,0
771,0
814,0
797,0
