Trek Roscoe 6 2022
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
15,41 kg
Front travel
100mm
Price
$1,061.65

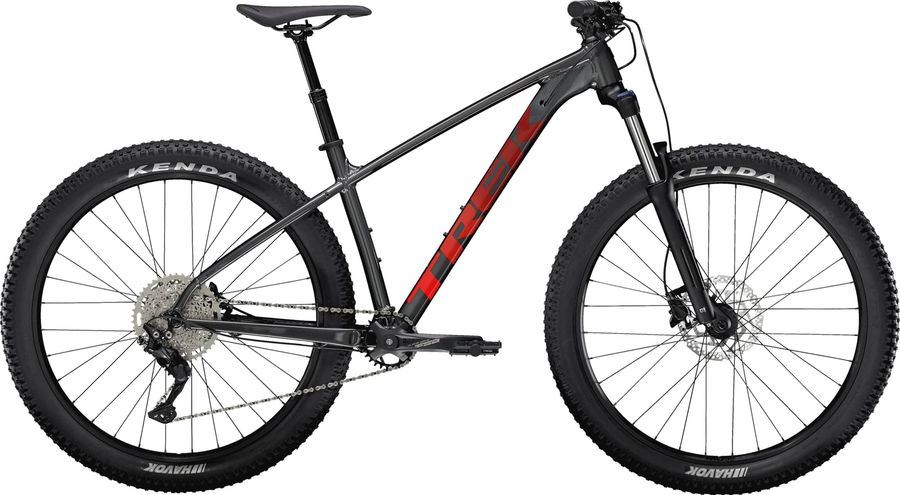

About the Trek Roscoe 6 2022
The Trek Roscoe 6 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and e-thru axle. The bike weighs approximately 15,41 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Bontrager XR Trail Comp, nylon lock-on
|
|---|
|
Steam
|
Size: XS, S, M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M/L, L, XL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
|
|---|---|
|
Saddle
|
Bontrager Arvada, steel rails, 138mm width
|
|
Headset
|
Semi-integrated, cartridge, 1-1/8'' top, 1.5'' bottom
|
|
Seatpost
|
Size: XS, S, M, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M/L, L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
|
|
Handlebar
|
Size: XS, Bontrager alloy, 31.8mm, 15mm rise, 720mm width; Size: S, M, M/L, L, XL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width
|
|
Discs
|
Size: XS, S, M, M/L, L, XL, Shimano RT26, 6-bolt,160mm; Size: M, M/L, L, XL, Shimano RT26, 6-bolt,180mm
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Size: XS, S, FSA Alpha Drive, 28T steel ring, Boost, 170mm length; Size: M, M/L, L, XL, FSA Alpha Drive, 28T steel ring, Boost, 175mm length
|
|---|---|
|
Shifter
|
Shimano Deore M4100, 10 speed
|
|
Bottom bracket
|
Shimano 7420ST, 73mm, threaded cartridge, 124.5mm spindle
|
|
Chain
|
KMC X10
|
|
Rear derailleur
|
Shimano Deore RD-M5120
SGS
11/10s
|
|
42T (2x11/2x10-speed) |
|
|
Cassette
|
Shimano Deore CS-M4100-10
HG
|
|
11-46T |
|
|
Frame
|
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR
|
|---|---|
|
Front suspension
|
SR Suntour XCM 32
|
|
Rims
|
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
|
|---|---|
|
Tires
|
Kenda Havok, wire bead, 30 tpi, 27.5x2.80''
|
|
Spokes
|
14g stainless steel
|
|
Rear hub
|
Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5mm QR
|
|
Front hub
|
Formula DC-511, 6-bolt, Boost110, 15mm thru axle
|
Geometry
| Size | 13.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
368,0
|
419,0
|
444,0
|
470,0
|
521,0
|
|
b
Seat tube angle
|
71,1º
|
71,2º
|
70,7º
|
70,8º
|
70,8º
|
70,9º
|
|
c
Top tube length
|
552,0
|
568,0
|
603,0
|
619,0
|
639,0
|
660,0
|
|
d
Head tube length
|
90,0
|
90,0
|
90,0
|
90,0
|
100,0
|
120,0
|
|
e
Head tube angle
|
67,1º
|
67,2º
|
67,2º
|
67,3º
|
67,3º
|
67,4º
|
|
f
Rake
|
35,0
|
36,0
|
36,0
|
37,0
|
35,0
|
36,0
|
|
g
Trail
|
152,0
|
152,0
|
151,0
|
151,0
|
151,0
|
150,0
|
|
h
Wheelbase
|
1053,0
|
1075,0
|
1104,0
|
1120,0
|
1140,0
|
1162,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
50,0
|
40,0
|
41,0
|
41,0
|
41,0
|
42,0
|
|
k
Stack height
|
599,0
|
608,0
|
608,0
|
609,0
|
619,0
|
638,0
|
|
l
Reach
|
345,0
|
358,0
|
388,0
|
404,0
|
422,0
|
436,0
|
|
m
Standover height
|
725,0
|
748,0
|
745,0
|
742,0
|
757,0
|
754,0
|
|
x
Bottom bracket height
|
310,0
|
320,0
|
319,0
|
319,0
|
319,0
|
318,0
|
|
y
Front center
|
626,0
|
646,0
|
675,0
|
691,0
|
711,0
|
733,0
|
