Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,47 kg
Front travel
120mm

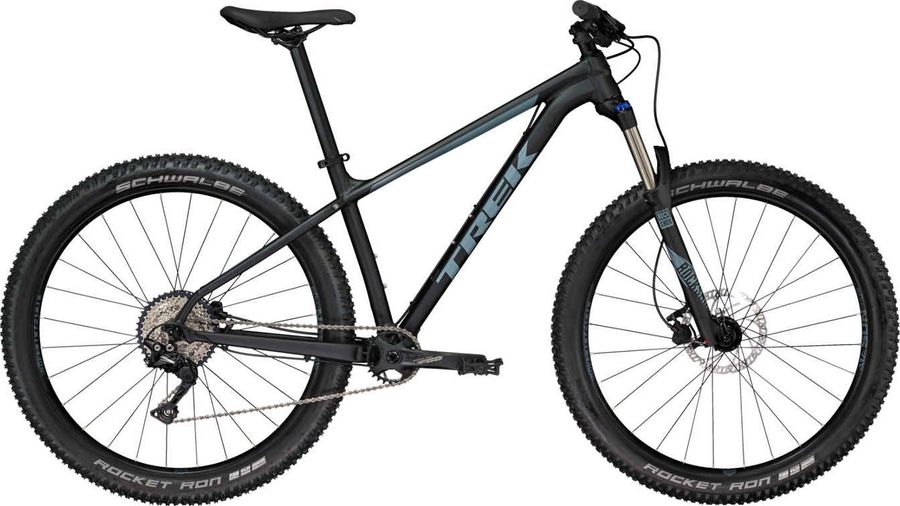

About the Trek Roscoe 7 2018
The Trek Roscoe 7 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and tapered head tube. The bike weighs approximately 13,47 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Bontrager Race Lite, lock-on
|
|---|---|
|
Pedals
|
Wellgo nylon platform
|
|
Steam
|
Bontrager Rhythm Comp, 31.8mm, 0 degree
|
|---|---|
|
Saddle
|
Bontrager Evoke 1.5
|
|
Headset
|
Semi-integrated, 1-1/8˝ top, 1.5˝ bottom
|
|
Seatpost
|
Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset
|
|
Handlebar
|
Bontrager alloy, 31.8mm, 15mm rise
|
|
Brake lever
|
Tektro M285 hydraulic disc
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
FSA Gamma Pro, 28T
|
|---|---|
|
Shifter
|
Shimano Deore M6000, 10 speed
|
|
Bottom bracket
|
Sealed cartridge
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG50-10
HG
|
|
|
|
|
Frame
|
Alpha Gold Aluminum, E2 tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, G2 Geometry
|
|---|---|
|
Front suspension
|
RockShox Judy Silver TK
Solo Air
|
|
|
|
|
Rims
|
SUNringlé Duroc 40 SL 28-hole, tubeless strips and valves sold separately
|
|---|---|
|
Tires
|
Schwalbe Rocket Ron Performance, tubeless, aramid bead, 27.5x2.80˝
|
|
Rear hub
|
Formula DC2241 alloy, Boost141
|
|
Front hub
|
Formula Alloy DC511, Boost110
|
Geometry
| Size | 13.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
368,0
|
419,0
|
444,0
|
470,0
|
521,0
|
559,0
|
|
b
Seat tube angle
|
73,0º
|
71,0º
|
71,0º
|
71,0º
|
71,0º
|
71,0º
|
71,0º
|
|
c
Top tube length
|
526,0
|
567,0
|
596,0
|
612,0
|
632,0
|
653,0
|
667,0
|
|
d
Head tube length
|
90,0
|
90,0
|
90,0
|
90,0
|
100,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
68,2º
|
68,3º
|
68,3º
|
68,3º
|
68,3º
|
68,3º
|
68,3º
|
|
f
Rake
|
55,0
|
56,0
|
56,0
|
55,0
|
54,0
|
55,0
|
53,0
|
|
g
Trail
|
92,0
|
91,0
|
91,0
|
91,0
|
91,0
|
91,0
|
91,0
|
|
h
Wheelbase
|
1061,0
|
1083,0
|
1112,0
|
1128,0
|
1148,0
|
1170,0
|
1184,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
68,0
|
58,0
|
58,0
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
592,0
|
601,0
|
601,0
|
601,0
|
611,0
|
630,0
|
633,0
|
|
l
Reach
|
357,0
|
370,0
|
399,0
|
416,0
|
433,0
|
447,0
|
462,0
|
|
m
Standover height
|
717,0
|
745,0
|
741,0
|
735,0
|
751,0
|
747,0
|
769,0
|
|
x
Bottom bracket height
|
309,0
|
318,0
|
318,0
|
318,0
|
318,0
|
318,0
|
318,0
|
|
y
Front center
|
638,0
|
657,0
|
686,0
|
702,0
|
722,0
|
744,0
|
758,0
|
