Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,99 kg
Front travel
140mm
Price
$1,486.65

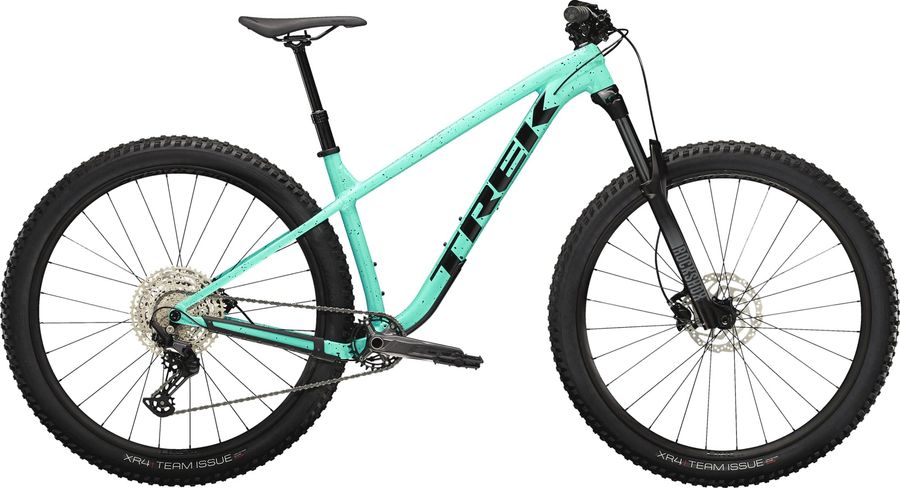

About the Trek Roscoe 7 2022
The Trek Roscoe 7 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,99 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Size: XS, S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length; Size: M, M/L, L, XL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
|
|---|---|
|
Saddle
|
Bontrager Arvada, steel rails, 138mm width
|
|
Headset
|
FSA IS-2, 1-1/8'' top, 1.5'' bottom
|
|
Seatpost
|
Size: XS, S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length; Size: M/L, L, XL, TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 445mm length
|
|
Handlebar
|
Size: XS, S, Bontrager alloy, 31.8mm, 15mm rise, 750mm width; Size: M, M/L, L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width
|
|
Discs
|
Shimano RT10, centerlock, 180mm
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Size: XS, S, M, M/L, L, Shimano MT511, 30T steel ring, Boost (52mm chainline), 170mm length; Size: XL, Shimano MT511, 30T steel ring, Boost (52mm chainline), 175mm length
|
|---|---|
|
Shifter
|
Shimano Deore M6100, 12 speed
|
|
Bottom bracket
|
Shimano SM-BB52, 73mm, threaded external bearing
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano Deore CS-M6100-12
HYPERGLIDE+
|
|
|
|
|
Rear derailleur
|
Shimano Deore RD-M6100
SGS
12s
|
|
|
|
|
Frame
|
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148
|
|---|---|
|
Front suspension
|
RockShox Recon Silver RL
Solo Air
|
|
|
|
|
Rims
|
Bontrager Line 30, Tubeless Ready, 28-hole, presta valve
|
|---|---|
|
Tires
|
Size: XS, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''; Size: S, M, M/L, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60''
|
|
Spokes
|
14g stainless steel
|
|
Rear hub
|
Shimano MT510, centerlock, Boost148, 12mm thru axle
|
|
Front hub
|
Shimano MT400, centerlock, Boost110, 15mm thru axle
|
Geometry
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
340,0
|
360,0
|
420,0
|
435,0
|
450,0
|
500,0
|
|
b
Seat tube angle
|
74,7º
|
74,7º
|
74,7º
|
74,7º
|
74,7º
|
74,7º
|
|
c
Top tube length
|
543,0
|
577,0
|
605,0
|
621,0
|
637,0
|
668,0
|
|
d
Head tube length
|
90,0
|
90,0
|
100,0
|
105,0
|
110,0
|
135,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
43,0
|
42,0
|
43,0
|
43,0
|
43,0
|
43,0
|
|
g
Trail
|
122,0
|
131,0
|
131,0
|
131,0
|
131,0
|
131,0
|
|
h
Wheelbase
|
1111,0
|
1142,0
|
1172,0
|
1189,0
|
1206,0
|
1241,0
|
|
i
Chainstay length
|
421,0
|
421,0
|
421,0
|
421,0
|
421,0
|
421,0
|
|
j
Bottom bracket drop
|
45,0
|
61,0
|
61,0
|
61,0
|
61,0
|
61,0
|
|
k
Stack height
|
582,0
|
617,0
|
626,0
|
630,0
|
635,0
|
657,0
|
|
l
Reach
|
381,0
|
406,0
|
431,0
|
446,0
|
461,0
|
486,0
|
|
m
Standover height
|
720,0
|
732,0
|
739,0
|
733,0
|
746,0
|
756,0
|
|
x
Bottom bracket height
|
319,0
|
322,0
|
322,0
|
322,0
|
322,0
|
322,0
|
|
y
Front center
|
694,0
|
728,0
|
758,0
|
775,0
|
792,0
|
827,0
|
