Trek Roscoe 9 2022

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29" / 29"
Suspension type
Hardtail
Weight
13,13 kg
Front travel
140mm
Price
$2,336.65

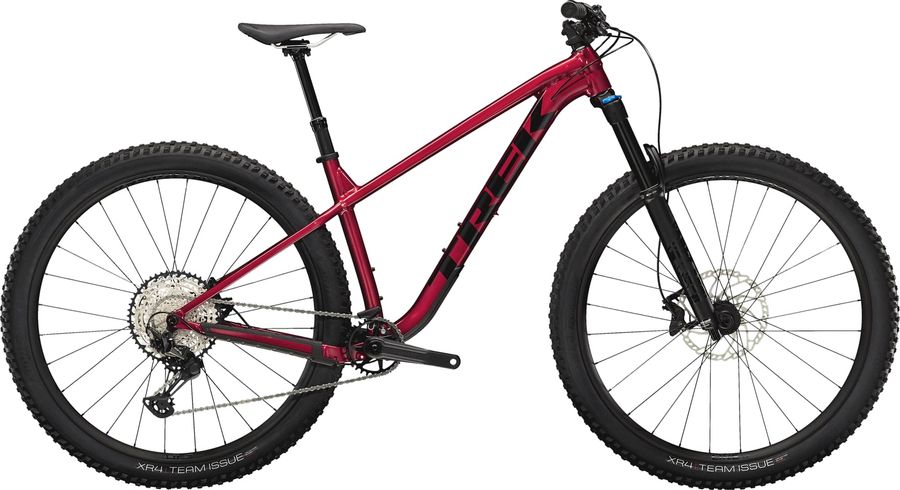

Trek Roscoe 9 2022

About the Trek Roscoe 9 2022

The Trek Roscoe 9 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,13 kg.

Features

The Trek Roscoe 9 2022 has 7 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Size: S, Bontrager Elite, 35mm, 0 degree, 35mm length; Size: M, M/L, L, XL, Bontrager Elite, 35mm, 0 degree, 45mm length
Saddle
Bontrager Arvada, hollow chromoly rails, 138mm width
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
Seatpost
Size: S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length; Size: M/L, L, XL, TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 445mm length
Handlebar
Size: S, Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width; Size: M, M/L, L, XL, Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
Discs
Size: S, M, M/L, L, XL, Shimano RT66, 6-bolt, 180mm; Size: S, M, M/L, L, XL, Shimano RT66, 6-bolt, 203mm
Brakes
Shimano BR-M6120 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M6120
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D02S Metal
Pad standard
D03S Resin
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Size: S, M, M/L, L, E*thirteen Helix, 30T steel ring, 73mm spindle length, 52mm chainline, 170mm length; Size: XL, E*thirteen Helix, 30T steel ring, 73mm spindle length, 52mm chainline, 175mm length
Shifter
Shimano SLX M7100, 12 speed
Bottom bracket
Shimano SM-BB52, 73mm, threaded external bearing
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148
Front suspension
Fox 36 Float Rhythm
Wheels
Rims
Bontrager Line 30, Tubeless Ready, 28-hole, presta valve
Tires
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60''
Spokes
14g stainless steel
Rear hub
Bontrager alloy, sealed bearing, alloy, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

Geometry

Size SM MD MD/LG LG XL
a
Seat tube length
360,0
420,0
435,0
450,0
500,0
b
Seat tube angle
74,7º
74,7º
74,7º
74,7º
74,7º
c
Top tube length
580,0
608,0
624,0
640,0
671,0
d
Head tube length
90,0
100,0
105,0
110,0
135,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
65,0º
f
Rake
42,0
43,0
43,0
43,0
43,0
g
Trail
131,0
131,0
131,0
131,0
131,0
h
Wheelbase
1145,0
1175,0
1192,0
1209,0
1244,0
i
Chainstay length
424,0
424,0
424,0
424,0
424,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
61,0
k
Stack height
620,0
629,0
633,0
638,0
660,0
l
Reach
409,0
434,0
449,0
464,0
489,0
m
Standover height
735,0
742,0
736,0
749,0
759,0
x
Bottom bracket height
322,0
322,0
322,0
322,0
322,0
y
Front center
728,0
758,0
775,0
792,0
827,0
