Trek Service 2020
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,42 kg
Front travel
100mm

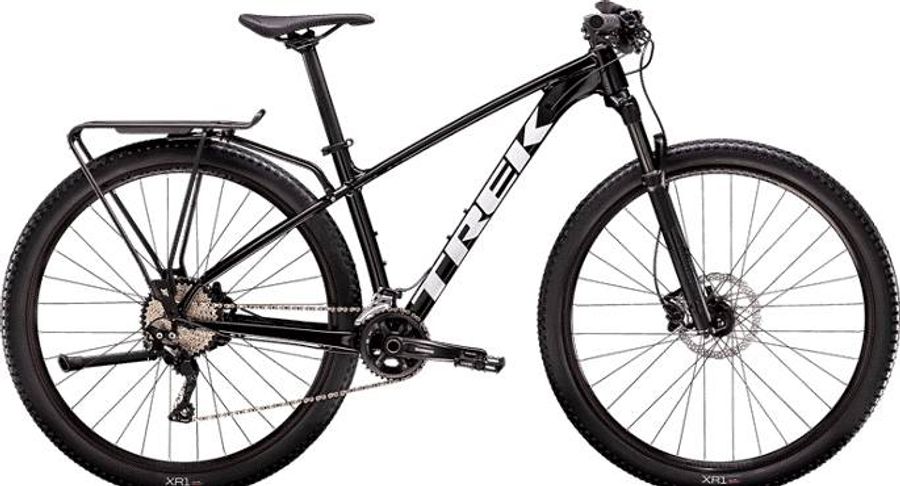

About the Trek Service 2020
The Trek Service 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes, tapered head tube, and tubeless ready. The bike weighs approximately 14,42 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Bontrager XR Endurance Comp, lock-on
|
|---|
|
Steam
|
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
|
|---|---|
|
Saddle
|
Bontrager Arvada, steel rails, 138mm width
|
|
Headset
|
Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8'' top, 1.5'' bottom
|
|
Seatpost
|
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
|
|
Handlebar
|
Bontrager alloy, 31.8mm, 5mm rise, 720mm width
|
|
Discs
|
Shimano RT56, 180mm, 6-bolt
|
|
Brakes
|
Shimano BR-MT400
Hydraulic disc brake
2 piston
|
|
BL-MT401 BL-MT402-3A SM-RT54* SM-RT56* |
|
|
Crankset
|
Shimano MT500, 36/26, 175mm length
|
|---|---|
|
Shifter
|
Shimano Deore M6000, 10 speed
|
|
Bottom bracket
|
Shimano SM-BB52, 73mm, threaded external bearing
|
|
Front derailleur
|
Shimano Deore M6020, e-type, side swing, front pull
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR
|
|---|---|
|
Front suspension
|
RockShox 30 Silver
Coil, Solo Air
|
|
|
|
|
Rims
|
Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve
|
|---|---|
|
Tires
|
Bontrager XR1 Comp, wire bead, 30 tpi, 29x2.20''
|
|
Spokes
|
14g, stainless steel, black
|
|
Rear hub
|
Formula DCL-141Q, sealed bearing, 6-bolt, Shimano 10 freehub, Boost141, 5mm QR
|
|
Front hub
|
Bontrager alloy, sealed bearing, 6-bolt disc, 100x5mm QR
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
368,0
|
419,0
|
470,0
|
521,0
|
559,0
|
|
b
Seat tube angle
|
73,5º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
569,0
|
604,0
|
640,0
|
661,0
|
675,0
|
|
d
Head tube length
|
90,0
|
90,0
|
100,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
93,0
|
93,0
|
93,0
|
93,0
|
93,0
|
|
h
Wheelbase
|
1073,0
|
1102,0
|
1139,0
|
1161,0
|
1175,0
|
|
i
Chainstay length
|
440,0
|
440,0
|
440,0
|
440,0
|
440,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
604,0
|
604,0
|
613,0
|
632,0
|
632,0
|
|
l
Reach
|
391,0
|
420,0
|
453,0
|
468,0
|
482,0
|
|
m
Standover height
|
743,0
|
750,0
|
759,0
|
771,0
|
806,0
|
|
x
Bottom bracket height
|
311,0
|
311,0
|
310,0
|
310,0
|
311,0
|
|
y
Front center
|
639,0
|
668,0
|
705,0
|
727,0
|
741,0
|
