Trek Session 9.9 2018

MTB Downhill

Groupset

Shimano Saint

Frame material

Carbon

Wheel size

27,5"

Suspension type

Full suspension

Weight

15,58 kg

Front travel

203mm

Rear travel

210mm

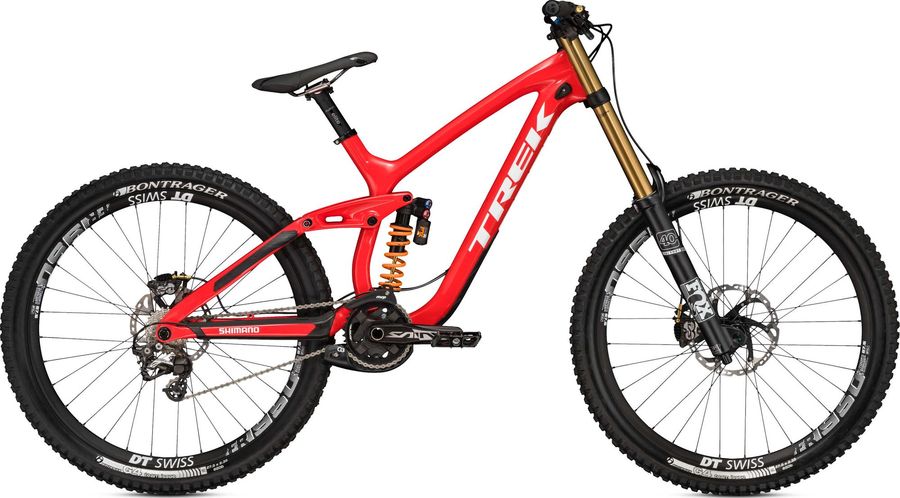

About the Trek Session 9.9 2018

The Trek Session 9.9 2018 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a Shimano Saint drivetrain of 10 gears (1x10). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 15,58 kg.

Features

The Trek Session 9.9 2018 has 3 features listed below.

Internal routing More info

Hydraulic disc brakes More info

Tapered head tube More info

Specifications

Acessories
Grip	Bontrager Rhythm, dual lock-on
Pedals	Wellgo MG-1, magnesium body, Cro-Mo axle, replaceable pins

Components
Steam	Bontrager Direct Mount, 31.8mm
Saddle	Bontrager Evoke 3, hollow titanium rails
Headset	Cane Creek IS-3, E2, alloy cartridge
Seatpost	Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset
Handlebar	Bontrager Rhythm Pro, OCLV Carbon, 31.8mm, 15mm rise
Brakes	Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g) 438 (BL-M820) Brake hose color kit Black Brake hose color kit White Brake hose kit SM-BH90-SBLS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M820 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard H01A Resin H03A Resin Pad standard H03C Metal Pad mount Pad axle Piston 4 Piston material Ceramic Recommended disc brake rotor SM-RT99 SM-RT86

Drivetrain
Crankset	Shimano Saint, 36T
Shifter	Shimano Saint, 10 speed
Bottom bracket	Sealed cartridge
Rear derailleur	Shimano Saint, Shadow Plus
Chain	Shimano CN-M9100 242 g
Average weight (g) 242 Chromizing treatment roller link pin Model CN-M9100 Pin link plate SIL-TEC Roller SIL-TEC Roller link plate Chromizing Type HG 12-speed
Cassette	Shimano Ultegra 10 speed

Frameset
Frame	OCLV Mountain Carbon w/InTension main frame, OCLV stays, ABP, Full Floater, HexMC carbon EVO Link, E2 tapered head tube, Mino Link, integrated frame protection, internal control routing, MicroTruss, Carbon Armor, ISCG mount, 210mm travel
Front suspension	Fox 40 Factory Kashima

Wheels
Rims	DT Swiss FR1950 Gravity Classic, 20mm front, 157x12 rear
Tires	Bontrager G4 Team Issue, 27.5x2.35"

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Saint 1 × 10

Crank: 36T

Cassette: 11-25T

Speeds: 10s

Gearing

Average

1,44

Average

3,28

Compared to similar bikes, the Trek Session 9.9 2018 has a regular uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD
a Seat tube length	426,0	426,0
b Seat tube angle	57,0º	57,0º
c Top tube length	566,0	586,0
d Head tube length	115,0	115,0
e Head tube angle	63,6º	63,6º
f Rake	49,0	49,0
g Trail	118,0	118,0
h Wheelbase	1175,0	1195,0
i Chainstay length	437,0	437,0
j Bottom bracket drop	-1,0	-1,0
k Stack height	599,0	599,0
l Reach	374,0	394,0
m Standover height	796,0	782,0
x Bottom bracket height	356,0	356,0
y Front center	738,0	758,0
