Trek Session 9 X01 2022

MTB Downhill
Groupset
SRAM X01
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
17,08 kg
Front travel
200mm
Rear travel
200mm
Price
$7,029.99

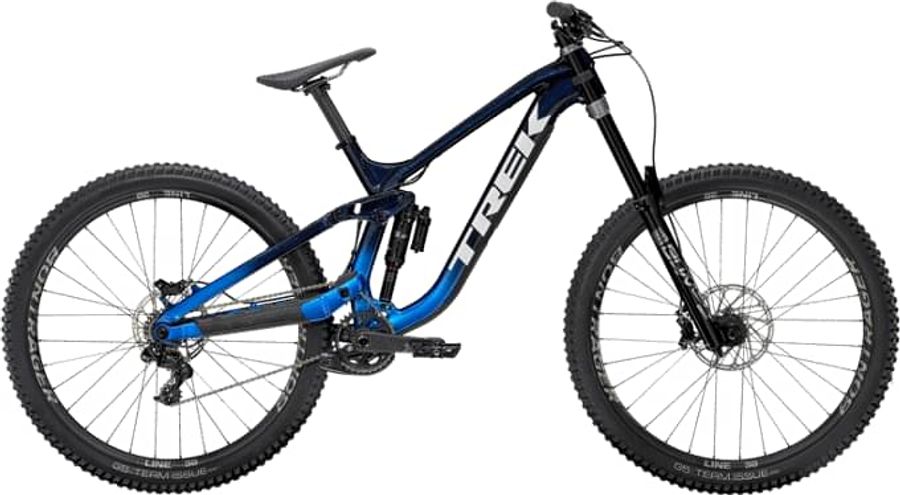

Trek Session 9 X01 2022

About the Trek Session 9 X01 2022

The Trek Session 9 X01 2022 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM X01 drivetrain of 7 gears (1x7). Its features include boost 110 , e-thru axle, and hydraulic disc brakes. The bike weighs approximately 17,08 kg.

Features

The Trek Session 9 X01 2022 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Elite, nylon lock-on
Components
Steam
Bontrager Line Pro, 35mm, Direct Mount, 50mm length
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Bontrager Rhythm Elite, 31.6mm, 0mm offset, 330mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 820mm width
Discs
Size: R1, R2, R3, SRAM CenterLine, 6-bolt, round edge, 180mm; Size: R1, R2, R3, SRAM CenterLine, 6-bolt, round edge, 200mm
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X01 DH, DUB 83, 34T alloy ring, 165mm length
Shifter
SRAM X01 DH, 7 speed
Bottom bracket
SRAM DUB, 83mm, BSA threaded
Cassette
SRAM PG-720 7s 224 g
Cog finish cassete
Black
Cog sizes
11-25t:11,13,15,17,19,22,25
Gearing
11-25t
Model
CS-PG-720-A1
Name
PG-720 Cassette
Speed
7s
Technology cassete
PG
Weight
224
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Rear derailleur
SRAM X01 DH 10s, 7s
Cable pull ratio
Exact actuation
Cage
Medium, Short
Cage material
Aluminum
Color
Black, Red
Max tooth
26, 28
Model
RD-X0-1DH-A2
Name
X01 DH X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
10s, 7s
Frameset
Frame
Alpha Platinum Aluminum, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12mm thru axle, 200mm travel
Rear suspension
RockShox Super Deluxe Ultimate DH
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RC
Eye to eye stroke
225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-ULDH-B2
Name
Super Deluxe Ultimate DH
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
485g (250x75, 2 tokens, MM tune, standard/standard)
Front suspension
RockShox Boxxer Ultimate DebonAir 2565 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2
fork offset
36mm (27.5"), 46mm (27.5"), 46mm (29"), 56mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-BXR-ULT-C2
Name
BoXXer Ultimate
Spring
DebonAir
Travel (mm)
180mm, 190mm, 200mm
Upper tube type
35mm straight wall aluminum
Weight based on
27.5" BOOST, 200mm, Maxle Stealth, Short Crown
Weight
2565
Wheel size
27.5", 29"
Wheels
Rims
Bontrager Line DH 30, Tubeless Ready, 6-bolt, 110x20mm Boost thru axle
Tires
Bontrager G5 Team Issue, wire bead, 2-ply 60tpi, 29x2.50''

Geometry

Size R1 High R1 Low R2 High R2 Low R3 High R3 Low
a
Seat tube length
425,0
425,0
425,0
425,0
425,0
425,0
b
Seat tube angle
77,1º
76,5º
77,1º
76,5º
77,1º
76,5º
c
Top tube length
577,0
578,0
608,0
609,0
643,0
644,0
d
Head tube length
117,0
117,0
117,0
117,0
117,0
117,0
e
Head tube angle
63,6º
63,0º
63,6º
63,0º
63,6º
63,0º
f
Rake
47,0
47,0
47,0
47,0
48,0
47,0
g
Trail
131,0
136,0
131,0
136,0
132,0
136,0
h
Wheelbase
1234,0
1237,0
1265,0
1268,0
1,3e3
1303,0
i
Chainstay length
426,0
430,0
432,0
436,0
439,0
443,0
j
Bottom bracket drop
12,0
21,0
12,0
21,0
12,0
21,0
k
Stack height
625,0
630,0
625,0
630,0
625,0
630,0
l
Reach
438,0
431,0
463,0
456,0
490,0
484,0
m
Standover height
746,0
738,0
750,0
742,0
748,0
740,0
x
Bottom bracket height
359,0
350,0
359,0
350,0
359,0
350,0
y
Front center
808,0
808,0
833,0
833,0
861,0
861,0
