Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,74 kg
Front travel
160mm
Rear travel
150mm

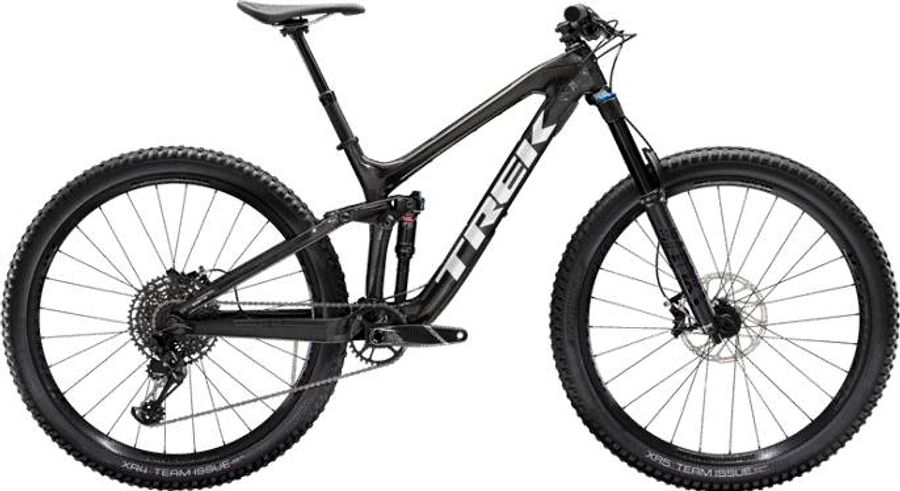

About the Trek Slash 9.7 29 2020
The Trek Slash 9.7 29 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 13,74 kg.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Bontrager XR Trail Elite, alloy lock-on
|
|---|
|
Steam
|
Bontrager Line, 35 mm, Knock Block, 0-degree, 50 mm length
|
|---|---|
|
Saddle
|
Bontrager Arvada, hollow chromoly rails, 138 mm width
|
|
Seatpost
|
Bontrager Line Dropper, 125mm travel, internal routing, 31.6 mm, 395mm length
|
|
Handlebar
|
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 820 mm width
|
|
Discs
|
SRAM CenterLine, 6-bolt, round edge, 180 mm
|
|
Brakes
|
SRAM Guide R
Hydraulic
392 g
|
|
|
|
|
Crankset
|
Truvativ Descendant 6k Eagle, DUB, 32T steel ring, Boost, 175 mm length
|
|---|---|
|
Shifter
|
SRAM NX Eagle, 12-speed
|
|
Bottom bracket
|
SRAM DUB, 92 mm, PressFit
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
OCLV Mountain Carbon main frame and stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 150 mm travel
|
|---|---|
|
Front suspension
|
Fox 36 Float Rhythm
|
|
Rear suspension
|
Fox Float Performance EVOL
|
|
Rims
|
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
|
|---|---|
|
Tires
|
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
|
|
Spokes
|
NA
|
|
Front hub
|
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
|
Geometry
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
394,0
|
394,0
|
419,0
|
419,0
|
470,0
|
470,0
|
521,0
|
521,0
|
|
b
Seat tube angle
|
74,1º
|
73,6º
|
74,1º
|
73,6º
|
74,1º
|
73,6º
|
74,9º
|
74,4º
|
|
c
Top tube length
|
583,0
|
585,0
|
598,0
|
600,0
|
629,0
|
631,0
|
645,0
|
647,0
|
|
d
Head tube length
|
100,0
|
100,0
|
100,0
|
100,0
|
110,0
|
110,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
65,6º
|
65,1º
|
65,6º
|
65,1º
|
65,6º
|
65,1º
|
65,6º
|
65,1º
|
|
f
Rake
|
51,0
|
52,0
|
51,0
|
52,0
|
52,0
|
51,0
|
52,0
|
52,0
|
|
g
Trail
|
114,0
|
117,0
|
114,0
|
117,0
|
114,0
|
117,0
|
114,0
|
117,0
|
|
h
Wheelbase
|
1165,0
|
1166,0
|
1180,0
|
1181,0
|
1213,0
|
1213,0
|
1241,0
|
1242,0
|
|
i
Chainstay length
|
427,0
|
429,0
|
427,0
|
429,0
|
427,0
|
429,0
|
427,0
|
429,0
|
|
j
Bottom bracket drop
|
21,0
|
28,0
|
21,0
|
28,0
|
21,0
|
28,0
|
21,0
|
28,0
|
|
k
Stack height
|
602,0
|
606,0
|
602,0
|
606,0
|
612,0
|
616,0
|
625,0
|
629,0
|
|
l
Reach
|
410,0
|
404,0
|
425,0
|
419,0
|
453,0
|
447,0
|
475,0
|
469,0
|
|
m
Standover height
|
751,0
|
745,0
|
753,0
|
747,0
|
764,0
|
758,0
|
774,0
|
768,0
|
|
x
Bottom bracket height
|
352,0
|
345,0
|
352,0
|
345,0
|
352,0
|
345,0
|
352,0
|
345,0
|
|
y
Front center
|
739,0
|
738,0
|
754,0
|
753,0
|
787,0
|
785,0
|
815,0
|
814,0
|
