Trek Slash 9.8 29 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,15 kg
Front travel
160mm
Rear travel
150mm

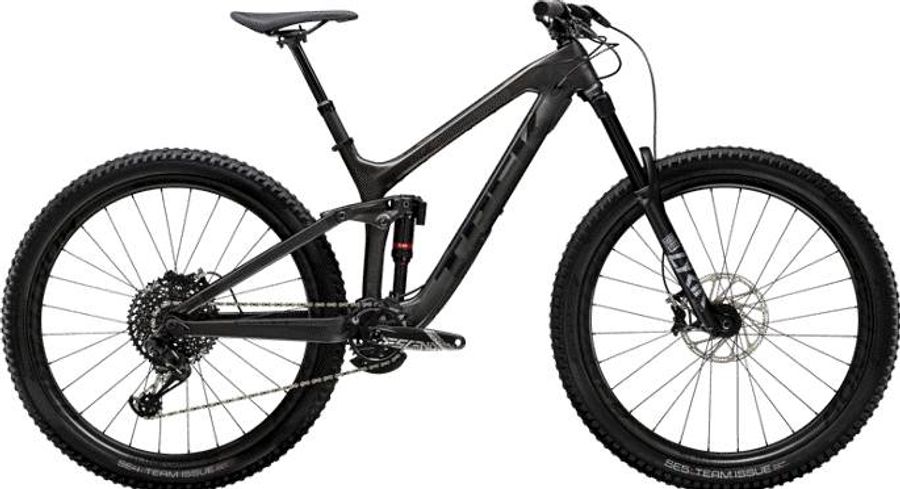

Trek Slash 9.8 29 2020

About the Trek Slash 9.8 29 2020

The Trek Slash 9.8 29 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 13,15 kg.

Features

The Trek Slash 9.8 29 2020 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Elite, alloy lock-on
Components
Steam
Bontrager Line Pro, 35 mm, Knock Block, 0-degree, 50 mm length
Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width
Discs
SRAM CenterLine, 6-bolt, round edge, 180 mm
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
Truvativ Descendant 7k Eagle, DUB, 32T alloy ring, Boost, 175 mm length
Shifter
SRAM GX Eagle, 12-speed
Bottom bracket
SRAM DUB, 92 mm, PressFit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
OCLV Mountain Carbon main frame and stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 150 mm travel
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Lyrik Select+ DebonAir 2003 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SELP-C2
Name
Lyrik Select+
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Wheels
Rims
Bontrager Line Carbon 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Tires
Bontrager SE4 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.40"

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
394,0
394,0
419,0
419,0
470,0
470,0
521,0
521,0
b
Seat tube angle
74,1º
73,6º
74,1º
73,6º
74,1º
73,6º
74,1º
73,6º
c
Top tube length
583,0
585,0
598,0
600,0
629,0
631,0
655,0
657,0
d
Head tube length
100,0
100,0
100,0
100,0
110,0
110,0
125,0
125,0
e
Head tube angle
65,6º
65,1º
65,6º
65,1º
65,6º
65,1º
65,6º
65,1º
f
Rake
51,0
52,0
51,0
52,0
52,0
51,0
52,0
52,0
g
Trail
114,0
117,0
114,0
117,0
114,0
117,0
114,0
117,0
h
Wheelbase
1165,0
1166,0
1180,0
1181,0
1213,0
1213,0
1241,0
1242,0
i
Chainstay length
427,0
429,0
427,0
429,0
427,0
429,0
427,0
429,0
j
Bottom bracket drop
21,0
28,0
21,0
28,0
21,0
28,0
21,0
28,0
k
Stack height
602,0
606,0
602,0
606,0
612,0
616,0
625,0
629,0
l
Reach
410,0
404,0
425,0
419,0
453,0
447,0
475,0
469,0
m
Standover height
751,0
745,0
753,0
747,0
764,0
758,0
775,0
769,0
x
Bottom bracket height
352,0
345,0
352,0
345,0
352,0
345,0
352,0
345,0
y
Front center
739,0
738,0
754,0
753,0
787,0
785,0
815,0
814,0
