Trek Slash 9.8 GX AXS 2022

MTB Enduro
Groupset
SRAM GX Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,57 kg
Front travel
170mm
Rear travel
160mm
Price
$7,899.00

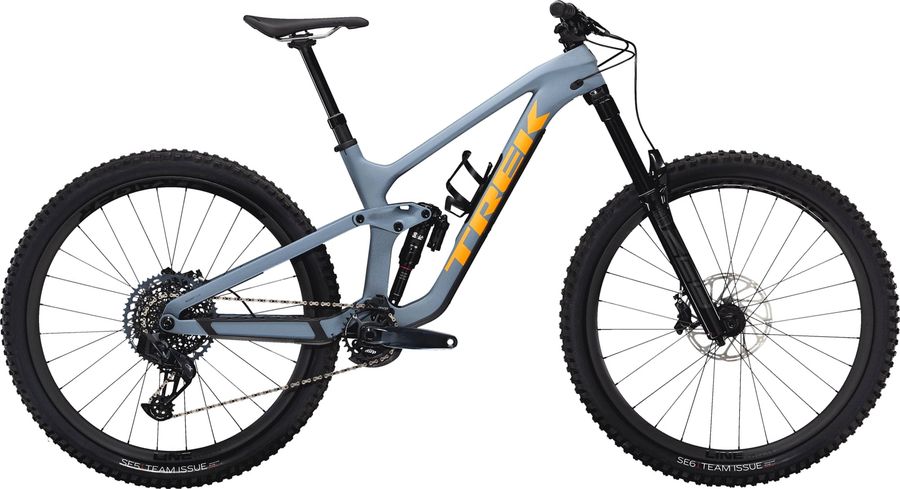

Trek Slash 9.8 GX AXS 2022

About the Trek Slash 9.8 GX AXS 2022

The Trek Slash 9.8 GX AXS 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle AXS drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 14,57 kg.

Features

The Trek Slash 9.8 GX AXS 2022 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Pro, alloy lock-on
Components
Saddle
Bontrager Arvada, austenite rails, 138mm width
Headset
Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seatpost
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, ML, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width
Discs
Size: S, M, ML, L, XL, SRAM CenterLine, 6-bolt, round edge, 180mm; Size: S, M, ML, L, XL, SRAM CenterLine, 6-bolt, round edge, 200mm
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM GX Eagle, DUB MTB Wide, 30T, Boost (55mm chainline), 170 length
Shifter
SRAM GX Eagle AXS, 12 speed
Bottom bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM GX Eagle AXS
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Frameset
Frame
OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, Carbon Armor, shuttle guard, threaded BB, ISCG 05, 34.9mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160mm travel
Front suspension
RockShox ZEB Select+ DebonAir, Dual Position Air 2265 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-SELP-A1
Name
ZEB Select+
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2265
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
NEW Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tires
Size: S, M, ML, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''; Size: S, M, ML, L, XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Rear hub
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12mm thru axle
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
395,0
395,0
420,0
420,0
435,0
435,0
450,0
450,0
500,0
500,0
b
Seat tube angle
76,1º
75,6º
76,1º
75,6º
76,1º
75,6º
76,1º
75,6º
76,1º
75,6º
c
Top tube length
579,0
580,0
604,0
605,0
623,0
624,0
642,0
644,0
678,0
679,0
d
Head tube length
100,0
100,0
100,0
100,0
105,0
105,0
115,0
115,0
140,0
140,0
e
Head tube angle
64,6º
64,1º
64,6º
64,1º
64,6º
64,1º
64,6º
64,1º
64,6º
64,1º
f
Rake
44,0
44,0
35,0
43,0
44,0
43,0
44,0
43,0
44,0
43,0
g
Trail
130,0
134,0
130,0
134,0
130,0
134,0
130,0
134,0
130,0
134,0
h
Wheelbase
1192,0
1192,0
1207,0
1217,0
1237,0
1238,0
1258,0
1259,0
1299,0
1,3e3
i
Chainstay length
430,0
432,0
430,0
432,0
430,0
432,0
430,0
432,0
430,0
432,0
j
Bottom bracket drop
22,0
29,0
22,0
29,0
22,0
29,0
22,0
29,0
22,0
29,0
k
Stack height
613,0
616,0
613,0
617,0
617,0
621,0
626,0
630,0
649,0
653,0
l
Reach
426,0
420,0
451,0
445,0
469,0
464,0
486,0
481,0
516,0
511,0
m
Standover height
706,0
700,0
744,0
738,0
744,0
738,0
754,0
748,0
774,0
768,0
x
Bottom bracket height
352,0
345,0
352,0
345,0
352,0
345,0
352,0
345,0
352,0
345,0
y
Front center
763,0
762,0
778,0
786,0
808,0
807,0
829,0
828,0
870,0
869,0
