Trek Slash 9.9 XTR 2022

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,94 kg
Front travel
170mm
Rear travel
160mm
Price
$11,099.00

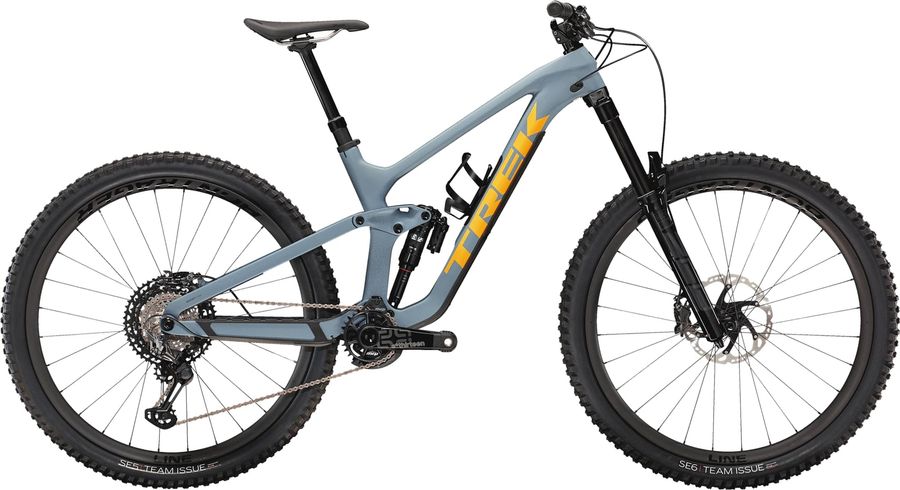

Trek Slash 9.9 XTR 2022

About the Trek Slash 9.9 XTR 2022

The Trek Slash 9.9 XTR 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 13,94 kg.

Features

The Trek Slash 9.9 XTR 2022 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Pro, alloy lock-on
Components
Saddle
Bontrager Arvada, austenite rails, 138mm width
Headset
Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seatpost
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, ML, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Handlebar
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
Discs
Size: S, M, ML, L, XL, Shimano RT86, 180mm, 6-bolt; Size: S, M, ML, L, XL, Shimano RT86, 203mm, 6-bolt
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
E*thirteen LG1 Race Carbon, 30T, Boost (55mm chainline)
Shifter
Shimano XTR M9100, 12 speed
Bottom bracket
E*thirteen BB20-P, BSA threaded, 73mm width
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, Carbon Armor, shuttle guard, threaded BB, ISCG 05, 34.9mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160mm travel
Front suspension
RockShox ZEB Ultimate DebonAir, Dual Position Air 2265 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Grey
Damper type
Charger 2.1 RC2
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-ULT-A1
Name
ZEB Ultimate
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2265
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
NEW Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tires
Size: S, M, ML, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''; Size: S, M, ML, L, XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''

Geometry

Size 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
395,0
395,0
420,0
420,0
435,0
435,0
450,0
450,0
500,0
500,0
b
Seat tube angle
76,1º
75,6º
76,1º
75,6º
76,1º
75,6º
76,1º
75,6º
76,1º
75,6º
c
Top tube length
579,0
580,0
604,0
605,0
623,0
624,0
642,0
644,0
678,0
679,0
d
Head tube length
100,0
100,0
100,0
100,0
105,0
105,0
115,0
115,0
140,0
140,0
e
Head tube angle
64,6º
64,1º
64,6º
64,1º
64,6º
64,1º
64,6º
64,1º
64,6º
64,1º
f
Rake
44,0
44,0
35,0
43,0
44,0
43,0
44,0
43,0
44,0
43,0
g
Trail
130,0
134,0
130,0
134,0
130,0
134,0
130,0
134,0
130,0
134,0
h
Wheelbase
1192,0
1192,0
1207,0
1217,0
1237,0
1238,0
1258,0
1259,0
1299,0
1,3e3
i
Chainstay length
430,0
432,0
430,0
432,0
430,0
432,0
430,0
432,0
430,0
432,0
j
Bottom bracket drop
22,0
29,0
22,0
29,0
22,0
29,0
22,0
29,0
22,0
29,0
k
Stack height
613,0
616,0
613,0
617,0
617,0
621,0
626,0
630,0
649,0
653,0
l
Reach
426,0
420,0
451,0
445,0
469,0
464,0
486,0
481,0
516,0
511,0
m
Standover height
706,0
700,0
744,0
738,0
744,0
738,0
754,0
748,0
774,0
768,0
x
Bottom bracket height
352,0
345,0
352,0
345,0
352,0
345,0
352,0
345,0
352,0
345,0
y
Front center
763,0
762,0
778,0
786,0
808,0
807,0
829,0
828,0
870,0
869,0
