Trek Top Fuel 8 2018

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
12,93 kg
Front travel
100mm
Rear travel
100mm

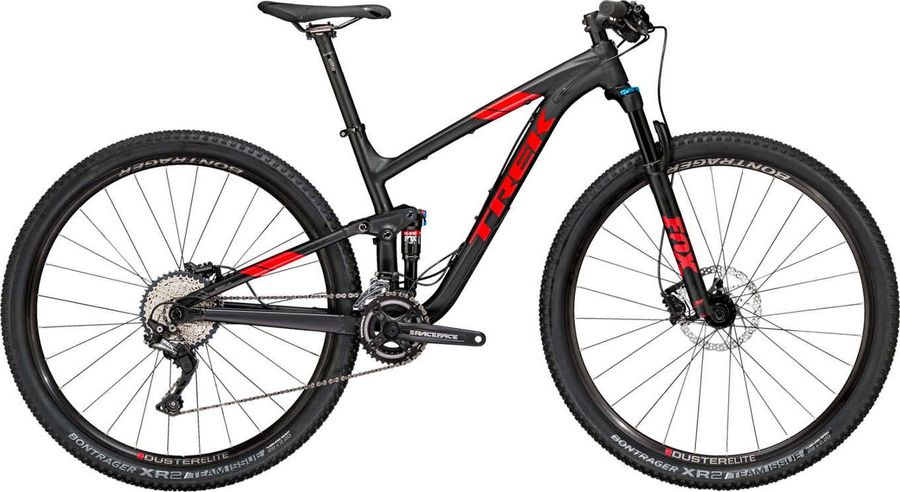

Trek Top Fuel 8 2018

About the Trek Top Fuel 8 2018

The Trek Top Fuel 8 2018 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 22 gears (2x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 12,93 kg.

Features

The Trek Top Fuel 8 2018 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager Race Lite, lock-on
Pedals
Not included
Components
Steam
Bontrager Elite, 31.8mm, 7 degree
Saddle
Bontrager Evoke 2, chromoly rails
Headset
FSA IS-2, 1-1/8˝ top, 1.5˝ bottom
Seatpost
Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset
Handlebar
Bontrager Race Lite, 31.8mm, 5mm rise
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Ride, 36/22
Shifter
Shimano SLX M7000, 11 speed
Bottom bracket
PF92
Front derailleur
Shimano SLX M7020
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
KMC X11
Frameset
Frame
Alpha Platinum Aluminum, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, internal derailleur and dropper post routing, down tube guard, PF92, Boost148 & G2 Geometry on 29ers, 100mm travel
Front suspension
Fox 32 Float Factory
Wheels
Rims
Bontrager Duster Elite 23, Tubeless Ready, 54T Rapid Drive, Boost110 front, Boost148 rear (15.5˝: 142x12 rear, 21T), tubeless strips included, valves sold separately
Tires
Bontrager XR2 Team Issue, Tubeless Ready, 120 tpi, aramid bead, 29x2.20˝ (15.5: 27.5x2.20˝)

Geometry

Size 15.5" Low 17.5" Low 18.5" Low 19.5" Low 21.5" Low
a
Seat tube length
394,0
419,0
445,0
470,0
495,0
b
Seat tube angle
73,5º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
547,0
571,0
587,0
605,0
627,0
d
Head tube length
100,0
90,0
90,0
100,0
120,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
48,0
52,0
52,0
51,0
51,0
g
Trail
80,0
80,0
80,0
80,0
80,0
h
Wheelbase
1058,0
1105,0
1121,0
1138,0
1160,0
i
Chainstay length
421,0
429,0
429,0
429,0
429,0
j
Bottom bracket drop
25,0
39,0
39,0
39,0
39,0
k
Stack height
555,0
571,0
571,0
581,0
600,0
l
Reach
386,0
421,0
437,0
451,0
466,0
m
Standover height
741,0
724,0
718,0
724,0
732,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
638,0
679,0
695,0
712,0
734,0
