Trek Top Fuel 9.9 Race Shop Limited 2018

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
10,02 kg
Front travel
100mm
Rear travel
100mm

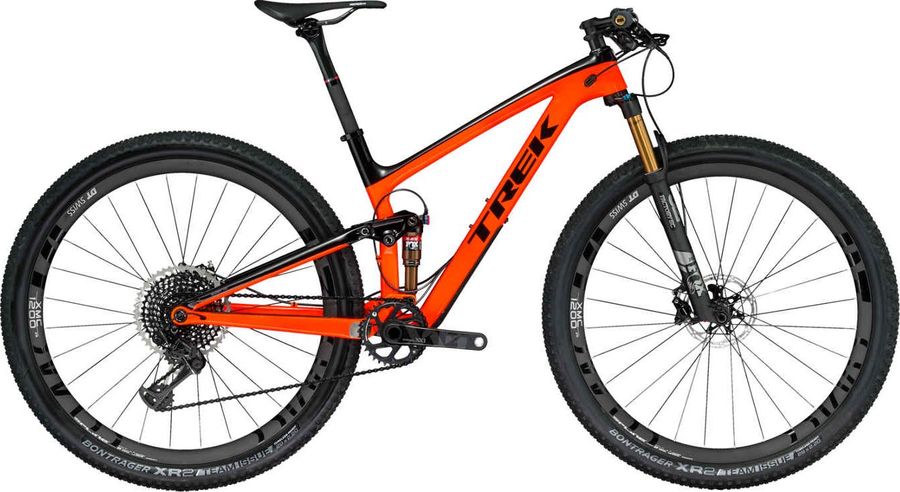

Trek Top Fuel 9.9 Race Shop Limited 2018

About the Trek Top Fuel 9.9 Race Shop Limited 2018

The Trek Top Fuel 9.9 Race Shop Limited 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 10,02 kg.

Features

The Trek Top Fuel 9.9 Race Shop Limited 2018 has 7 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ESI Chunky
Pedals
Not included
Components
Steam
Bontrager Pro, 31.8mm, 7 degree, Blendr compatible
Saddle
Bontrager Montrose Pro, carbon rails
Headset
FSA IS-2, 1-1/8˝ top, 1.5˝ bottom
Seatpost
Bontrager XXX, OCLV Carbon, 31.6mm, zero offset
Handlebar
Bontrager XXX, OCLV Carbon, 31.8mm, zero rise
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle, 34T Direct Mount X-Sync
Shifter
SRAM XX1 Eagle, 12 speed
Bottom bracket
PF92
Cassette
SRAM XG-1295 X01 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
OCLV Mountain Carbon main frame & stays, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, Control Freak internal routing, Carbon Armor, PF92, Boost148 & G2 Geometry on 29ers, 100mm travel
Front suspension
Fox 32 Float Factory
Wheels
Rims
DT Swiss XMC1200 Carbon, 36T Ratchet System, 24mm inner width, Boost110 front, Boost148 rear (15.5˝: 142x12 rear), tubeless strips and valves included
Tires
Bontrager XR2 Team Issue, Tubeless Ready, 120 tpi, aramid bead, 29x2.20˝ (15.5: 27.5x2.20˝)

Geometry

Size 15.5" Low 17.5" Low 18.5" Low 19.5" Low 21.5" Low
a
Seat tube length
394,0
419,0
445,0
470,0
495,0
b
Seat tube angle
73,5º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
547,0
571,0
587,0
605,0
627,0
d
Head tube length
100,0
90,0
90,0
100,0
120,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
48,0
52,0
52,0
51,0
51,0
g
Trail
80,0
80,0
80,0
80,0
80,0
h
Wheelbase
1058,0
1105,0
1121,0
1138,0
1160,0
i
Chainstay length
421,0
429,0
429,0
429,0
429,0
j
Bottom bracket drop
25,0
39,0
39,0
39,0
39,0
k
Stack height
555,0
571,0
571,0
581,0
600,0
l
Reach
386,0
421,0
437,0
451,0
466,0
m
Standover height
741,0
724,0
718,0
724,0
732,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
638,0
679,0
695,0
712,0
734,0
