Trek X-Caliber 8 2022

MTB Cross Country

Groupset

Shimano XT

Frame material

Alloy

Wheel size

27,5" / 29"

Suspension type

Hardtail

Front travel

80mm

Price

$1,214.10

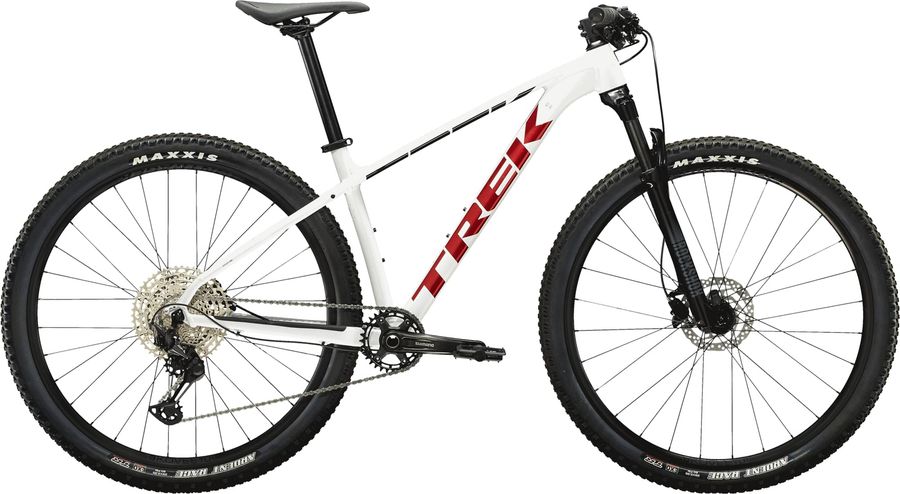

About the Trek X-Caliber 8 2022

The Trek X-Caliber 8 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 , e-thru axle, and hydraulic disc brakes.

Features

The Trek X-Caliber 8 2022 has 5 features listed below.

Boost 110 More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	Bontrager XR Trail Comp, nylon lock-on

Components
Steam	Size: XS, S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, M/L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Saddle	Bontrager Arvada, steel rails, 138mm width
Headset	Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom
Seatpost	Size: XS, S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: M/L, L, XL, XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Handlebar	Size: XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, M, Bontrager alloy, 31.8mm, 5mm rise, 720mm width; Size: M/L, L, XL, XXL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Discs	Size: XS, S, M, M/L, L, XL, XXL, Shimano RT26, 6-bolt,160mm; Size: L, XL, XXL, Shimano RT26, 6-bolt,180mm
Brakes	Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT200 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT201 BL-MT200 Recommended disc brake rotor SM-RT10* SM-RT26*

Drivetrain
Crankset	Size: XS, S, M, Shimano MT511, 30T steel ring, Boost (52mm chainline), 170mm length; Size: M/L, L, XL, XXL, Shimano MT511, 30T steel ring, Boost (52mm chainline), 175mm length
Shifter	Shimano Deore M6100, 12 speed
Bottom bracket	Shimano SM-BB52, 73mm, threaded external bearing
Rear derailleur	Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g) 284 B axle hollow B axle material Stainless steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG 12-speed Lower pulley max 51T Lower pulley min 51T Model RD-M8100-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 12 Upper pulley max 10T Upper pulley min 10T Total capacity 41T
Chain	Shimano CN-M6100 252 g
Average weight (g) 252 Chromizing treatment roller link pin Model CN-M6100 Pin link plate Gray Roller link plate Brown Type HG 12-speed
Cassette	Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish Painted Aluminum spider arm pieces 1 Combination names 10-51T Compatible chain HG 12-speed Lock ring finish Plated Lock ring material Steel Model CS-M6100-12 Steel gear finish Plated Steel gear pieces 12 Type HYPERGLIDE+

Frameset
Frame	Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR
Front suspension	RockShox Judy SL

Wheels
Rims	Size: XS, S, M, M/L, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve; Size: XS, S, M, M/L, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve
Tires	Size: XS, S, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35''; Size: M, M/L, L, XL, XXL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35''
Spokes	14g stainless steel
Rear hub	Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR
Front hub	Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 12

Crank: 30T

Cassette: 10-51T

Speeds: 12s

Gearing

Average

0,59

Average

Compared to similar bikes, the Trek X-Caliber 8 2022 has an excellent uphill performance and a good downhill performance.

Price history

Report incorrect information

Geometry

Size	13.5"	15.5"	17.5"	18.5"	19.5"	21.5"	23"
a Seat tube length	343,0	368,0	419,0	444,0	470,0	521,0	559,0
b Seat tube angle	73,5º	73,5º	73,0º	73,0º	73,0º	73,0º	73,0º
c Top tube length	538,0	549,0	595,0	611,0	631,0	652,0	666,0
d Head tube length	90,0	90,0	90,0	90,0	100,0	120,0	120,0
e Head tube angle	69,3º	69,3º	69,5º	69,5º	69,5º	69,5º	69,5º
f Rake	44,0	44,0	51,0	51,0	51,0	51,0	51,0
g Trail	88,0	88,0	94,0	94,0	94,0	94,0	94,0
h Wheelbase	1030,0	1047,0	1103,0	1119,0	1139,0	1161,0	1175,0
i Chainstay length	419,0	419,0	432,0	432,0	432,0	432,0	432,0
j Bottom bracket drop	58,0	48,0	58,0	58,0	58,0	58,0	58,0
k Stack height	559,0	568,0	592,0	592,0	602,0	621,0	621,0
l Reach	370,0	379,0	412,0	428,0	445,0	460,0	474,0
m Standover height	692,0	718,0	742,0	751,0	751,0	762,0	798,0
x Bottom bracket height	292,0	302,0	311,0	310,0	310,0	310,0	311,0
y Front center	618,0	633,0	677,0	693,0	713,0	735,0	749,0
