Trek X-Caliber 9 2022

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
12,52 kg
Front travel
100mm
Price
$1,493.17

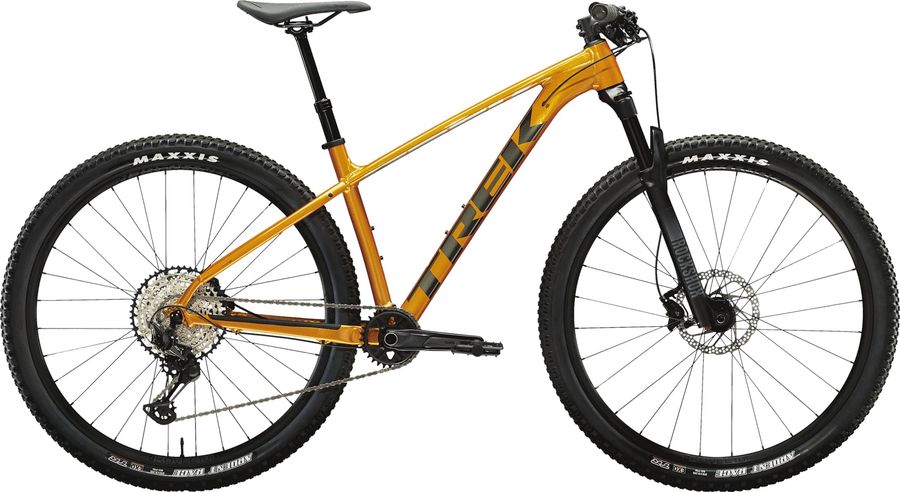

Trek X-Caliber 9 2022

About the Trek X-Caliber 9 2022

The Trek X-Caliber 9 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and e-thru axle. The bike weighs approximately 12,52 kg.

Features

The Trek X-Caliber 9 2022 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Comp, nylon lock-on
Components
Steam
Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, ML, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Saddle
Bontrager Arvada, steel rails, 138mm width
Headset
Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8'' top, 1.5'' bottom
Seatpost
Size: S, M, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: ML, L, XL, XXL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8mm, 5mm rise, 720mm width; Size: ML, L, XL, XXL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Discs
Size: S, M, ML, L, XL, XXL, Shimano RT56, 6-bolt, 180mm; Size: S, M, ML, L, XL, XXL, Shimano RT56, 6-bolt, 160mm
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Size: S, M, Shimano MT611, 30T steel ring, alloy spider, Boost (52mm chainline), 170mm length; Size: ML, L, XL, XXL, Shimano MT611, 30T steel ring, alloy spider, Boost (52mm chainline), 175mm length
Shifter
Shimano SLX M7100, 12 speed
Bottom bracket
Shimano SM-BB52, 73mm, threaded external bearing
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR
Front suspension
RockShox Recon Gold RL Solo Air
Color
Diffusion Black, Gloss Black
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNG-RL-A5
Name
Recon Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Size: S, M, ML, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve; Size: S, M, ML, L, XL, XXL, Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve
Tires
Size: S, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35''; Size: M, ML, L, XL, XXL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35''
Spokes
15g stainless steel
Rear hub
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

Geometry

Size 15.5" 17.5" 18.5" 19.5" 21.5" 23"
a
Seat tube length
368,0
419,0
444,0
470,0
521,0
559,0
b
Seat tube angle
73,5º
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
557,0
603,0
619,0
639,0
660,0
674,0
d
Head tube length
90,0
90,0
90,0
100,0
120,0
120,0
e
Head tube angle
69,3º
69,5º
69,5º
69,5º
69,5º
69,5º
f
Rake
44,0
51,0
51,0
51,0
51,0
51,0
g
Trail
88,0
94,0
94,0
94,0
94,0
94,0
h
Wheelbase
1055,0
1111,0
1127,0
1147,0
1169,0
1183,0
i
Chainstay length
427,0
440,0
440,0
440,0
440,0
440,0
j
Bottom bracket drop
48,0
58,0
58,0
58,0
58,0
58,0
k
Stack height
576,0
600,0
600,0
610,0
629,0
629,0
l
Reach
387,0
420,0
436,0
453,0
468,0
482,0
m
Standover height
726,0
750,0
759,0
759,0
770,0
806,0
x
Bottom bracket height
302,0
311,0
310,0
310,0
310,0
311,0
y
Front center
633,0
677,0
693,0
713,0
735,0
749,0
