Vitus E-Escarpe 2020

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,5 kg
Front travel
140mm
Rear travel
140mm

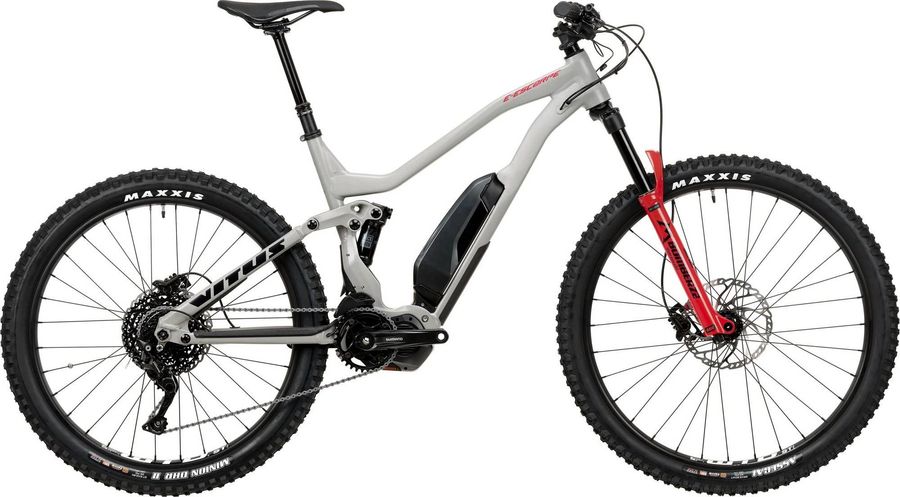

Vitus E-Escarpe 2020

About the Vitus E-Escarpe 2020

The Vitus E-Escarpe 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,5 kg.

Features

The Vitus E-Escarpe 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
VITUS 50mm, 31.8mm bar diameter, 3deg rise, stack 45mm
Saddle
Nukeproof Neutron 0
Headset
ACROS ZS 44mm/56mm
Seatpost
Brand X Ascend 31.6mm, Left hand remote lever, S100mm, M125mm, L150mm, XL170mm
Handlebar
Nukeproof Neutron 25mm Rise, Width - S760mm, M780mm, L800mm, XL800mm, 31.8mm bar diameter
Brakes
Shimano Deore BR-MT501
Drivetrain
Crankset
SHIMANO E8000 34T 165mm, CHAIN LINE 53MM
Motor
Shimano E8010 500wh N/A
Shifter
Shimnao Deore 10 Speed SL-M6000-IR, 10-SPEED RAPIDFIRE, I-Spec II
Bottom bracket
Shimano E7000, N/A
Cassette
Sunrace 10-speed
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC e10 Sport
Frameset
Frame
eEscarpe 29"/27.5" 140mm travel full suspension eMTB frame, Boost, 6061 Alloy, Shimano STEPS compatible
Front suspension
Marzocchi Bomber Z2
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
WTB ST i35, TCS 2.0, 27.5", 35mm inner diameter, 32 hole, Pinned Joint
Tires
MAXXIS ASSEGAI, 29"x2.5"WT, 3C MaxxTerra/EXO+/TR
Spokes
WTB, N/A
Rear hub
VITUS M5ER, Boost 12x148mm, DOUBLE SEALED BEARINGS, 32H, Shimano 11spd Driver Body, 6 BOLT
Front hub
VITUS DHF112 Boost 15x110mm, DOUBLE SEALED BEARINGS, 32H, 6 BOLT

Geometry

Size 38cm 43cm 48cm 51cm
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
592,5
612,5
632,5
652,5
d
Head tube length
110,0
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
114,0
114,0
115,0
114,0
h
Wheelbase
1199,0
1219,0
1240,0
1266,0
i
Chainstay length
443,0
443,0
443,0
443,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
609,0
609,0
619,0
627,5
l
Reach
429,0
449,0
466,0
487,0
m
Standover height
-
-
-
-
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
757,0
777,0
798,0
824,0
