Vitus E-Escarpe VR 2020

E-Bike
MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,6 kg
Front travel
140mm
Rear travel
140mm
Vitus E-Escarpe VR 2020

About the Vitus E-Escarpe VR 2020

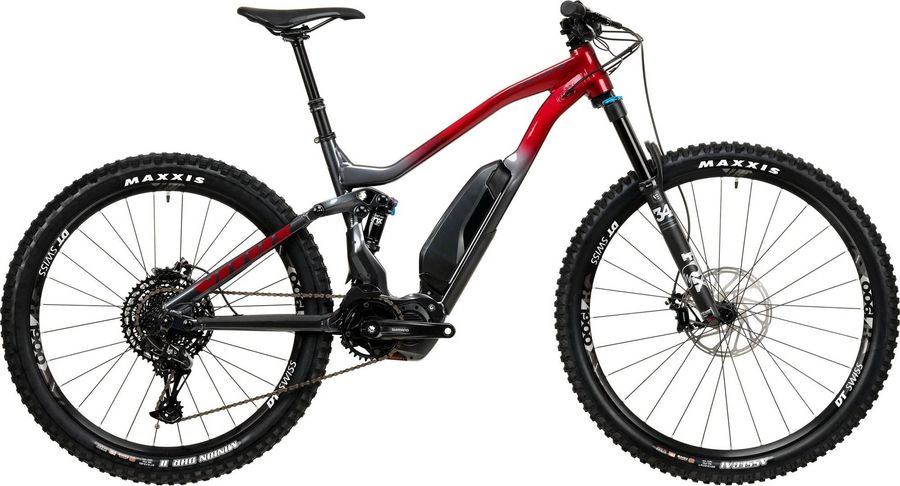

The Vitus E-Escarpe VR 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,6 kg.

Features

The Vitus E-Escarpe VR 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
Nukeproof Neutron 45mm, 31.8mm bar diameter, 0deg rise
Saddle
Nukeproof Neutron 0
Headset
ACROS ZS 44mm/56mm
Seatpost
Brand X Ascend 31.6mm, Left hand remote lever, S100mm, M125mm, L150mm, XL170mm
Handlebar
Nukeproof Horizon "AL7050, 25mm Rise, Back 9deg, up 6deg, Bar Diameter 31.8mm Width - S780mm, M780mm, L800mm, XL800mm"
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
SHIMANO E8000 34T 165mm, CHAIN LINE 53MM
Motor
Shimano E8010 500wh N/A
Shifter
SRAM SX Eagle 12 speed, eMTB single click
Bottom bracket
Shimano E7000, N/A
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
eEscarpe 29"/27.5" 140mm travel full suspension eMTB frame, Boost, 6061 Alloy, Shimano STEPS compatible
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 34 Float Rhythm
Wheels
Rims
DT SWISS H1900 Spline 35, eMTB specific, 27.5", 35mm inner rim width
Tires
MAXXIS ASSEGAI, 29"x2.5"WT, 3C MaxxTerra/EXO+/TR
Spokes
DT SWISS, N/A
Rear hub
DT SWISS H1900 Spline, eMTB specific. Boost 148x12mm, 6-bolt Disc, Shimano 11spd steel freehub
Front hub
DT SWISS H1900 Spline eMTB specific, Boost 110x15mm, 6-bolt Disc

Geometry

Size 38cm 43cm 48cm 51cm
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
592,5
612,5
632,5
652,5
d
Head tube length
110,0
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
114,0
114,0
115,0
114,0
h
Wheelbase
1199,0
1219,0
1240,0
1266,0
i
Chainstay length
443,0
443,0
443,0
443,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
609,0
609,0
619,0
627,5
l
Reach
429,0
449,0
466,0
487,0
m
Standover height
-
-
-
-
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
757,0
777,0
798,0
824,0
