BikeWise

Vitus E-Sentier 2020

E-Bike
MTB Trail
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
20,9 kg
Front travel
120mm

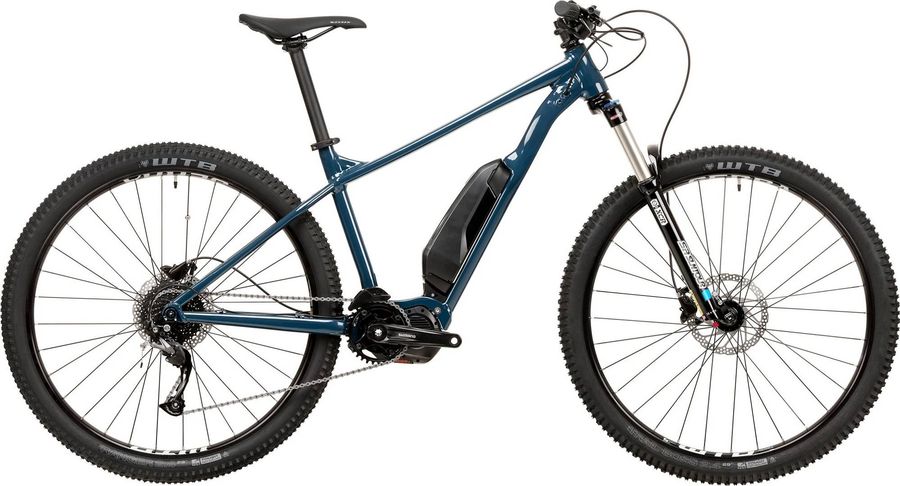

Vitus E-Sentier 2020

About the Vitus E-Sentier 2020

The Vitus E-Sentier 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 9 gears (1x9). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 20,9 kg.

Features

The Vitus E-Sentier 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
VITUS 50mm, 31.8mm bar diameter, 3deg rise, stack 45mm
Saddle
Vitus 0
Headset
ACROS AZX-212-CO R5
Seatpost
Vitus 0
Handlebar
Nukeproof Neutron Nukeproof Alloy Handlebar (Width - S760mm, M780mm, L800mm, XL800mm) bore:31.8mm 25mm Rise
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano, FC-E8000, 165MM, W/ CHAINRING FOR FC-E8050/E8000, SM-CRE80-B, 34T, W/O CG
Motor
Shimano E8014 BATTERY, BT-E8014, FOR STEPS, 418Wh
Shifter
Shimnao Altus 9 Speed M2000 9 Speed Rapidfire
Bottom bracket
Shimano E7000, CYCLE COMPUTER, SC-E7000, CLAMP BAND DIAMETER 31.8MM
Cassette
Sunrace M98 11-36T 9-speed
Chain
KMC X10
Rear derailleur
Shimano Altus RD-M2000 SGS 9s
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M2000
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
E-Sentier Alloy Hardtail, Boost, 6061 Alloy
Front suspension
SR Suntour XCR 34 AIR
Wheels
Rims
WTB Serra i29, 29", 29mm inner rim width,
Tires
WTB, Trail Boss G2 29" x 2.4 COMP
Spokes
WTB, N/A
Rear hub
WTB Serra i29, Boost 148x12mm, 6-bolt Disc, Shimano 11spd Freehub
Front hub
WTB Serra i29 Boost 110x15mm, 6-bolt Disc

Geometry

Size 38cm 43cm 48cm 51cm
a
Seat tube length
380,0
432,0
483,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
597,0
617,0
637,0
662,0
d
Head tube length
105,0
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
-
-
-
-
h
Wheelbase
1156,0
1177,0
1198,0
1224,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
-
-
-
-
l
Reach
412,0
430,0
447,0
470,0
m
Standover height
-
-
-
-
x
Bottom bracket height
329,0
329,0
329,0
329,0
y
Front center
713,0
734,0
755,0
781,0
