Vitus E-Sentier VR 2018

E-Bike

MTB Trail

Groupset

Shimano XT

Frame material

Alloy

Wheel size

27,5"

Suspension type

Hardtail

Front travel

140mm

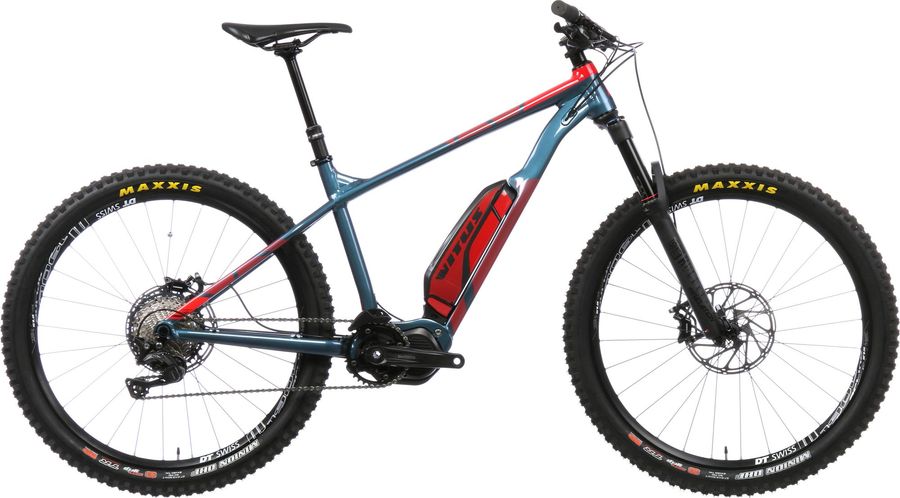

About the Vitus E-Sentier VR 2018

The Vitus E-Sentier VR 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Vitus E-Sentier VR 2018 has 4 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Specifications

Components
Steam	Nukeproof Neutron, 31.8mm, 45mm length
Saddle	Nukeproof Neutron
Headset	FSA, 1 1/8
Seatpost	Brand-X Ascend Stealth Dropper, 31.6mm, S-120mm travel, M/L/XL-150mm travel
Handlebar	Nukeproof alloy, 25mm rise, S/M-780mm, L/XL-800mm
Brakes	SRAM DB3

Drivetrain
Crankset	Shimano E8000, 34t
Shifter	Shimano SLX, 1x11
Bottom bracket	Shimano STEPS E-motor
Rear derailleur	Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g) 271 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-GS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage GS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 39T
Cassette	Shimano SLX CS-M7000-11 HG
Aluminum gear pieces 1 (11-40T) 1 (11-42T) 2 (11-46T) Aluminum spider arm finish Anodized Aluminum spider arm pieces 1 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Plated Lock ring material Steel Model CS-M7000-11 Steel gear finish Shot-Ni Steel gear pieces 10 (11-40T) 10 (11-42T) 9 (11-46T) Type HG Weights 11-40T: 450g 11-42T: 476g 11-46T: 482g
Chain	KMC X11

Frameset
Frame	6061-T6 Alloy, Mechanicaly formed tripple butted 6061-T6 Alloy, BOOST
Front suspension	RockShox Revelation RC DebonAir
Color Diffusion Black, Gloss Black Damper type Motion Control fork offset 37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29") Max tire width (mm) 81 Maximum rotor size 220mm Minimum rotor size 180mm Model FS-RVL-RC-A2 Name Revelation RC Spring DebonAir Travel (mm) 120mm, 130mm, 140mm, 150mm, 160mm Upper tube type 35mm tapered wall aluminum Wheel size 27.5", 29"

Wheels
Rims	DT Swiss, M1900 27.5
Tires	Maxxis Minion DHF 2.5 3C/TR
Spokes	Double butted
Rear hub	DT Swiss, M1900 Spline 30, 12x148mm, Black/Silver
Front hub	DT Swiss, M1900 Spline 30, 15x110mm, Black/Silver

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 11

Crank: 34T

Cassette: 11-42T

Speeds: 11s

Gearing

Average

0,81

Average

3,1

Compared to similar bikes, the Vitus E-Sentier VR 2018 has a good uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG	XL
a Seat tube length	380,0	432,0	483,0	520,0
b Seat tube angle	73,0º	73,0º	73,0º	73,0º
c Top tube length	597,0	617,0	637,0	662,0
d Head tube length	105,0	110,0	120,0	130,0
e Head tube angle	66,0º	66,0º	66,0º	66,0º
f Rake	42,0	42,0	42,0	42,0
g Trail	-	-	-	-
h Wheelbase	1156,0	1177,0	1198,0	1224,0
i Chainstay length	447,0	447,0	447,0	447,0
j Bottom bracket drop	45,0	45,0	45,0	45,0
k Stack height	-	-	-	-
l Reach	412,0	430,0	447,0	470,0
m Standover height	-	-	-	-
x Bottom bracket height	310,0	310,0	310,0	310,0
y Front center	713,0	734,0	755,0	781,0
