BikeWise

Vitus E-Sentier VR 2020

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
20,7 kg
Front travel
120mm

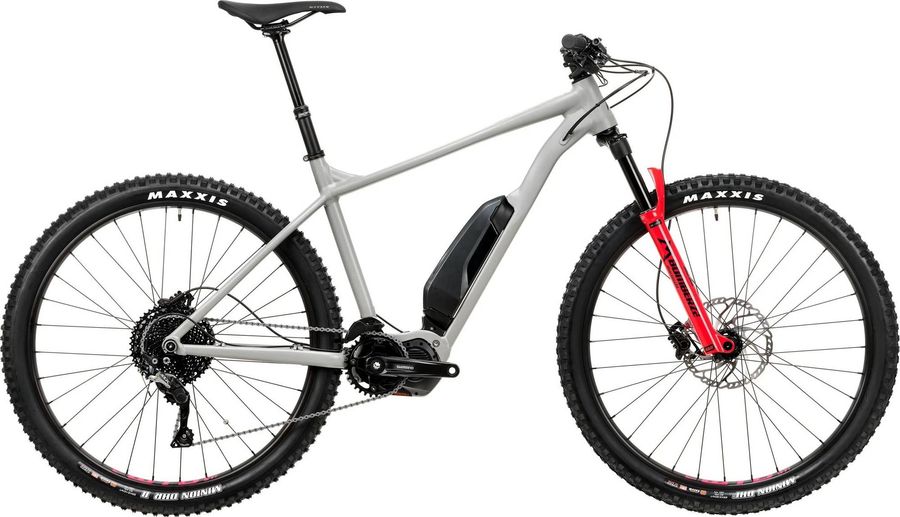

Vitus E-Sentier VR 2020

About the Vitus E-Sentier VR 2020

The Vitus E-Sentier VR 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 20,7 kg.

Features

The Vitus E-Sentier VR 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
Nukeproof Neutron 45mm, 31.8mm bar diameter
Saddle
Vitus 0
Headset
ACROS ZS 44mm/56mm
Seatpost
Brand X Ascend 31.6mm, Left hand remote lever, S125mm, M+LG+XL150mm
Handlebar
Nukeproof Neutron 25mm Rise, Width - S760mm, M780mm, L800mm, XL800mm, 31.8mm bar diameter
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano, CRANK ARM SET, FC-E8000, 165MM SM-CRE80-B, 34T
Motor
Shimano E8014 BATTERY, BT-E8014, FOR STEPS, 418Wh
Shifter
Shimnao Deore 11 Speed SL-M5100-IR, 11-SPEED RAPIDFIRE, I-Spec EV
Bottom bracket
Shimano E7000, CYCLE COMPUTER, SC-E7000, CLAMP BAND DIAMETER 31.8MM
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Chain
KMC 11v
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Frameset
Frame
E-Sentier Alloy Hardtail, Boost, 6061 Alloy
Front suspension
Marzocchi Bomber Z2
Wheels
Rims
WTB ST i30 TCS 2.0, 29", 30mm inner rim width,
Tires
MAXXIS Minion, 29"x2.5"WT, 3C MaxxTerra/EXO+/TR
Spokes
WTB
Rear hub
Vitus M5ER, Boost 148x12mm, 6-bolt Disc, Shimano 32H
Front hub
Vitus DHF112 Boost 110x15mm, 6-bolt Disc 32H

Geometry

Size 38cm 43cm 48cm 51cm
a
Seat tube length
380,0
432,0
483,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
597,0
617,0
637,0
662,0
d
Head tube length
105,0
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
-
-
-
-
h
Wheelbase
1156,0
1177,0
1198,0
1224,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
-
-
-
-
l
Reach
412,0
430,0
447,0
470,0
m
Standover height
-
-
-
-
x
Bottom bracket height
329,0
329,0
329,0
329,0
y
Front center
713,0
734,0
755,0
781,0
