Vitus E-Sommet 2020

E-Bike
MTB Enduro
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,9 kg
Front travel
160mm
Rear travel
160mm

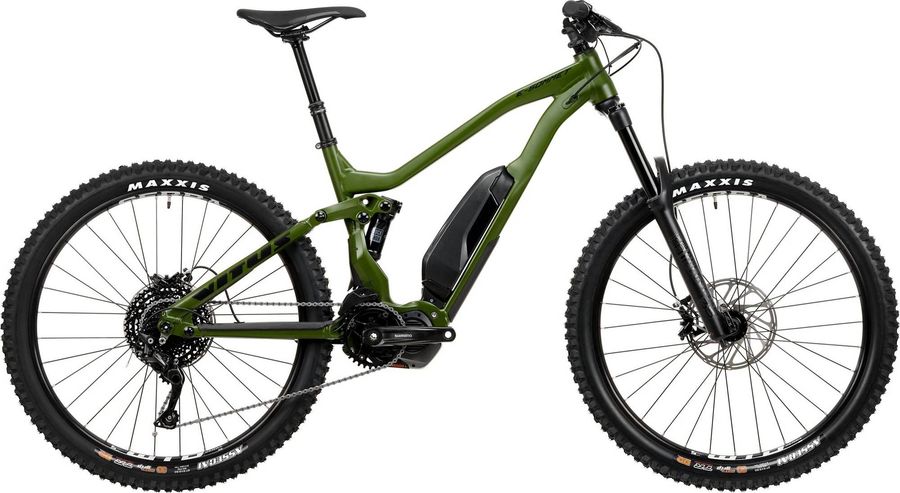

Vitus E-Sommet 2020

About the Vitus E-Sommet 2020

The Vitus E-Sommet 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,9 kg.

Features

The Vitus E-Sommet 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
VITUS 50mm, 31.8mm bar diameter, 3deg rise, stack 45mm
Saddle
Nukeproof Neutron 0
Headset
ACROS ZS 44mm/56mm
Seatpost
Brand X Ascend 31.6mm, Left hand remote lever, S100mm, M125mm, L150mm, XL170mm
Handlebar
Nukeproof Neutron 25mm Rise, Width - S760mm, M780mm, L800mm, XL800mm, 31.8mm bar diameter
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SHIMANO E8000 34T 160mm, CHAIN LINE 53MM
Motor
Shimano E8010 500wh N/A
Shifter
Shimnao Deore 10 Speed SL-M6000-IR, 10-SPEED RAPIDFIRE, I-Spec II
Bottom bracket
Shimano E7000, N/A
Cassette
Sunrace 10-speed
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC e10 Sport
Frameset
Frame
eSommet 27.5" 160mm travel full suspension eMTB frame, Boost, 6061 Alloy, Shimano STEPS compatible
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB SERRA i29, 27.5", 29mm inner rim width
Tires
MAXXIS ASSEGAI, 27.5"x2.5"WT, 3C MaxxGrip/DD/TR
Spokes
WTB
Rear hub
WTB SERRA i29, Boost 148x12mm, 6-bolt Disc, Shimano 11spd Freehub
Front hub
WTB SERRA i29 Boost 110x15mm, 6-bolt Disc

Geometry

Size 38cm 43cm 48cm 51cm
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
592,0
612,0
632,0
655,0
d
Head tube length
110,0
110,0
120,0
130,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
-
-
-
-
h
Wheelbase
1199,0
1219,0
1240,0
1266,0
i
Chainstay length
443,0
443,0
443,0
443,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
-
-
-
-
l
Reach
434,0
454,0
471,0
492,0
m
Standover height
-
-
-
-
x
Bottom bracket height
330,0
330,0
330,0
330,0
y
Front center
757,0
777,0
798,0
824,0
