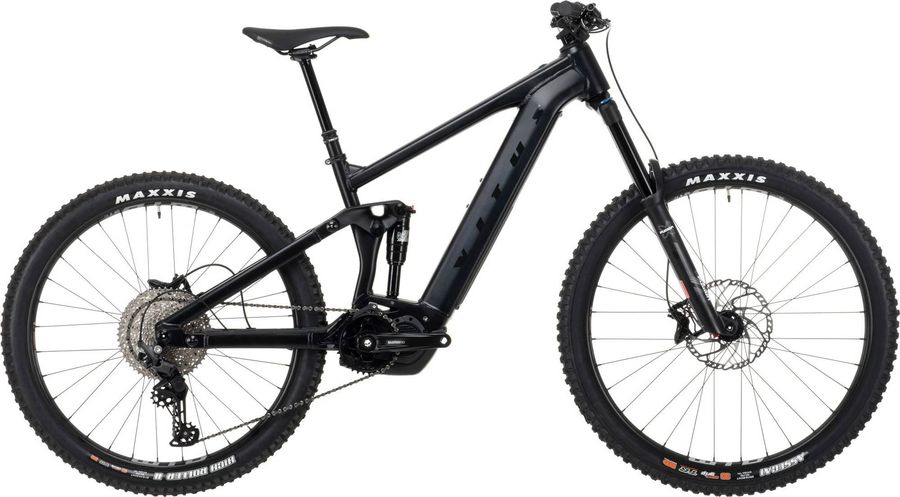

Vitus E-Sommet VR Mountain 2021
The Vitus E-Sommet VR Mountain 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
About the Vitus E-Sommet VR Mountain 2021
The Vitus E-Sommet VR Mountain 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Vitus lock on N/A
|
|---|
|
Steam
|
Nukeproof Neutron alloy 6061, 45mm reach, 0° rise
|
|---|---|
|
Saddle
|
Nukeproof Neutron N/A
|
|
Headset
|
Acros AZX-589 Sealed bearings, ZS56/28.6 – ZS66/40
|
|
Seatpost
|
Brand-X Ascend dropper Remote lever, 31.6mm, S 125mm drop/M 150mm drop/L,XL 170mm drop
|
|
Handlebar
|
Nukeproof Horizon riser Alloy 7050, 9° back sweep, 780mm wide 12mm rise S/M, 800mm wide 25mm rise L/XL
|
|
Discs
|
Shimano RT66 203mm, 6 bolt
|
|
Brakes
|
Shimano BR-MT520
Hydraulic disc brake
4 piston
|
|
|
|
|
Crankset
|
Shimano E8000, 165mm, 34t, 53mm chain line
|
|---|---|
|
Motor
|
Shimano E8035 504Wh N/A
|
|
Shifter
|
Shimano Deore M5100 Rapidfire plus, 11 speed
|
|
Bottom bracket
|
Shimano Integrated, N/A
|
|
Chain
|
KMC 11v
|
|
Rear derailleur
|
Shimano Deore RD-M5120
SGS
11/10s
|
|
42T (2x11/2x10-speed) |
|
|
Cassette
|
Sunrace 11-speed
|
|
Frame
|
E-Sommet Alloy 6061-T6 double butted e-bike, Internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Shimano STEPS compatible
|
|---|---|
|
Front suspension
|
X-Fusion Trace36 RC
|
|
Rear suspension
|
X-Fusion O2 Pro RL
|
|
Rims
|
WTB ST Light i30, TCS 2.0, 32h 27.5" tubeless tape fitted
|
|---|---|
|
Spokes
|
Maxxis High Roller II, 3C MaxxGrip compound, DD, 27.5” x 2.50”
|
|
Rear hub
|
Vitus KT H5ER-SH, Double sealed bearings, 32h, 6 bolt, Boost - 148mm x 12mm thru axle
|
|
Front hub
|
Vitus KT DHF112 Double sealed bearings, 32h, 6 bolt, Boost - 110mm x 15mm thru axle
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
410,0
|
440,0
|
480,0
|
|
b
Seat tube angle
|
77,0º
|
77,0º
|
77,5º
|
78,0º
|
|
c
Top tube length
|
578,0
|
598,0
|
621,0
|
645,0
|
|
d
Head tube length
|
115,0
|
115,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
64,0º
|
64,0º
|
64,0º
|
64,0º
|
|
f
Rake
|
44,0
|
42,0
|
44,0
|
44,0
|
|
g
Trail
|
124,0
|
127,0
|
124,0
|
124,0
|
|
h
Wheelbase
|
1214,0
|
1232,0
|
1264,0
|
1295,0
|
|
i
Chainstay length
|
439,0
|
439,0
|
439,0
|
439,0
|
|
j
Bottom bracket drop
|
35,0
|
35,0
|
35,0
|
35,0
|
|
k
Stack height
|
642,0
|
642,0
|
646,0
|
655,0
|
|
l
Reach
|
427,0
|
447,0
|
475,0
|
502,0
|
|
m
Standover height
|
837,0
|
839,0
|
846,0
|
860,0
|
|
x
Bottom bracket height
|
-
|
-
|
-
|
-
|
|
y
Front center
|
777,0
|
795,0
|
827,0
|
858,0
|
