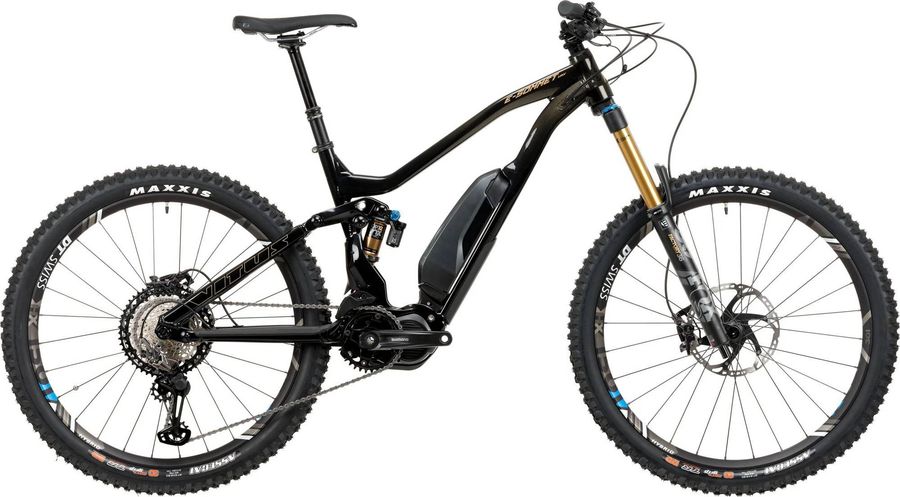

Vitus E-Sommet VRX 2020

E-Bike

MTB Enduro

Groupset

Shimano XTR

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

Weight

22,3 kg

Front travel

110mm

Rear travel

160mm

About the Vitus E-Sommet VRX 2020

The Vitus E-Sommet VRX 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,3 kg.

Features

The Vitus E-Sommet VRX 2020 has 4 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	VITUS Tapered, single alloy clamp, sticky rubber

Components
Steam	Nukeproof Horizon 50mm * 31.8mm
Saddle	WTB Volt 142 RACE 0
Headset	ACROS ZS 44mm/56mm
Seatpost	Brand X Ascend 31.6mm, Left hand remote lever, S100mm, M125mm, L150mm, XL170mm
Handlebar	Nukeproof Horizon 25mm Rise, Width - S760mm, M780mm, L800mm, XL800mm, 31.8mm bar diameter
Brakes	Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g) 410 (BL-M8100) Brake hose color kit Black Brake hose kit SM-BH90-SBM Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M8120 Mount type Post-type Oil SHIMANO Mineral Pad option D03S Resin (w/o fin) Pad option D02S Metal (w/o fin) Pad standard N03A Resin (w/ fin) Pad standard N04C Metal (w/ fin) Pad mount Pad axle Piston 4 Piston material Ceramic Recommended brake lever BL-M8100 BL-T8100

Drivetrain
Crankset	SHIMANO E8000 34T 160mm, CHAIN LINE 53MM
Motor	Shimano E8010 500wh N/A
Shifter	Shimano XT 12 speed SL-M8100-R, I-Spec EV
Bottom bracket	Shimano E8000, N/A
Chain	Shimano CN-M8100 252 g
Average weight (g) 252 Chromizing treatment roller link pin Model CN-M8100 Pin link plate Gray Roller link plate Chromizing Type HG 12-speed
Cassette	Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish Anodized Aluminum gear pieces 2 Aluminum spider arm finish Painted Aluminum spider arm pieces 1 Combination names 10-45T 10-51T Compatible chain HG 12-speed Lock ring finish Anodized Lock ring material Aluminum Model CS-M8100-12 Steel gear finish Plated Steel gear pieces 10 Type HYPERGLIDE+ Weights 10-45T: 461g 10-51T: 470g
Rear derailleur	Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g) 240 B axle finish Anodized B axle hollow B axle material Aluminum Bracket body finish Anodized Bracket body material Aluminum Compatible chain HG 12-speed Lower pulley max 51T Lower pulley min 51T Model RD-M9100-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 12 Upper pulley max 10T Upper pulley min 10T Total capacity 41T

Frameset
Frame	eSommet 27.5" 160mm travel full suspension eMTB frame, Boost, 6061 Alloy, Shimano STEPS compatible
Rear suspension	Fox Float DPX2 Factory EVOL
Front suspension	Fox 36 Float Factory

Wheels
Rims	HX 1501 SPLINE BLACK 30, eMTB specific, 27.5", 30mm inner rim width
Tires	MAXXIS ASSEGAI, 27.5"x2.5"WT, 3C MaxxGrip/DD/TR
Spokes	DT SWISS
Rear hub	HX 1501 SPLINE BLACK 30, eMTB specific. Boost 148x12mm, 6-bolt Disc, Shimano 12spd MICROSPLINE steel freehub
Front hub	HX 1501 SPLINE BLACK 30 eMTB specific, Boost 110x15mm, 6-bolt Disc

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XTR 1 × 12

Crank: 34T

Cassette: 10-51T

Speeds: 12s

Gearing

Average

0,67

Average

3,4

Compared to similar bikes, the Vitus E-Sommet VRX 2020 has a good uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	38cm	43cm	48cm	51cm
a Seat tube length	382,0	433,0	483,0	523,0
b Seat tube angle	75,0º	75,0º	75,0º	75,0º
c Top tube length	592,0	612,0	632,0	655,0
d Head tube length	110,0	110,0	120,0	130,0
e Head tube angle	65,5º	65,5º	65,5º	65,5º
f Rake	42,0	42,0	42,0	42,0
g Trail	-	-	-	-
h Wheelbase	1199,0	1219,0	1240,0	1266,0
i Chainstay length	443,0	443,0	443,0	443,0
j Bottom bracket drop	25,0	25,0	25,0	25,0
k Stack height	-	-	-	-
l Reach	434,0	454,0	471,0	492,0
m Standover height	-	-	-	-
x Bottom bracket height	330,0	330,0	330,0	330,0
y Front center	757,0	777,0	798,0	824,0
