Vitus E-Sommet VRX Mountain 2021

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,31 kg
Front travel
170mm

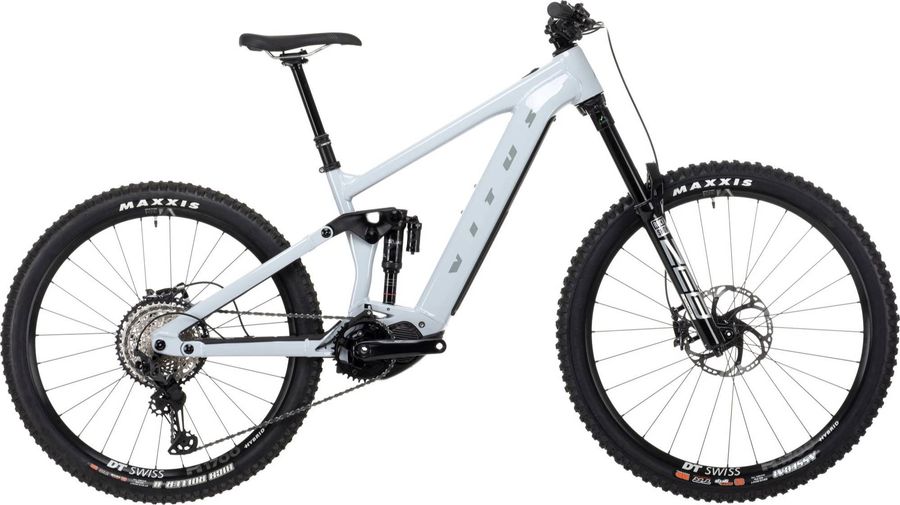

Vitus E-Sommet VRX Mountain 2021

About the Vitus E-Sommet VRX Mountain 2021

The Vitus E-Sommet VRX Mountain 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 24,31 kg.

Features

The Vitus E-Sommet VRX Mountain 2021 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Vitus lock on N/A
Components
Steam
Nukeproof Neutron alloy 6061, 45mm reach, 0° rise
Saddle
WTB Volt Medium 142mm x 265mm, Cro-moly rails
Headset
Acros AZX-589 Sealed bearings, ZS56/28.6 – ZS66/40
Seatpost
Brand-X Ascend dropper Remote lever, 31.6mm, S 125mm drop/M 150mm drop/L,XL 170mm drop
Handlebar
Nukeproof Horizon riser Alloy 7050, 9° back sweep, 780mm wide 12mm rise S/M, 800mm wide 25mm rise L/XL
Discs
Shimano RT76 203mm, 6 bolt
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano M8150, 165mm, 34t, 53mm chain line
Motor
Shimano E8036 630Wh N/A
Shifter
Shimano XT M8100 Rapidfire plus, 12 speed
Bottom bracket
Shimano Integrated, N/A
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
E-Sommet Alloy 6061-T6 double butted e-bike, Internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Shimano STEPS compatible
Rear suspension
RockShox Super Deluxe Select 440 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-SEL-B2
Name
Super Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
440
Front suspension
RockShox ZEB Ultimate DebonAir, Dual Position Air 2265 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Grey
Damper type
Charger 2.1 RC2
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-ULT-A1
Name
ZEB Ultimate
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2265
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss H1700, SPLINE BLACK 27.5"
Tires
DT Swiss, N/A
Spokes
Maxxis High Roller II, 3C MaxxGrip compound, DD, 29” x 2.50”
Rear hub
DT Swiss, Shimano microspline driver, Boost – 148mm x 12mm thru axle
Front hub
DT Swiss Boost – 110mm x 15mm thru axle

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
410,0
440,0
480,0
b
Seat tube angle
77,0º
77,0º
77,5º
78,0º
c
Top tube length
578,0
598,0
621,0
645,0
d
Head tube length
115,0
115,0
120,0
130,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
44,0
42,0
44,0
44,0
g
Trail
124,0
127,0
124,0
124,0
h
Wheelbase
1214,0
1232,0
1264,0
1295,0
i
Chainstay length
439,0
439,0
439,0
439,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
642,0
642,0
646,0
655,0
l
Reach
427,0
447,0
475,0
502,0
m
Standover height
837,0
839,0
846,0
860,0
x
Bottom bracket height
-
-
-
-
y
Front center
777,0
795,0
827,0
858,0
