Vitus Escarpe 2018

MTB Trail

Groupset

Shimano Deore

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

Weight

14,8 kg

Front travel

150mm

Rear travel

140mm

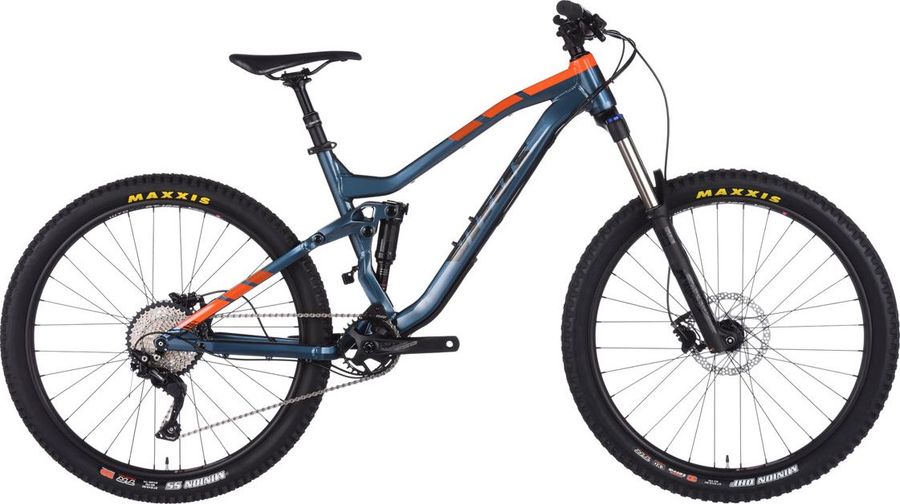

About the Vitus Escarpe 2018

The Vitus Escarpe 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,8 kg.

Features

The Vitus Escarpe 2018 has 4 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Specifications

Components
Steam	Vitus alloy, 50mm
Saddle	Nukeproof Neutron
Headset	FSA, 1 1/8
Seatpost	Brand-X Ascend Stealth Dropper, 31.6mm, S-120mm travel, M/L/XL-150mm travel
Handlebar	Nukeproof alloy, 25mm rise, S/M-780mm, L/XL-800mm
Brake lever	Shimano M395
Brakes	Shimano Alivio BR-M395

Drivetrain
Crankset	FSA Gamma Pro Mega Exo, 170mm, 32t
Shifter	Shimano Deore, 1x10
Bottom bracket	FSA, Mega Exo (BSA), 73mm
Rear derailleur	Shimano Deore RD-M6000-GS GS 10s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 10-speed Lower pulley max 42T Lower pulley min 42T Model RD-M6000-GS P axle finish Painted P axle material Steel pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage GS Speeds 10 Upper pulley max 11T Upper pulley min 11T Total capacity 41T
Chain	KMC X10
Cassette	Shimano Deore CS-HG500-10

Frameset
Frame	6061-T6 Alloy, 140mm Suspension travel, 6061-T6 Alloy, BOOST
Front suspension	RockShox Recon RL Solo Air
Color Diffusion Black, Gloss Black, Gloss White fork offset 42mm (27.5"), 46mm (29"), 51mm (29") Max tire width (mm) 62, 81 Maximum rotor size 220mm Minimum rotor size 160mm Model FS-RCN-RL-A1 Name Recon RL Spring Solo Air Travel (mm) 100mm, 120mm, 130mm, 140mm, 150mm, 80mm Upper tube type 32mm straight wall steel Wheel size 27.5", 29"
Rear suspension	RockShox Deluxe R
Body eyelet Bearing, No Bushing, Standard Compression tune L, L3, M Eye to eye stroke 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65 Model RS-DLX-R-B1 Name Deluxe R Rebound tune L, M Shaft eyelet Bearing, Standard, Trunnion

Wheels
Rims	WTB, TCS, 27.5
Tires	Maxxis Minion DHF 2.3 3C/EXO/TR (FR) MINION SS 2.3 TR/DD (RR), Maxx Terra compound
Spokes	Double butted
Rear hub	Novatec, 12x148mm, 32h, 6 bolt
Front hub	Novatec, 15x110mm, 32h, 6 bolt

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Deore 1 × 10

Crank: 32T

Cassette: 11-42T

Speeds: 10s

Gearing

Average

0,77

Average

2,91

Compared to similar bikes, the Vitus Escarpe 2018 has a good uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG	XL
a Seat tube length	382,0	433,0	483,0	523,0
b Seat tube angle	74,5º	74,5º	74,5º	74,5º
c Top tube length	599,0	619,0	639,0	664,0
d Head tube length	110,0	120,0	130,0	130,0
e Head tube angle	66,0º	66,0º	66,0º	66,0º
f Rake	42,0	42,0	42,0	42,0
g Trail	116,0	116,0	116,0	116,0
h Wheelbase	1165,0	1186,5	1208,0	1233,0
i Chainstay length	434,0	434,0	434,0	434,0
j Bottom bracket drop	20,0	20,0	20,0	20,0
k Stack height	588,0	597,0	607,0	607,0
l Reach	434,0	452,0	469,0	494,0
m Standover height	-	-	-	-
x Bottom bracket height	335,0	335,0	335,0	335,0
y Front center	732,0	753,0	775,0	800,0
