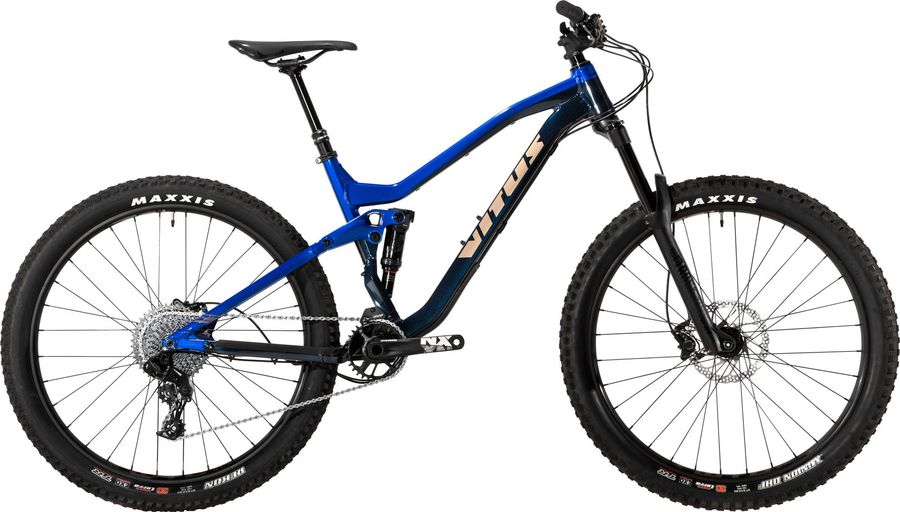

Vitus Escarpe 27 2019

Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Vitus Escarpe 27 2019

About the Vitus Escarpe 27 2019

The Vitus Escarpe 27 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.


Features

The Vitus Escarpe 27 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Vitus, 50mm
Saddle
Nukeproof Neutron
Headset
Nukeproof
Seatpost
Brand X Ascend, 31.6mm - Drop S:100mm M: 120mm L & XL: 150mm
Handlebar
Nukeproof Neutron, 31.8mm 25mm rise Widths - S 780mm M 780mm L 800mm XL 800mm
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM NX, 170mm, 32T
Shifter
SRAM NX, 1x11
Bottom bracket
SRAM
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
KMC X11
Cassette
Sunrace 11-speed
Frameset
Frame
6061-T6 Alloy, long, slack & low modern geometry
Rear suspension
RockShox Deluxe R
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L3, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-R-B1
Name
Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i29
Tires
Maxxis Minion DHF (F) Rekon (R), 3C Maxx Terra, EXO/TR, 27.5x2.6” (F) TR/Double Down, 27x2.6” (R)
Rear hub
Novatec D462SB, SL-S5S-B12-11S, 32H, 148x12mm Boost
Front hub
Novatec D791S, B-B15, 32H, 110x15mm Boost

Geometry

Size SM MD LG XL
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
599,0
619,0
639,0
664,0
d
Head tube length
110,0
120,0
130,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
116,0
116,0
116,0
116,0
h
Wheelbase
1165,0
1186,5
1208,0
1233,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
588,0
597,0
607,0
607,0
l
Reach
434,0
452,0
469,0
494,0
m
Standover height
-
-
-
-
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
732,0
753,0
775,0
800,0
