BikeWise

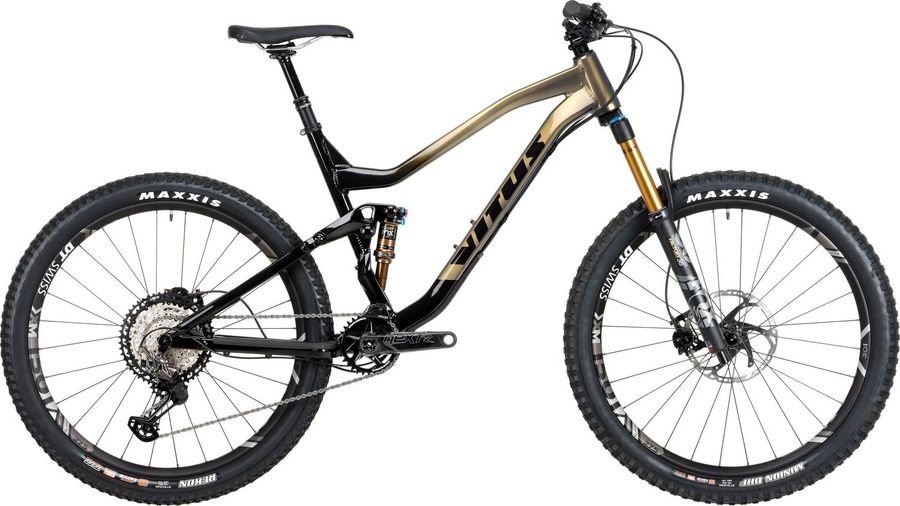

Vitus Escarpe 27 VRX 2020

MTB Trail
Groupset
Shimano XTR
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,1 kg
Front travel
150mm
Rear travel
140mm
Vitus Escarpe 27 VRX 2020

About the Vitus Escarpe 27 VRX 2020

The Vitus Escarpe 27 VRX 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 15,1 kg.

Features

The Vitus Escarpe 27 VRX 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
Nukeproof Horizon 50mm * 31.8mm
Saddle
WTB Volt 142 RACE 0
Headset
ACROS ZS 44mm/56mm
Seatpost
Brand X Ascend 31.6mm, Left hand remote lever, S100mm, M125mm, L&XL150mm
Handlebar
Nukeproof Horizon AL7050, 25mm Rise, Back 9deg, up 6deg, Bar Diameter 31.8mm Width - S780mm, M780mm, L800mm, XL800mm
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Raceface NEXT R carbon, 32T shimano 12 speed, 170mm
Shifter
Shimano XT 12 speed SL-M8100-R, I-Spec EV
Bottom bracket
Raceface BSA 73mm, Ø30mm
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
KMC Z9
Frameset
Frame
Escarpe 27.5" 140mm travel full suspension frame, Boost, 6061 Alloy
Rear suspension
Fox Float DPS Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
XM1501 Spline 30 27.5", 30mm inner rim width, CENTER LOCK, Boost 110x15mm
Tires
Maxxis Minion DHF, 27.5"x2.6", 3C MaxxTerra, EXO+, TR
Spokes
DT SWISS
Rear hub
XM1501 Spline
Front hub
XM1501 Spline

Geometry

Size SM MD LG XL
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
599,0
619,0
639,0
664,0
d
Head tube length
110,0
120,0
130,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
39,0
39,0
39,0
39,0
g
Trail
116,0
116,0
116,0
116,0
h
Wheelbase
1165,0
1186,5
1208,0
1233,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
588,0
597,0
607,0
607,0
l
Reach
434,0
452,0
469,0
494,0
m
Standover height
-
-
-
-
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
732,0
753,0
775,0
800,0
