BikeWise

Vitus Escarpe 29 VRX 2019

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm

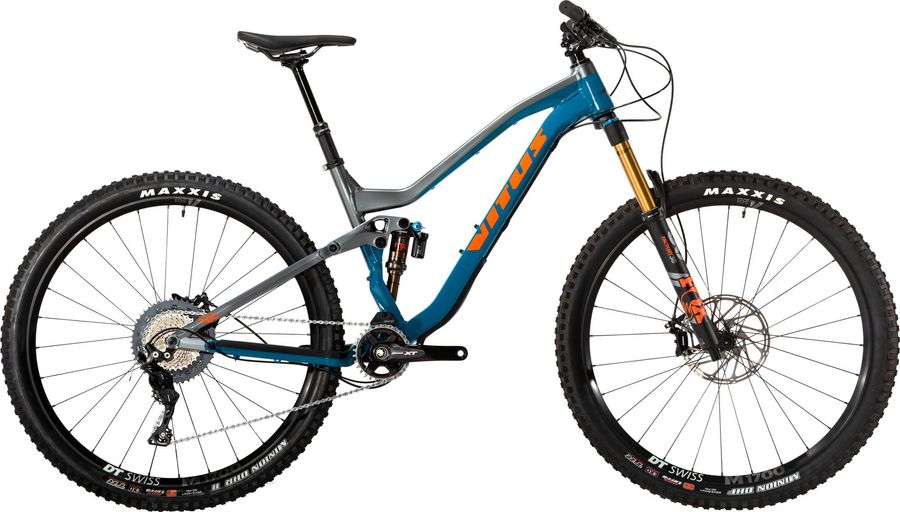

Vitus Escarpe 29 VRX 2019

About the Vitus Escarpe 29 VRX 2019

The Vitus Escarpe 29 VRX 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Vitus Escarpe 29 VRX 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Nukeproof Horizon, 50mm
Saddle
Nukeproof Horizon SL
Headset
Nukeproof
Seatpost
Brand X Ascend, 31.6mm - Drop S:100mm M: 120mm L & XL: 150mm
Handlebar
Nukeproof Horizon, 31.8mm 25mm rise Widths - S 780mm M 780mm L 800mm XL 800mm
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Shimano XT M8000, 170mm, 32T
Shifter
Shimano XT M8000, 11 speed
Bottom bracket
Shimano
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
6061-T6 Alloy, long, slack & low modern geometry
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT Swiss M1700 Spline 30
Tires
Maxxis Minion DHF (F) Minion DHR II (R), 29 x 2.5WT 3C Maxx Terra / EXO / TR (F) 29 x 2.4WT 3C MaxxTerra / EXO / TR(R)
Rear hub
DT Swiss M1700 Spline 30, 148x12mm Boost
Front hub
DT Swiss M1700 Spline 30, 110x15mm Boost

Geometry

Size SM MD LG XL
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
599,0
619,0
639,0
664,0
d
Head tube length
110,0
120,0
130,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
115,0
116,0
115,0
115,0
h
Wheelbase
1194,0
1215,0
1237,0
1262,0
i
Chainstay length
449,0
449,0
449,0
449,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
619,0
628,0
637,0
637,0
l
Reach
431,0
449,0
466,0
491,0
m
Standover height
-
-
-
-
x
Bottom bracket height
344,0
344,0
344,0
344,0
y
Front center
747,0
768,0
790,0
815,0
