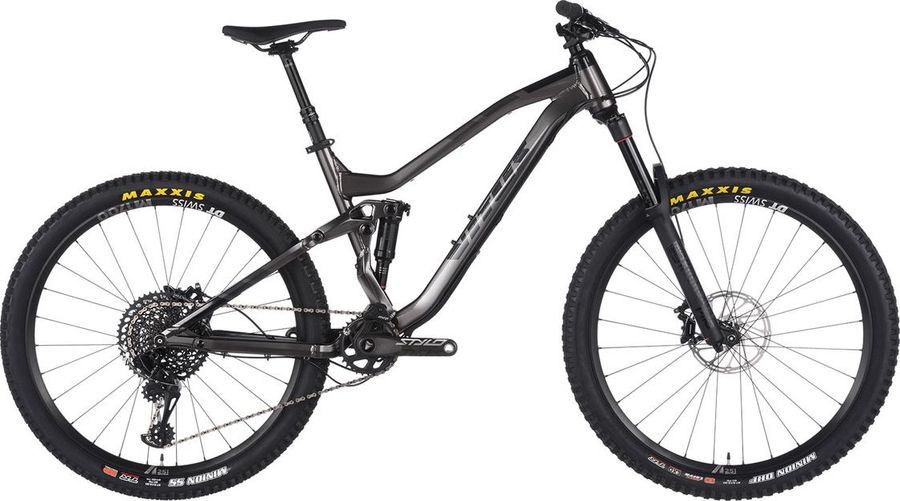

Vitus Escarpe VRX 2018

MTB Trail
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,9 kg
Front travel
150mm
Rear travel
140mm
Vitus Escarpe VRX 2018

About the Vitus Escarpe VRX 2018

The Vitus Escarpe VRX 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,9 kg.

Features

The Vitus Escarpe VRX 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Nukeproof Neutron, 31.8mm, 45mm length
Saddle
Nukeproof Neutron
Headset
FSA, 1 1/8
Seatpost
Rockshox Reverb stealth, 31.6mm, S-125mm travel, M/L/XL-150mm travel
Handlebar
Nukeproof Horizon alloy, 25mm rise, S/M-780mm, L/XL-800mm
Brake lever
SRAM DB
Brakes
SRAM DB3
Drivetrain
Crankset
SRAM Stylo Eagle carbon, 148x24mm, 170mm, 34t
Shifter
SRAM GX Eale, 12 speed
Bottom bracket
SRAM GXP, (BSA), 73mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
6061-T6 Alloy, 140mm Suspension travel, 6061-T6 Alloy, BOOST
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Wheels
Rims
DT Swiss, E1700 27.5
Tires
Maxxis Minion DHF 2.3 3C/EXO/TR (FR) MINION SS 2.3 TR/DD (RR), Maxx Terra compound
Spokes
Double butted
Rear hub
DT Swiss, E1700 Spline 30, 12x148mm, 6 bolt, Black/Silver, XD Driver
Front hub
DT Swiss, E1700 Spline 30, 15x110mm, 6 bolt, Black/Silver

Geometry

Size SM MD LG XL
a
Seat tube length
382,0
433,0
483,0
523,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
599,0
619,0
639,0
664,0
d
Head tube length
110,0
120,0
130,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
116,0
116,0
116,0
116,0
h
Wheelbase
1165,0
1186,5
1208,0
1233,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
588,0
597,0
607,0
607,0
l
Reach
434,0
452,0
469,0
494,0
m
Standover height
-
-
-
-
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
732,0
753,0
775,0
800,0
