Vitus Mythique 27 VR Mountain 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,82 kg
Front travel
130mm

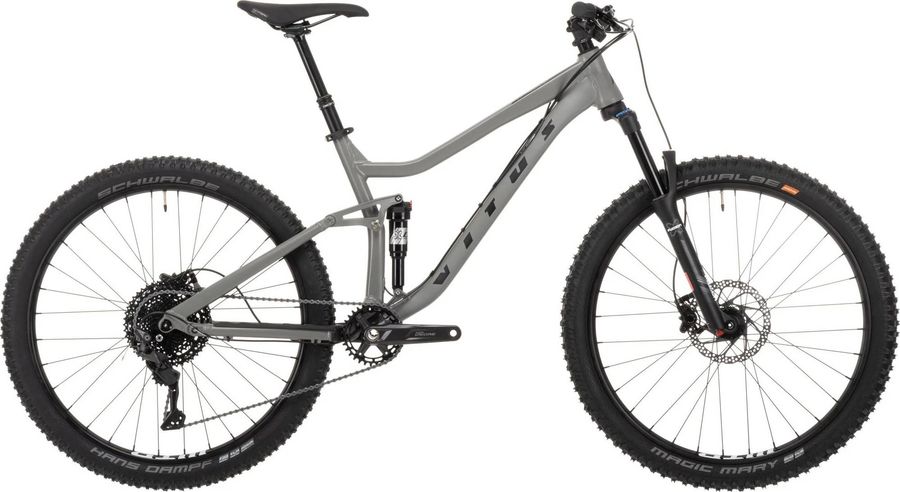

Vitus Mythique 27 VR Mountain 2021

About the Vitus Mythique 27 VR Mountain 2021

The Vitus Mythique 27 VR Mountain 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,82 kg.

Features

The Vitus Mythique 27 VR Mountain 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Vitus lock on N/A
Components
Steam
Vitus 50mm Alloy, 50mm reach, 3° rise
Saddle
Nukeproof Neutron N/A
Headset
Acros AZX-212 AZX-212-CO, sealed bearings, ZS44/28.6 – ZS56/40
Seatpost
Brand-X Ascend dropper Remote lever, 31.6mm, S 100mm drop/M 120mm drop/L,XL 150mm drop
Handlebar
Nukeproof Neutron V2 riser 6061 alloy, 25mm rise, 9° back sweep, 760mm wide S/M, 780mm wide L/XL 31.8mm
Discs
Shimano RT56, 180mm, 6 bolt
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano Deore M5100, 32t, 170mm
Shifter
Shimano Deore M4100 Rapidfire plus, 10 speed
Bottom bracket
Shimano BSA, N/A
Cassette
Sunrace 10-speed
Chain
KMC X10
Rear derailleur
Shimano Deore RD-M5120 SGS 11/10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Lower pulley max
46T (1x11/1x10-speed)
42T (2x11/2x10-speed)
Lower pulley min
42T
Model
RD-M5120-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
11/10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Frameset
Frame
Mythique Alloy 6061, Post mount disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle
Front suspension
X-Fusion RC32
Rear suspension
X-Fusion O2 Pro RL
Wheels
Rims
WTB ST i30 TCS 2.0, 27.5”, 32h TCS tubeless tape fitted
Tires
Schwalbe Magic Mary, Snakeskin, TL Easy, E-25, Addix soft, 27.5” x 2.35”
Spokes
Vitus N/A
Rear hub
Vitus KT H5ER-SH, Double sealed bearings, 32h, 6 bolt, 148mm x 12mm thru axle
Front hub
Vitus KT DHF112 Double sealed bearings, 32h, 6 bolt, 110mm x 15mm thru axle

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
433,0
470,0
510,0
b
Seat tube angle
76,82º
76,69º
76,55º
76,42º
c
Top tube length
569,77
591,24
612,71
639,18
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
66,54º
66,54º
66,54º
66,54º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
104,0
104,0
104,0
104,0
h
Wheelbase
1161,07
1182,83
1204,58
1231,33
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
22,3
22,29
22,29
22,28
k
Stack height
576,9
586,07
595,23
604,39
l
Reach
433,63
451,39
469,16
491,92
m
Standover height
-
-
-
-
x
Bottom bracket height
333,0
333,0
333,0
333,0
y
Front center
732,0
754,0
775,0
802,0
