Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,6 kg
Front travel
140mm
Rear travel
140mm

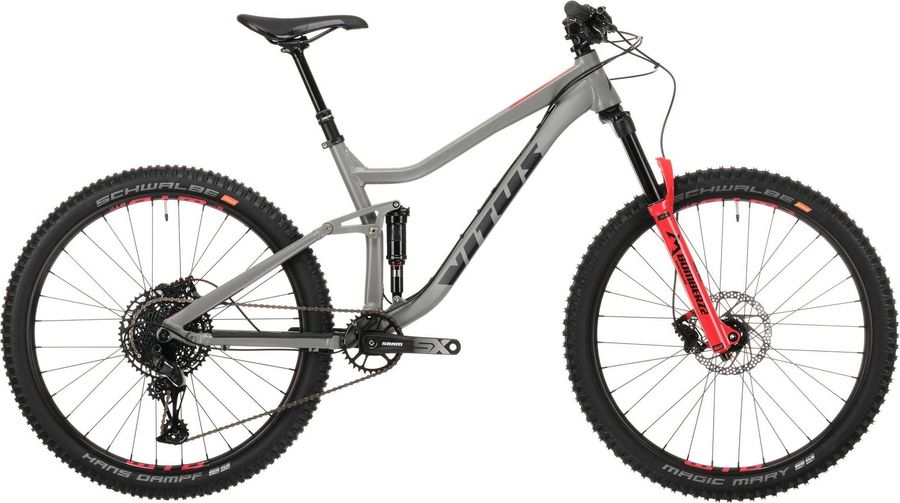

About the Vitus Mythique 27 VRX 2020
The Vitus Mythique 27 VRX 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,6 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
VITUS Tapered, single alloy clamp, sticky rubber
|
|---|
|
Steam
|
Nukeproof Neutron 45mm, 31.8mm bar diameter, 0deg rise
|
|---|---|
|
Saddle
|
Nukeproof Neutron N/A
|
|
Headset
|
ACROS ZS 44mm/56mm
|
|
Seatpost
|
Brand X Ascend 31.6mm, Left hand remote lever, S100mm, M125mm, L&XL150mm
|
|
Handlebar
|
Nukeproof Neutron 25mm Rise, Width - S760mm, M780mm, L800mm, XL800mm, 31.8mm bar diameter
|
|
Brakes
|
Shimano Deore BR-MT501
|
|
Crankset
|
SRAM SX Eagle, 32T, 170mm, GXP 73mm, 53mm BOOST chainline, Powerspline
|
|---|---|
|
Shifter
|
SRAM SX Eagle N/A
|
|
Bottom bracket
|
SRAM SX Eagle, Theaded 73mm BSA, Powerspline
|
|
Cassette
|
SRAM SX Eagle
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Chain
|
KMC Z9
|
|
Frame
|
Mythique 27.5" 140mm travel full suspension frame, "Horst Link suspension system, Boost axle spacing, 6061 alloy "
|
|---|---|
|
Front suspension
|
Marzocchi Bomber Z2
|
|
Rear suspension
|
RockShox Monarch R
205 g
|
|
|
|
|
Rims
|
WTB STlight i30 TCS 2.0, 27.5", 30mm inner diameter, 32 hole, Sleeved Joint
|
|---|---|
|
Tires
|
SCHWALBE MAGIC MARY Evo, 27.5" x 2.35", SnakeSkin, TLE, ADDIX Soft
|
|
Spokes
|
14G STAINLESS DB BLACK BLACK BRASS NIPPLES
|
|
Rear hub
|
VITUS M5ER, Boost 12x148mm, DOUBLE SEALED BEARINGS, 32H, Shimano 11spd Driver Body, 6 BOLT
|
|
Front hub
|
VITUS DHF112 Boost 15x110mm, DOUBLE SEALED BEARINGS, 32H, 6 BOLT
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
433,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
76,82º
|
76,69º
|
76,55º
|
76,42º
|
|
c
Top tube length
|
569,77
|
591,24
|
612,71
|
639,18
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
66,54º
|
66,54º
|
66,54º
|
66,54º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
104,0
|
104,0
|
104,0
|
104,0
|
|
h
Wheelbase
|
1161,07
|
1182,83
|
1204,58
|
1231,33
|
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
22,3
|
22,29
|
22,29
|
22,28
|
|
k
Stack height
|
576,9
|
586,07
|
595,23
|
604,39
|
|
l
Reach
|
433,63
|
451,39
|
469,16
|
491,92
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
333,0
|
333,0
|
333,0
|
333,0
|
|
y
Front center
|
732,0
|
754,0
|
775,0
|
802,0
|
