Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,6 kg
Front travel
140mm

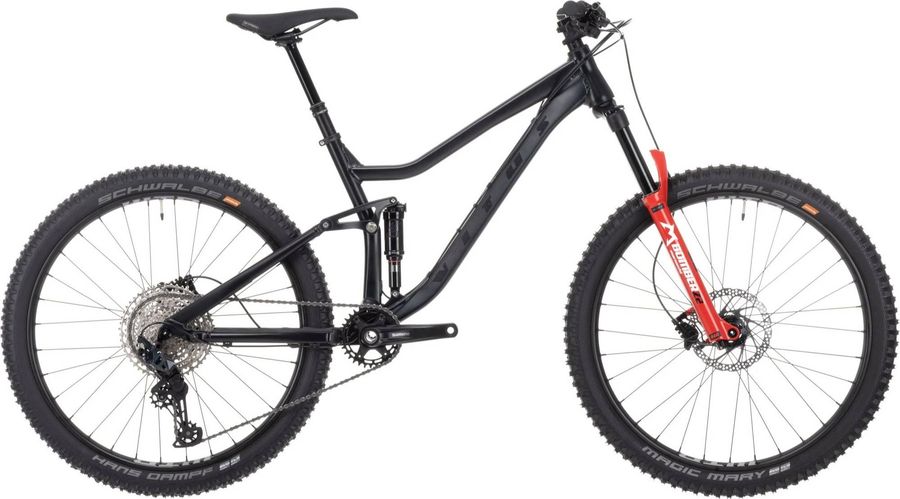

About the Vitus Mythique 27 VRX Mountain 2021
The Vitus Mythique 27 VRX Mountain 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,6 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Vitus lock on N/A
|
|---|
|
Steam
|
Nukeproof Neutron alloy 6061, 45mm reach, 0° rise 31.8mm
|
|---|---|
|
Saddle
|
Nukeproof Neutron N/A
|
|
Headset
|
Acros AZX-212 AZX-212-CO, sealed bearings, ZS44/28.6 – ZS56/40
|
|
Seatpost
|
Brand-X Ascend dropper Remote lever, 31.6mm, S 100mm drop/M 120mm drop/L,XL 150mm drop
|
|
Handlebar
|
Nukeproof Neutron V2 riser 6061 alloy, 25mm rise, 9° back sweep, 760mm wide S/M, 780mm wide L/XL 31.8mm
|
|
Discs
|
Shimano RT56, 180mm, 6 bolt
|
|
Brakes
|
Shimano Deore BR-MT501
|
|
Crankset
|
Shimano Deore M5100, 32t, 170mm
|
|---|---|
|
Shifter
|
Shimano Deore M6100 Rapidfire plus, 12 speed
|
|
Bottom bracket
|
Shimano BSA, N/A
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano Deore CS-M6100-12
HYPERGLIDE+
|
|
|
|
|
Rear derailleur
|
Shimano SLX RD-M7100
313 g
SGS
12s
|
|
|
|
|
Frame
|
Mythique Alloy 6061, Post mount disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle
|
|---|---|
|
Front suspension
|
Marzocchi Bomber Z2
|
|
Rear suspension
|
RockShox Monarch R
205 g
|
|
|
|
|
Rims
|
WTB ST i30 TCS 2.0, 27.5”, 32h TCS tubeless tape fitted
|
|---|---|
|
Tires
|
Schwalbe Magic Mary, Snakeskin, TL Easy, E-25, Addix soft, 27.5” x 2.35”
|
|
Spokes
|
Vitus N/A
|
|
Rear hub
|
Vitus KT H5ER-SH, Double sealed bearings, 32h, 6 bolt, 148mm x 12mm thru axle
|
|
Front hub
|
Vitus KT DHF112 Double sealed bearings, 32h, 6 bolt, 110mm x 15mm thru axle
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
433,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
76,82º
|
76,69º
|
76,55º
|
76,42º
|
|
c
Top tube length
|
569,77
|
591,24
|
612,71
|
639,18
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
66,54º
|
66,54º
|
66,54º
|
66,54º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
104,0
|
104,0
|
104,0
|
104,0
|
|
h
Wheelbase
|
1161,07
|
1182,83
|
1204,58
|
1231,33
|
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
22,3
|
22,29
|
22,29
|
22,28
|
|
k
Stack height
|
576,9
|
586,07
|
595,23
|
604,39
|
|
l
Reach
|
433,63
|
451,39
|
469,16
|
491,92
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
333,0
|
333,0
|
333,0
|
333,0
|
|
y
Front center
|
732,0
|
754,0
|
775,0
|
802,0
|
