Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,96 kg
Front travel
120mm

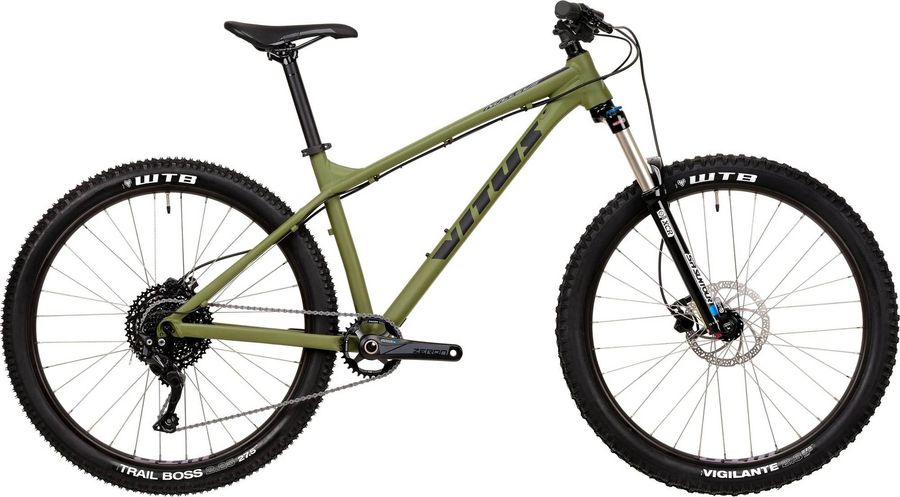

About the Vitus Nucleus 27 VRS 2020
The Vitus Nucleus 27 VRS 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 13,96 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
VITUS Tapered, single composite clamp, sticky rubber
|
|---|
|
Steam
|
Vitus 50mm N/A
|
|---|---|
|
Saddle
|
Nukeproof Neutron N/A
|
|
Headset
|
FSA NO.57B
|
|
Seatpost
|
VITUS 31.6mm x 400mm, zero offset
|
|
Handlebar
|
Nukeproof Neutron 25mm Rise, Width - S760mm, M760mm, L780mm, XL800mm, 31.8mm bar diameter
|
|
Brakes
|
Tektro HD-M291
|
|
Crankset
|
SR SUNTOUR ZERON, 32T, 170mm, GXP 73mm, 53mm BOOST chain line
|
|---|---|
|
Shifter
|
SHIMANO DEORE 10 speed SL-M6000-R, 10-SPEED RAPIDFIRE PLUS
|
|
Bottom bracket
|
SR SUNTOUR, Threaded 73mm BSA
|
|
Cassette
|
Sunrace 10-speed
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC Z9
|
|
Frame
|
Nucleus 27.5" hardtail frame, 6061-T6 Alloy construction
|
|---|---|
|
Front suspension
|
SR Suntour XCR 32
|
|
Rims
|
WTB ST i30 TCS 2.0, 27.5", 30mm inner diameter, 32 hole, Pinned Joint
|
|---|---|
|
Tires
|
WTB Vigilante, 2.3" x 27.5" Comp tire w/High Grip Compound
|
|
Spokes
|
14G STAINLESS DB BLACK BRASS NIPPLES
|
|
Rear hub
|
VITUS K68R, Standard spacing 135mm x10mm, 32H, 6-BOLT
|
|
Front hub
|
VITUS MS6F BOOST 15mm x 110mm, 32H, 6-BOLT
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
432,0
|
483,0
|
520,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
597,0
|
617,0
|
637,0
|
662,0
|
|
d
Head tube length
|
105,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
44,0
|
42,0
|
42,0
|
45,0
|
|
g
Trail
|
107,0
|
109,0
|
109,0
|
106,0
|
|
h
Wheelbase
|
1125,0
|
1143,0
|
1164,0
|
1193,0
|
|
i
Chainstay length
|
422,0
|
422,0
|
422,0
|
422,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
589,0
|
594,0
|
603,0
|
612,0
|
|
l
Reach
|
417,0
|
435,0
|
452,0
|
474,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
707,0
|
725,0
|
746,0
|
775,0
|
