Vitus Nucleus 27 VRW 2020

MTB Trail

Groupset

Shimano Altus

Frame material

Alloy

Wheel size

27,5"

Suspension type

Hardtail

Weight

14,3 kg

Front travel

120mm

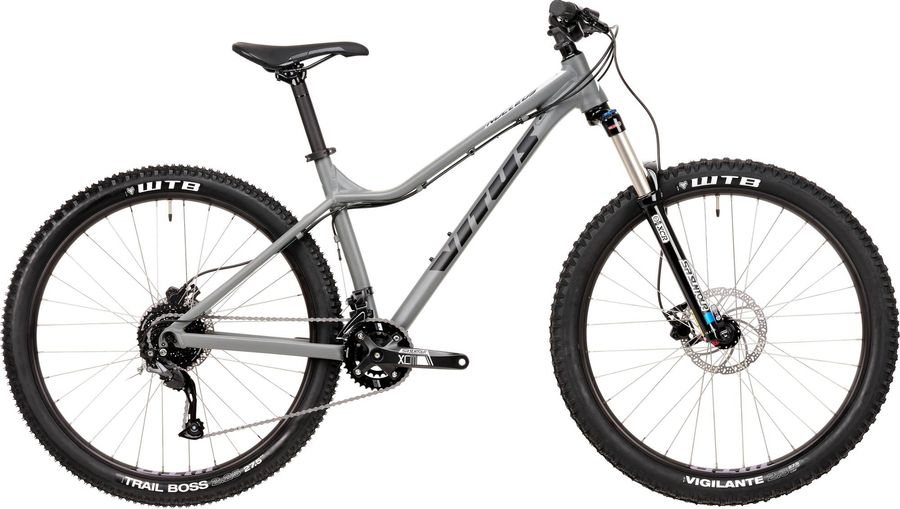

About the Vitus Nucleus 27 VRW 2020

The Vitus Nucleus 27 VRW 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 18 gears (2x9). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 14,3 kg.

Features

The Vitus Nucleus 27 VRW 2020 has 2 features listed below.

Boost 110 More info

Hydraulic disc brakes More info

Specifications

Components
Steam	Vitus 50mm
Saddle	Nukeproof Neutron
Headset	FSA, NO.57B
Seatpost	VITUS, 31.6mm x 400mm, zero offset
Handlebar	Nukeproof Neutron, 25mm Rise, Width - XS740mm, S740mm, M760mm, 31.8mm bar diameter
Brakes	Tektro HD-M291

Drivetrain
Crankset	SUNTOUR XCM, 36Tx22Tx175mm
Shifter	SHIMANO ALTUS, SL-M2000, 3-SPEED RAPIDFIRE PLUS
Bottom bracket	Square Taper Cartridge Bottom Bracket, 73mm / 113.5mm
Front derailleur	MICROSHIFT MD-462B, Down-SWING, DUAL-PULL, FOR REAR 9-SPEED, BAND TYPE(34.9MM)
Cassette	Shimano Altus CS-HG200-9 HG
Combination names 11-32T 11-34T 11-36T Compatible chain HG 9-speed Lock ring finish Phosphate coated Lock ring material Steel Model CS-HG200-9 Steel gear finish Phosphate coated Steel gear pieces 9 Type HG
Rear derailleur	Shimano Altus RD-M2000 SGS 9s
B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG 9-speed Lower pulley max 36T Lower pulley min 32T Model RD-M2000 P axle finish Zinc plated P axle material Steel pulley.screws_material Steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage SGS Speeds 9 Upper pulley max 12T Upper pulley min 11T Total capacity 45T
Chain	KMC Z9

Frameset
Frame	Nucleus 27.5" hardtail frame, 6061-T6 Alloy construction
Front suspension	SR Suntour XCR 32

Wheels
Rims	WTB ST i30, TCS 2.0, 27.5
Tires	WTB Vigilante F / Trailboss R, 2.3" x 27.5" Comp tire w/High Grip Compound F - 2.25" x 27.5" Comp R
Spokes	14G STAINLESS DB BLACK, BRASS NIPPLES
Rear hub	VITUS K68R, Standard spacing 135mm x10mm, 32H, 6-BOLT
Front hub	VITUS MS6F, BOOST 15mm x 110mm, 32H, 6-BOLT
