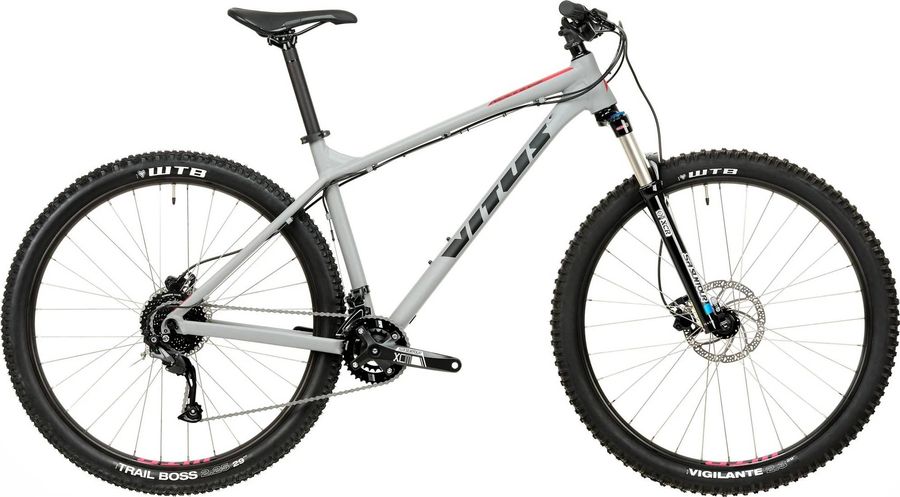

Vitus Nucleus 29 VR 2020

MTB Cross Country
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,56 kg
Front travel
100mm
Vitus Nucleus 29 VR 2020

About the Vitus Nucleus 29 VR 2020

The Vitus Nucleus 29 VR 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 18 gears (2x9). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 14,56 kg.

Features

The Vitus Nucleus 29 VR 2020 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VITUS Tapered, single composite clamp, sticky rubber
Components
Steam
Vitus 50mm N/A
Saddle
Nukeproof Neutron N/A
Headset
FSA NO.57B
Seatpost
VITUS 31.6mm x 400mm, zero offset
Handlebar
Nukeproof Neutron 25mm Rise, Width - S760mm, M760mm, L780mm, XL800mm, 31.8mm bar diameter
Brakes
Tektro HD-M291
Drivetrain
Crankset
SUNTOUR XCM, 36Tx22Tx175mm
Shifter
SHIMANO ALTUS SL-M2000, 9-SPEED RAPIDFIRE PLUS
Bottom bracket
Square Taper Cartridge Bottom Bracket, 73mm / 113.5mm
Front derailleur
MICROSHIFT MD-462B, Down-SWING, DUAL-PULL, FOR REAR 9-SPEED, BAND TYPE(34.9MM)
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Rear derailleur
Shimano Altus RD-M2000 SGS 9s
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M2000
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Chain
KMC Z9
Frameset
Frame
Nucleus 29" hardtail frame, N/A
Front suspension
SR Suntour XCR 32
Wheels
Rims
WTB ST i30 TCS 2.0, 29", 30mm inner diameter, 32 hole, Pinned Joint
Tires
WTB Vigilante, 2.3" x 29" Comp tire w/High Grip Compound
Spokes
14G STAINLESS DB BLACK BRASS NIPPLES
Rear hub
VITUS K68R, Standard spacing 135mm x10mm, 32H, 6-BOLT
Front hub
VITUS MS6F BOOST 15mm x 110mm, 32H, 6-BOLT

Geometry

Size MD LG XL
a
Seat tube length
432,0
483,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
618,0
638,0
663,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
46,0
46,0
46,0
g
Trail
109,0
109,0
109,0
h
Wheelbase
1149,0
1170,5
1196,5
i
Chainstay length
437,0
437,0
437,0
j
Bottom bracket drop
61,5
61,5
61,5
k
Stack height
611,0
621,0
630,0
l
Reach
430,5
448,0
470,0
m
Standover height
-
-
-
x
Bottom bracket height
313,0
313,0
313,0
y
Front center
719,0
740,0
766,0
